Multi-media Module Receiver Assembly Communication Stop Mode: Procedure

1. Disconnect the cable from the negative (-) auxiliary battery terminal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the multi-media module receiver assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   N68-1 (CANH) - N68-2 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

   TEXT IN ILLUSTRATION

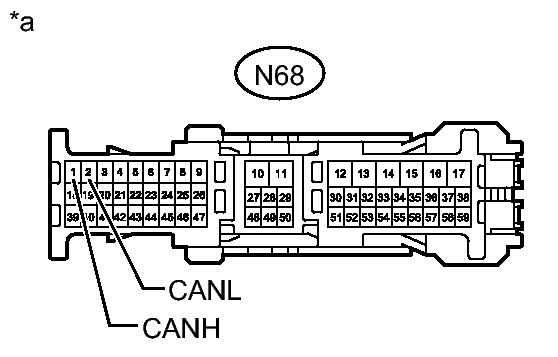

   *a	Front view of wire harness connector (to Multi-media Module Receiver Assembly)

NG → REPAIR OR REPLACE MULTI-MEDIA MODULE RECEIVER ASSEMBLY CAN BRANCH WIRE OR CONNECTOR (CANH, CANL)

OK: Go to next step

1. Connect the cable to the negative (-) auxiliary battery terminal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   When connecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [03/2012 - ] .

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   N68-17 (+B1) - Body ground	Always	11 to 14 V
   N68-16 (ACC1) - Body ground	Power switch on (ACC)	11 to 14 V
   N68-15 (IG) - Body ground	Power switch on (IG)	11 to 14 V

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   N68-12 (GND1) - Body ground	Always	Below 1 Ω

   TEXT IN ILLUSTRATION

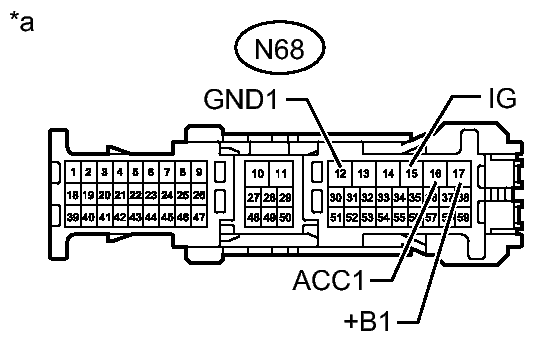

   *a	Front view of wire harness connector (to Multi-media Module Receiver Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   3
