DCM Data Signal Circuit between Navigation ECU and DCM: Procedure

1. Disconnect the H36 DCM (telematics transceiver) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the H35 display and navigation module display connector.
3. Measure the resistance according to the value(s) in the table below.
   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   H36-1-1 (USB-) - H35-1-1 (USB-)	Always	Below 1 Ω
   H36-1-2 (USB+) - H35-1-2 (USB+)	Always	Below 1 Ω
   H36-1-3 (USBS) - H35-1-3 (USBS)	Always	Below 1 Ω
   H36-2 (USBG) - H35-2 (USBG)	Always	Below 1 Ω
   H36-3 (VOT+) - H35-7 (VOR+)	Always	Below 1 Ω
   H36-4 (USBV) - H35-4 (USBV)	Always	Below 1 Ω
   H36-5 (VOT-) - H35-6 (VOR-)	Always	Below 1 Ω
   H36-6 (VOR-) - H35-5 (VOT-)	Always	Below 1 Ω
   H36-7 (VOR+) - H35-3 (VOT+)	Always	Below 1 Ω
   H36-1-1 (USB-) - Body ground	Always	10 kΩ or higher
   H36-1-2 (USB+) - Body ground	Always	10 kΩ or higher
   H36-1-3 (USBS) - Body ground	Always	10 kΩ or higher
   H36-2 (USBG) - Body ground	Always	10 kΩ or higher
   H36-3 (VOT+) - Body ground	Always	10 kΩ or higher
   H36-4 (USBV) - Body ground	Always	10 kΩ or higher
   H36-5 (VOT-) - Body ground	Always	10 kΩ or higher
   H36-6 (VOR-) - Body ground	Always	10 kΩ or higher
   H36-7 (VOR+) - Body ground	Always	10 kΩ or higher

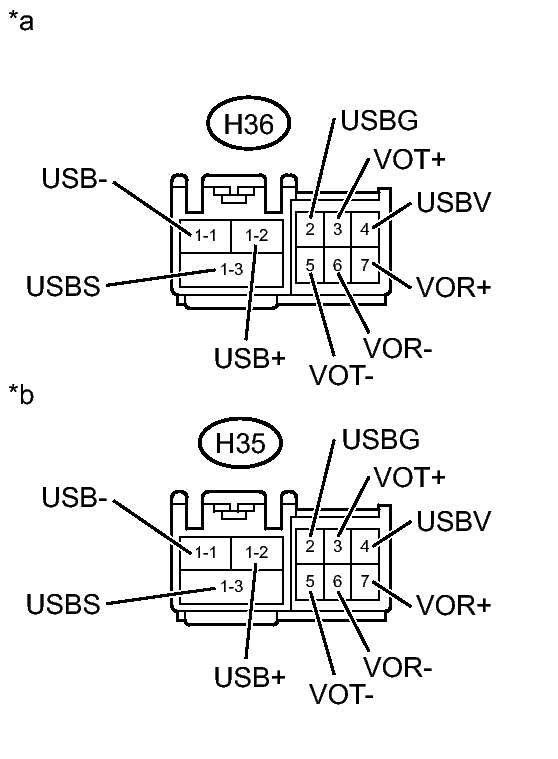

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to DCM [Telematics Transceiver])
   *b	Front view of wire harness connector (to Display and Navigation Module Display)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   2
