Multi Information Display, Multi-Terrain Monitor (w/o LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) (w/o LEXUS Navigation System): Notes

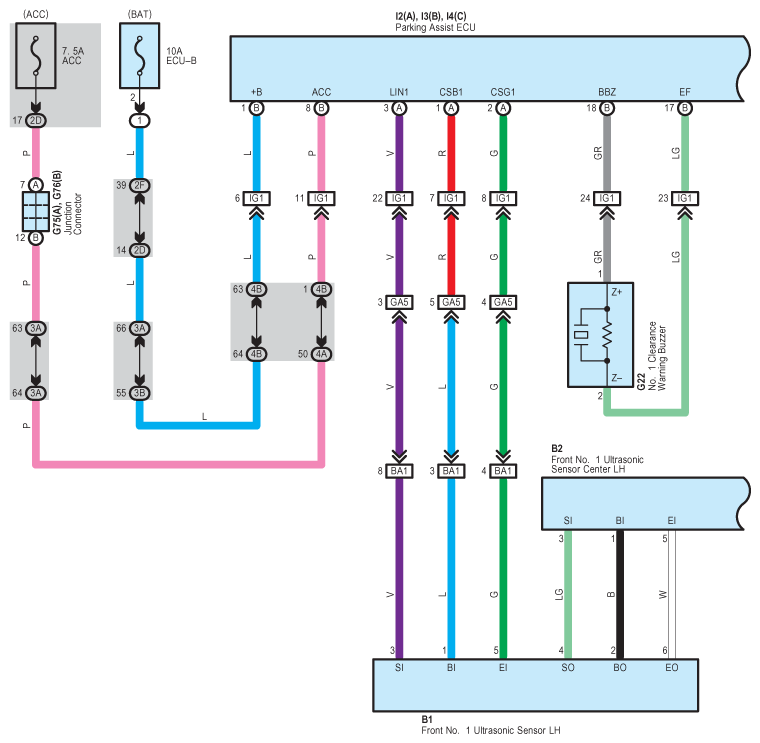

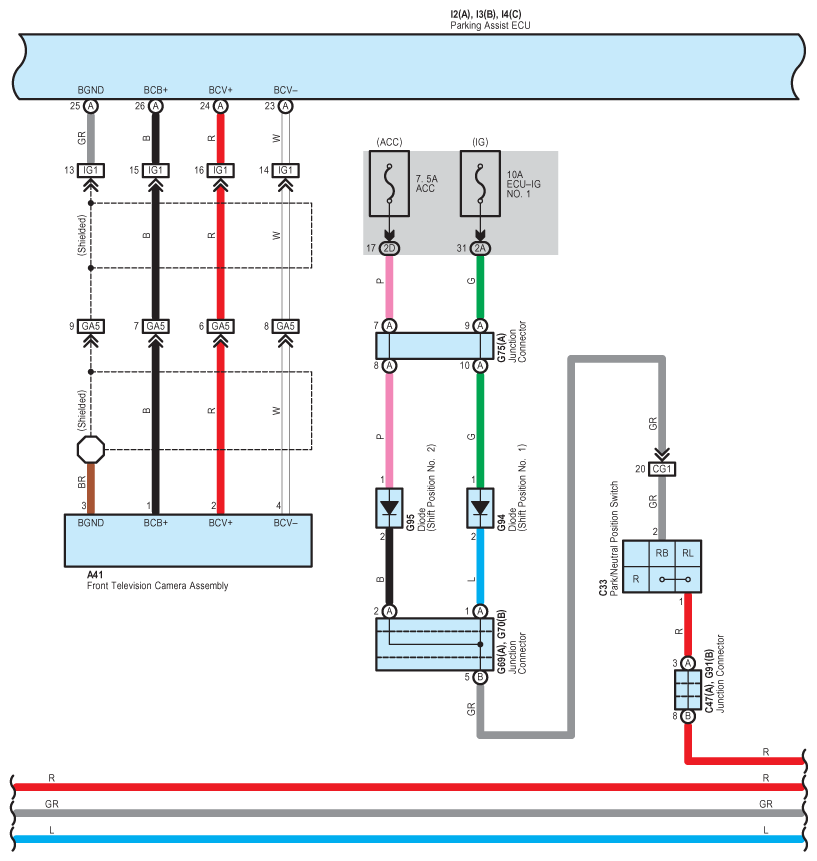

Fig 1: Multi Information Display, Multi-Terrain Monitor And Parking Assist - Wiring Diagram (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

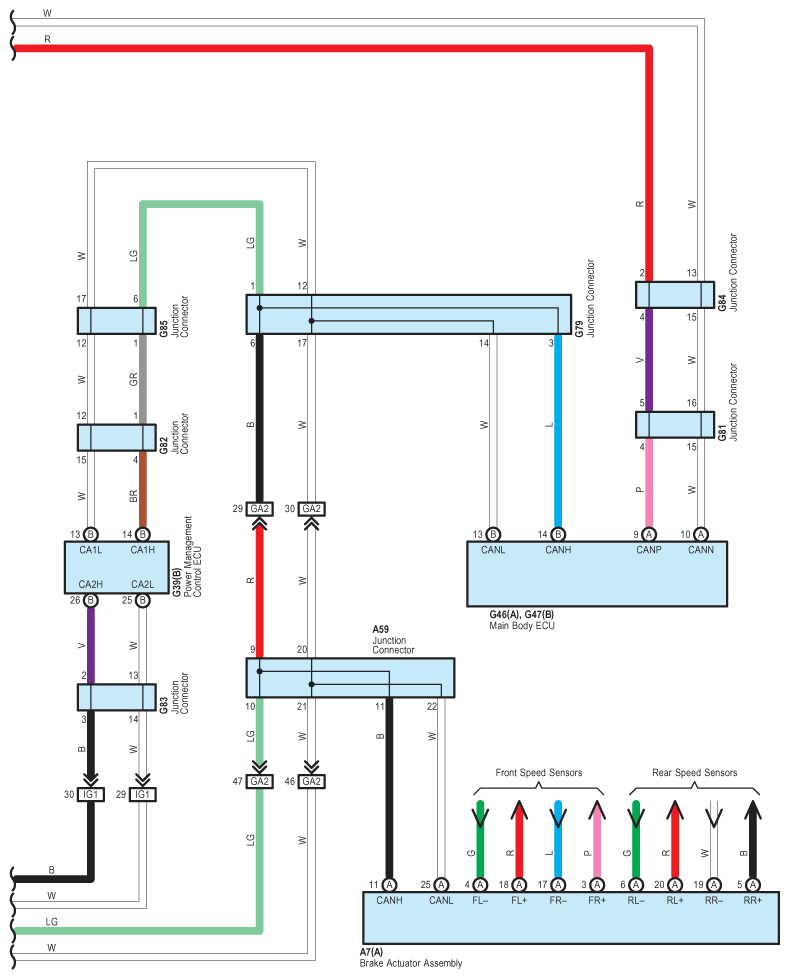

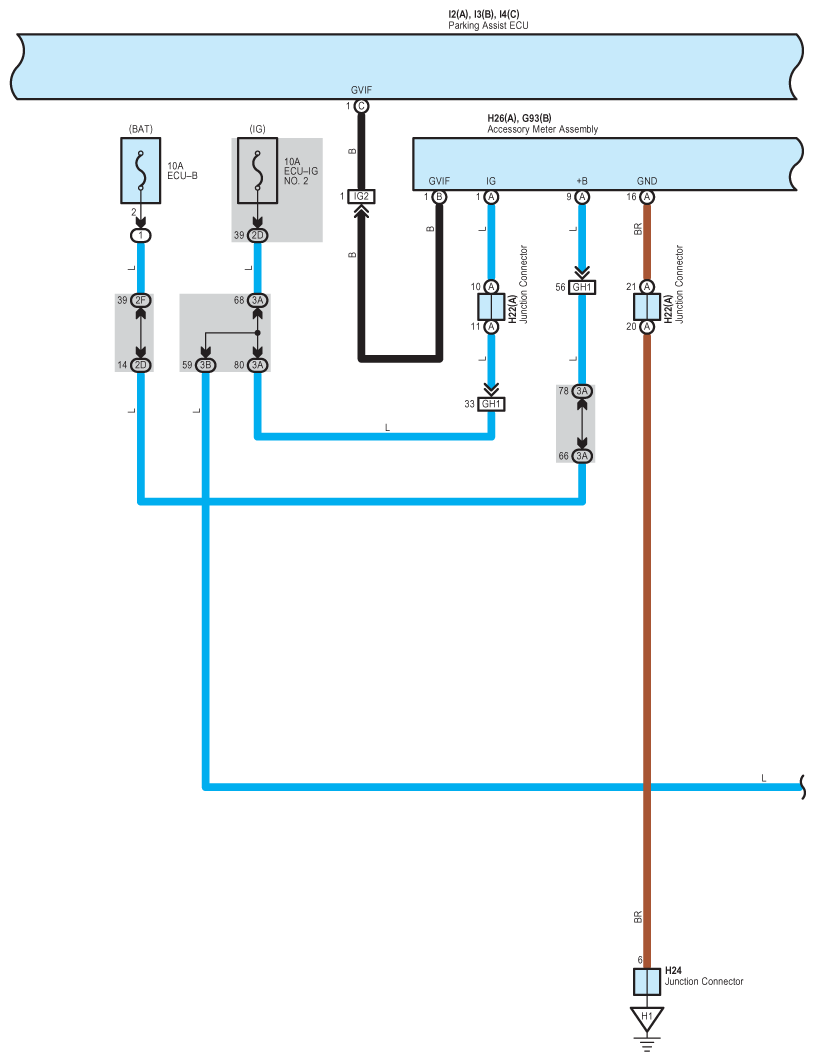

Fig 2: Multi Information Display, Multi-Terrain Monitor And Parking Assist - Wiring Diagram (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

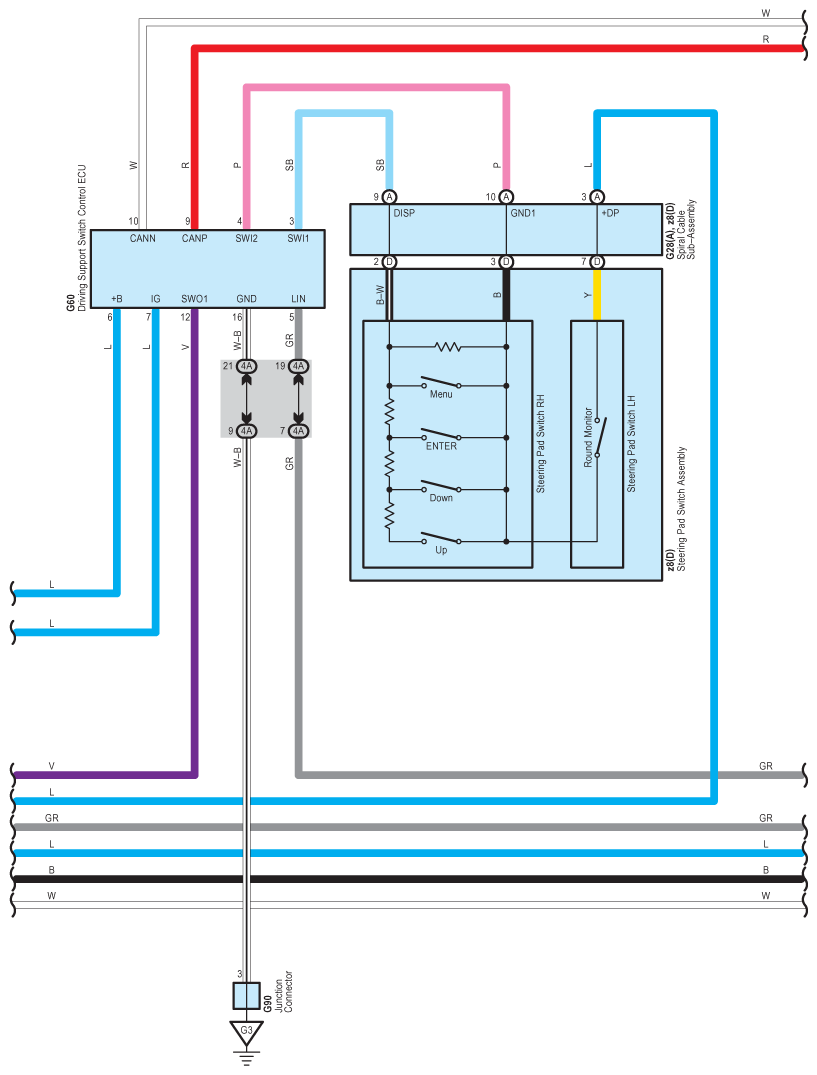

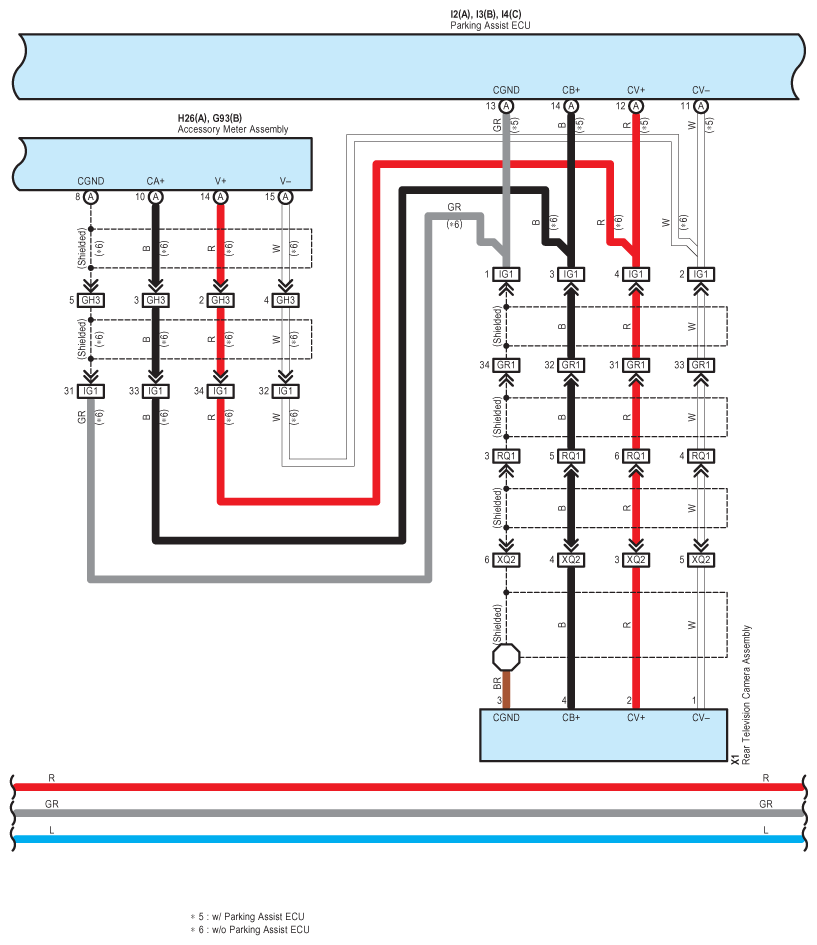

Fig 3: Multi Information Display, Multi-Terrain Monitor And Parking Assist - Wiring Diagram (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

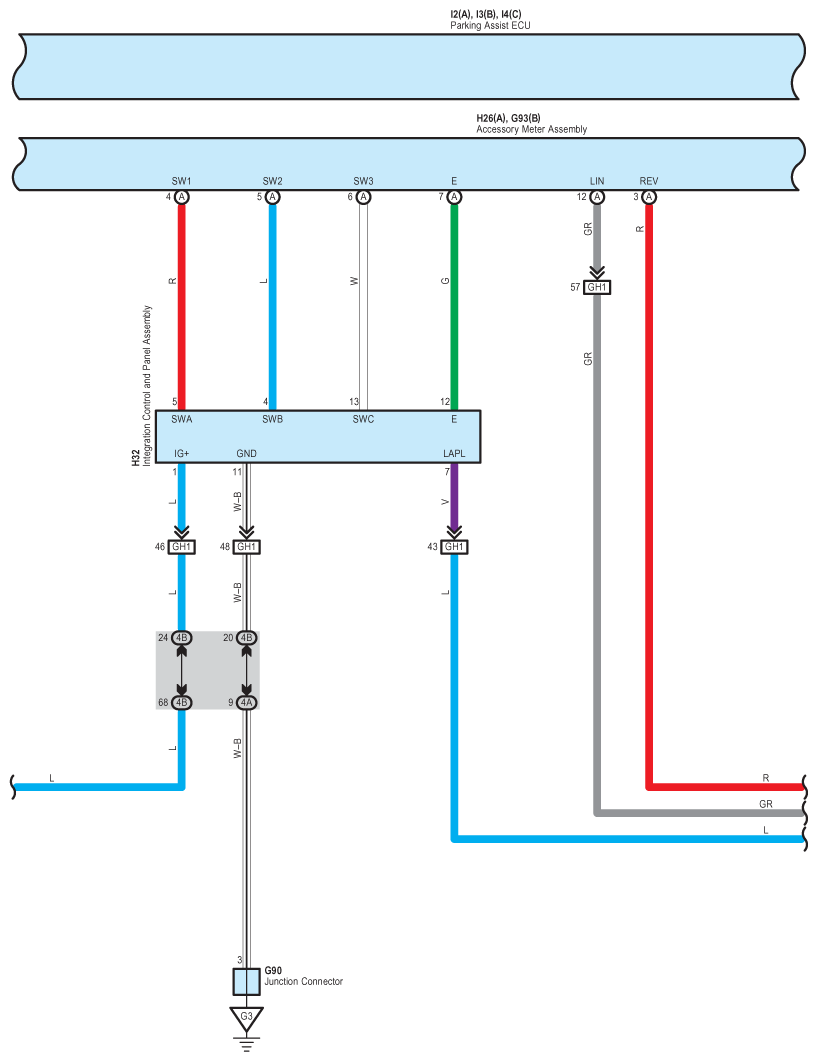

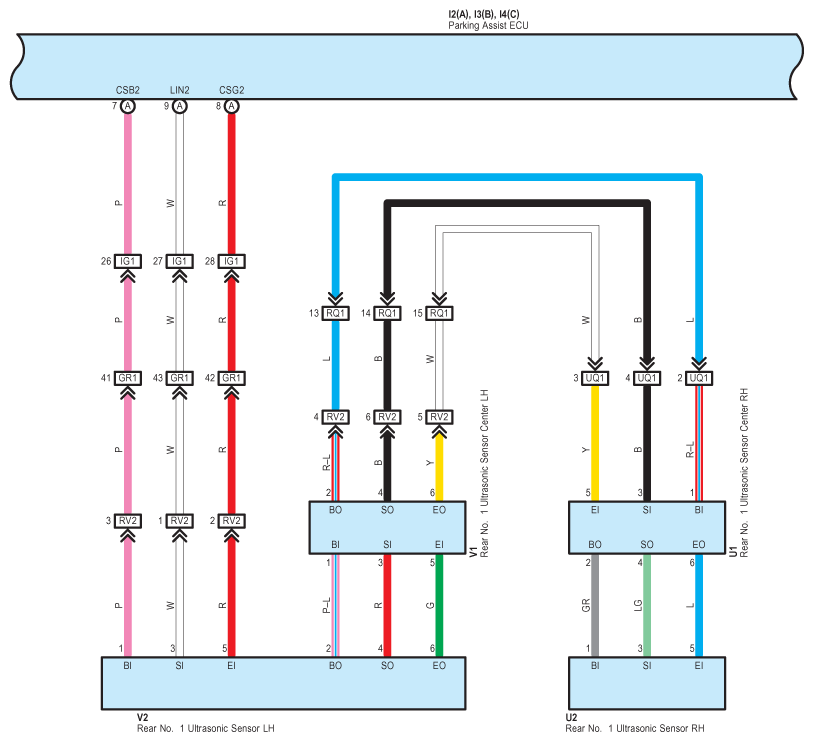

Fig 4: Multi Information Display, Multi-Terrain Monitor And Parking Assist - Wiring Diagram (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

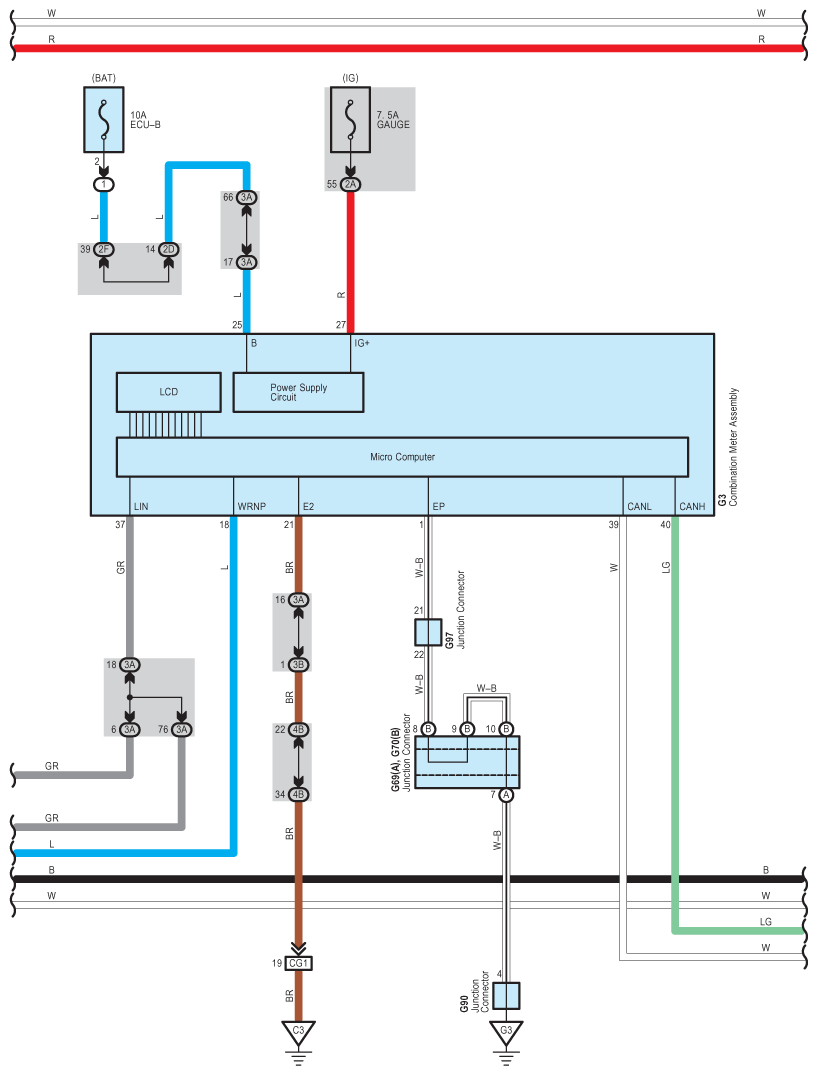

Fig 5: Multi Information Display, Multi-Terrain Monitor And Parking Assist - Wiring Diagram (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

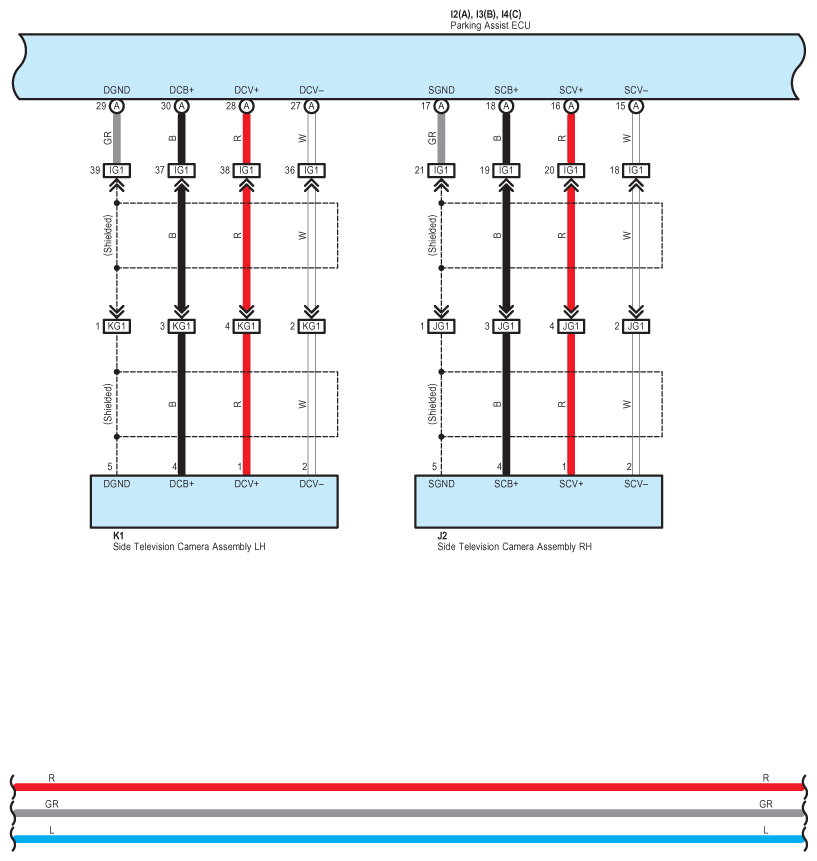

Fig 6: Multi Information Display, Multi-Terrain Monitor And Parking Assist - Wiring Diagram (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

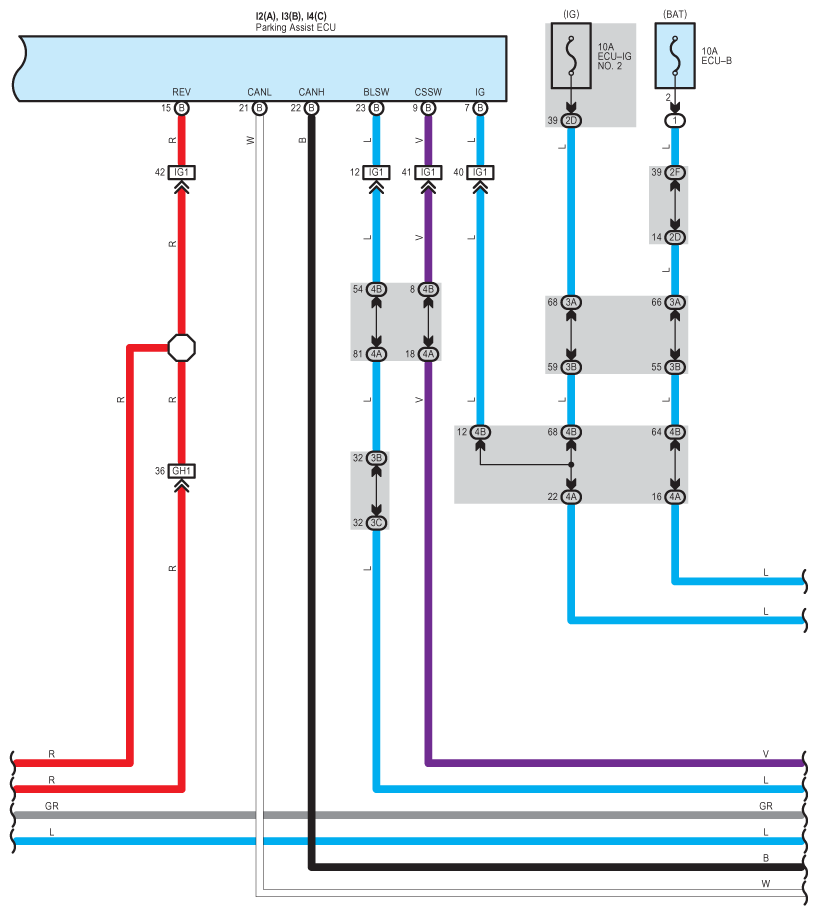

Fig 7: Multi Information Display, Multi-Terrain Monitor And Parking Assist - Wiring Diagram (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

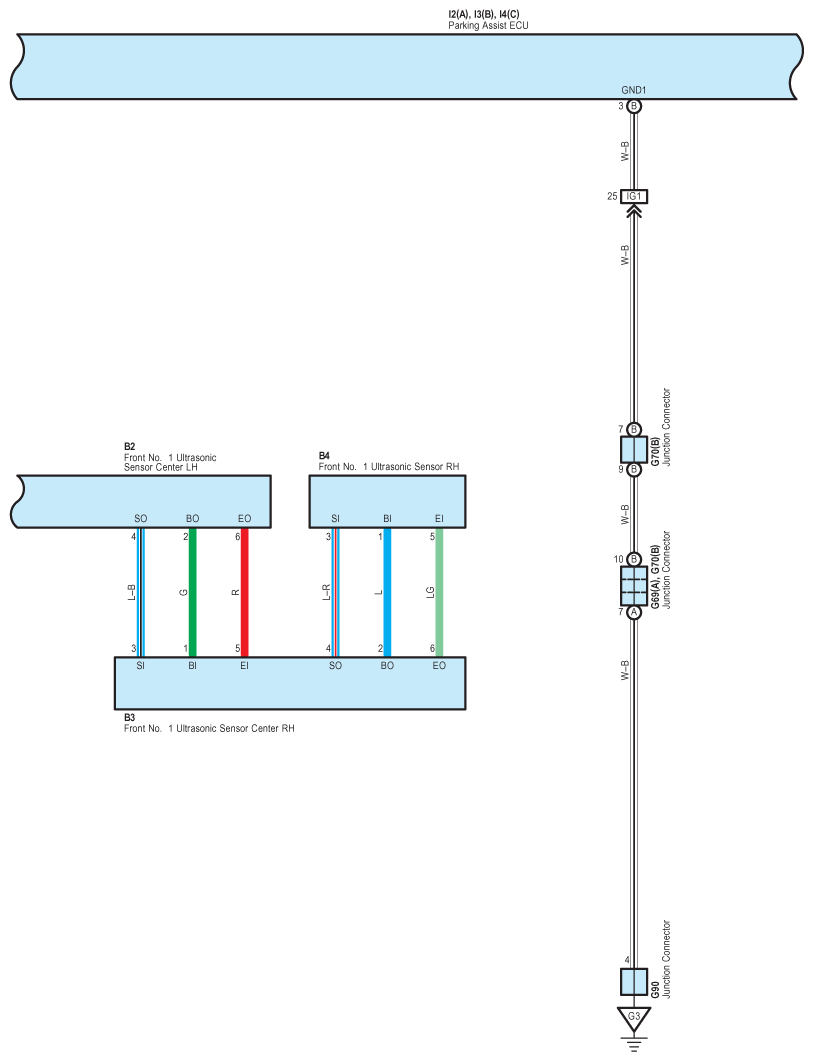

Fig 8: Multi Information Display, Multi-Terrain Monitor And Parking Assist - Wiring Diagram (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Multi Information Display, Multi-Terrain Monitor And Parking Assist - Wiring Diagram (9 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Multi Information Display, Multi-Terrain Monitor And Parking Assist - Wiring Diagram (10 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Multi Information Display, Multi-Terrain Monitor And Parking Assist - Wiring Diagram (11 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Multi Information Display, Multi-Terrain Monitor And Parking Assist - Wiring Diagram (12 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
