Headlight Cleaner Switch Circuit: Wiring Diagram

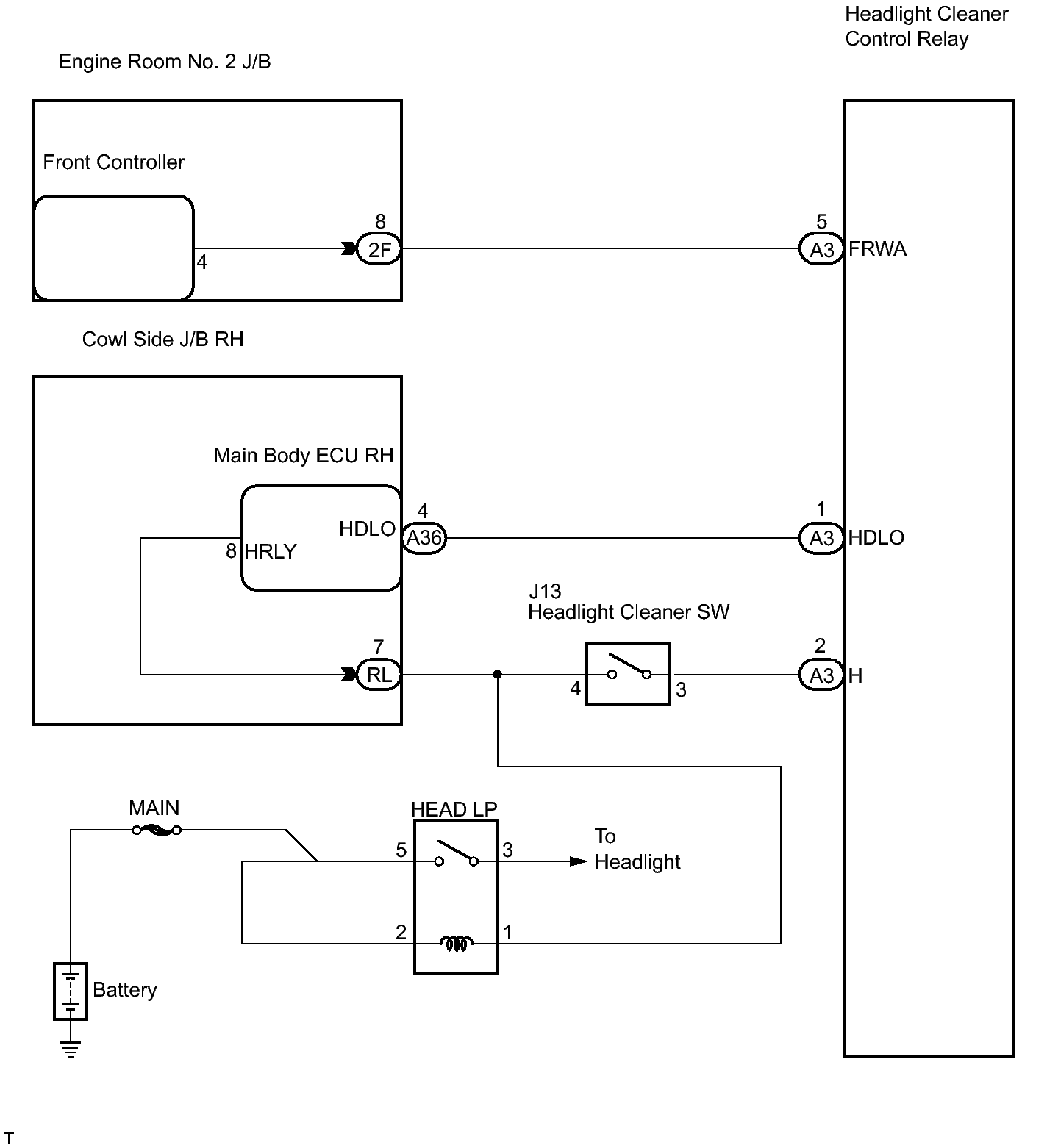

Fig 1: Headlight Cleaner Switch Circuit Diagram
GTY394816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
