Wiper and Washer Switch Circuit: Wiring Diagram

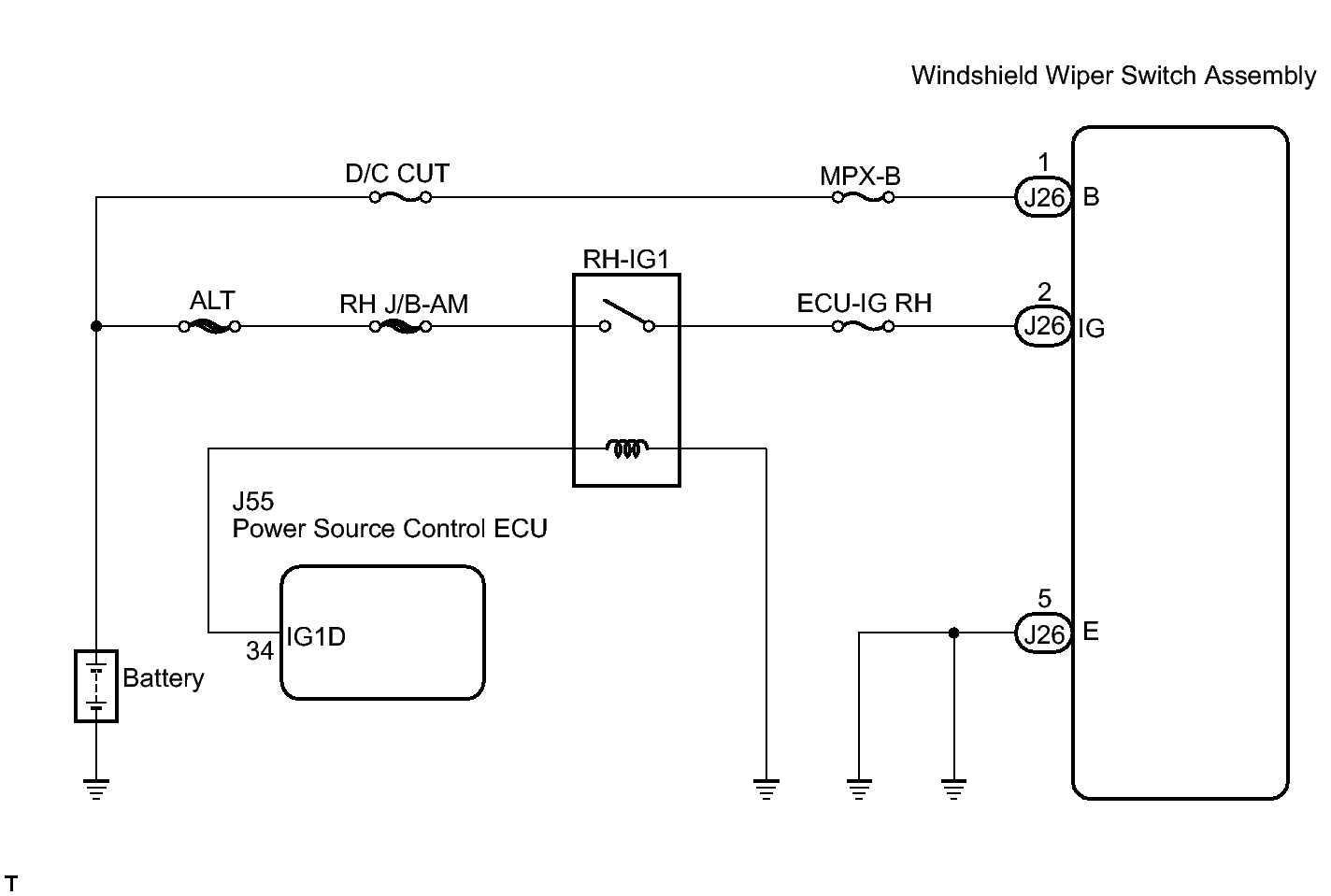

Fig 1: Wiper and Washer Switch Circuit Diagram
GTY151003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
