Steering
>>
Steering Column
>>
Power Tilt & Telescopic Steering Column (Diagnostic Codes & Circuit Tests)
>>
Power Tilt And Power Telescopic Steering Column System
>>
DTC B2602: Key Unlock Warning Switch Circuit Malfunction; DTC B2606: Key Code Confirm Signal Malfunction
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC B2602: Key Unlock Warning Switch Circuit Malfunction; DTC B2606: Key Code Confirm Signal Malfunction: Wiring Diagram

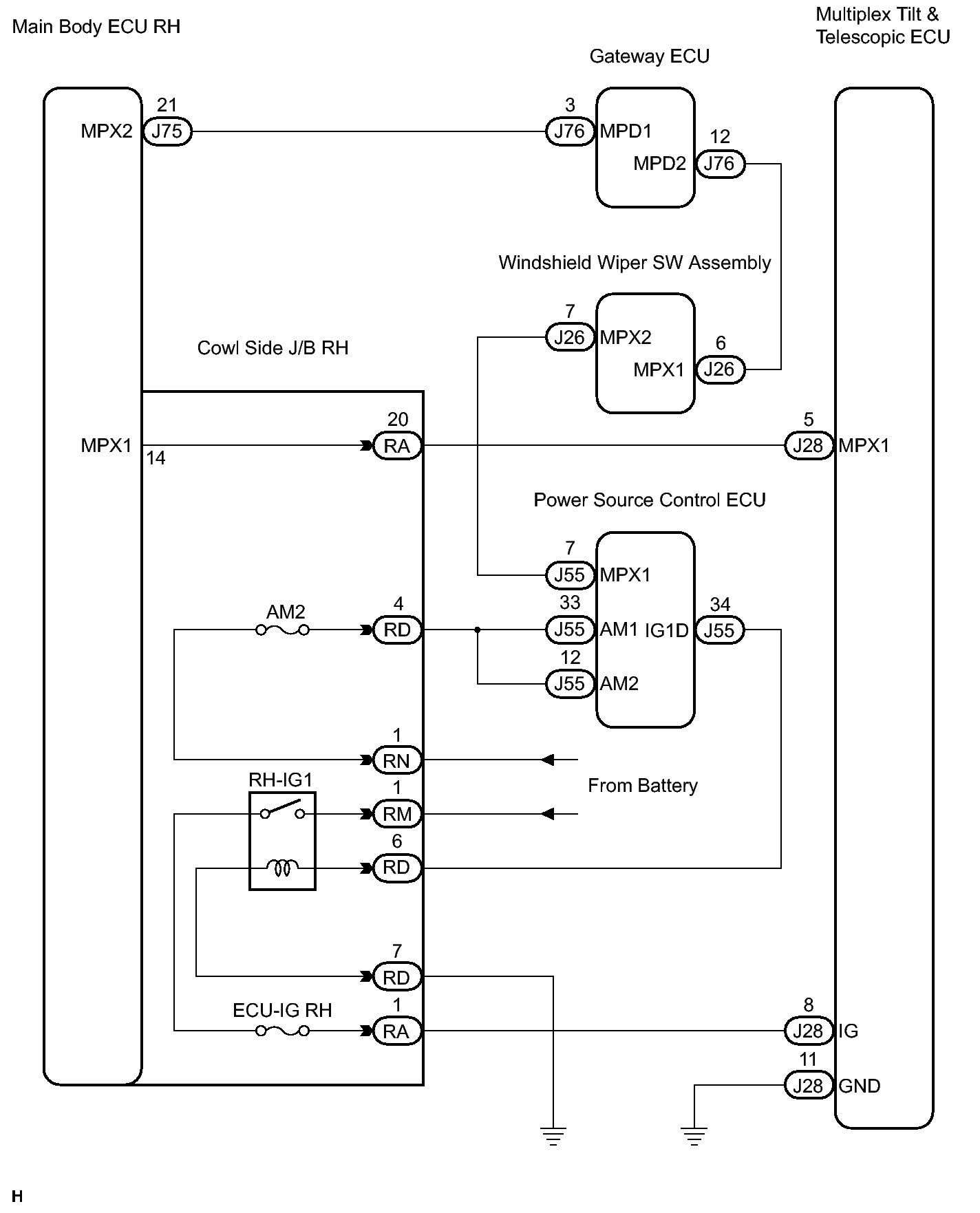

Fig 1: Multiplex Tilt & Telescopic ECU Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
