Touch Sensor Circuit: Wiring Diagram

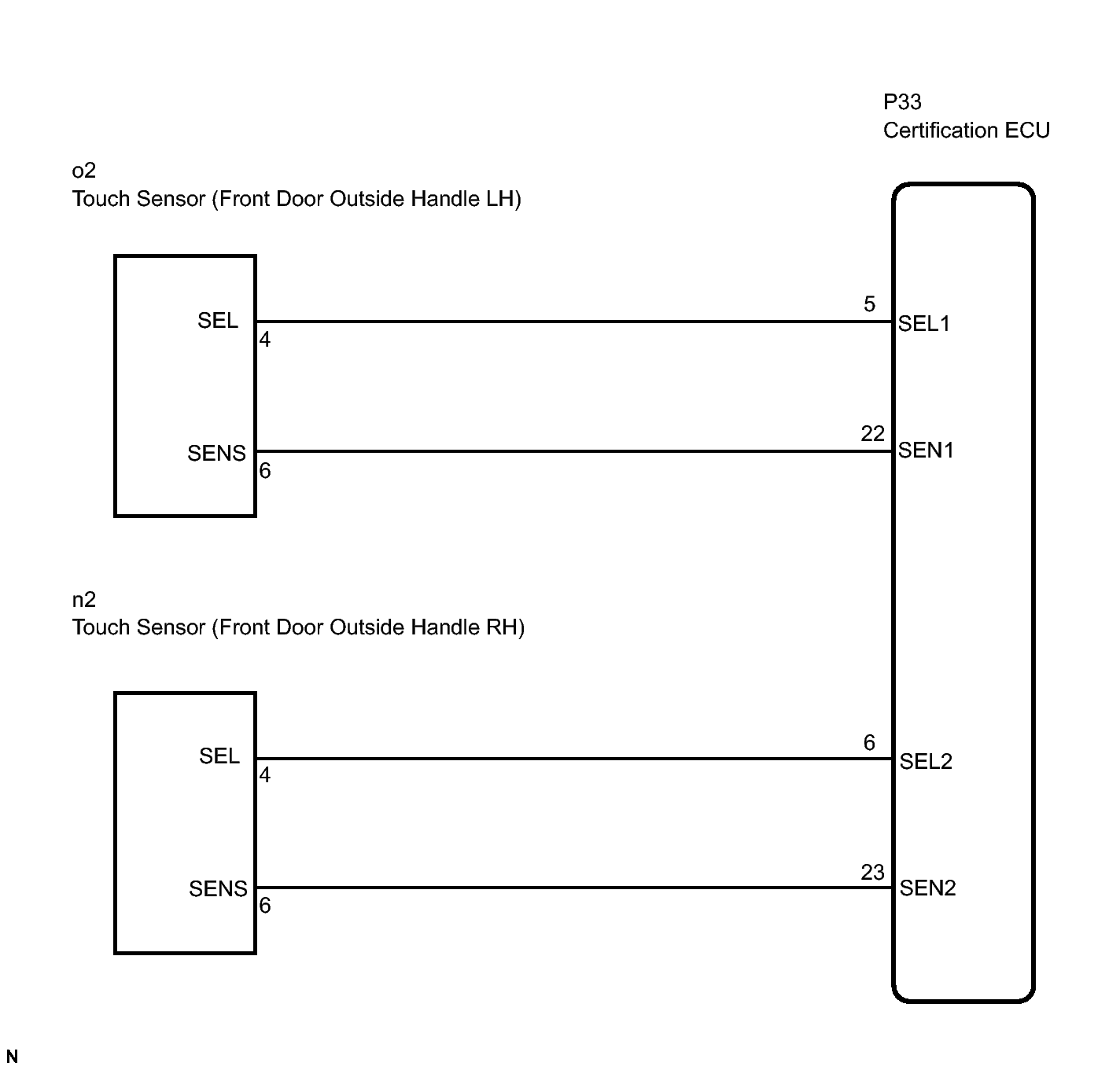

Fig 1: Touch Sensor Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
