Multi-media Module Receiver Assembly Communication Stop Mode: Procedure

1. Disconnect the cable from the negative (-) battery terminal.
2. Disconnect the J125 multi-media module receiver assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

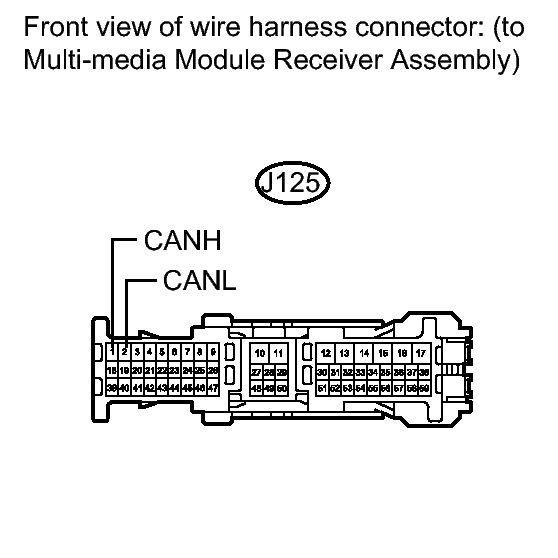

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J125-1 (CANH) - J125-2 (CANL)	Cable disconnected from negative (-) battery terminal	54 to 69 Ω

NG → REPAIR OR REPLACE CAN BUS BRANCH LINE OR CONNECTOR (MULTI-MEDIA MODULE RECEIVER ASSEMBLY)

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J125-12 (GND1) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω

2. Connect the cable to the negative (-) battery terminal.

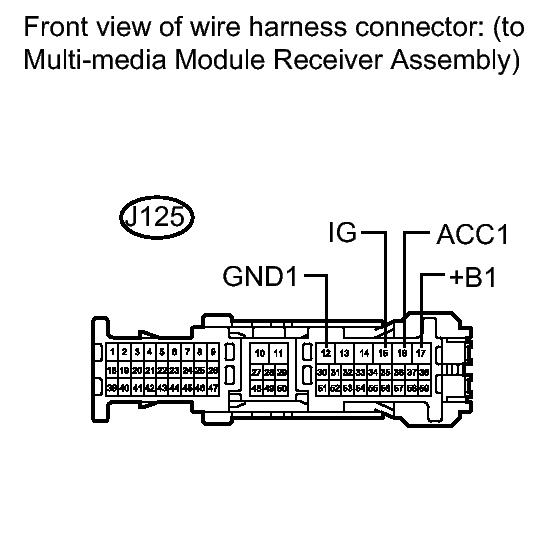

3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   J125-16 (ACC1) - Body ground	Engine switch on (ACC)	11 to 14 V
   J125-17 (+B1) - Body ground	Engine switch off	11 to 14 V
   J125-15 (IG) - Body ground	Engine switch on (IG)	11 to 14 V

   Result

   Result	Proceed to
   OK (w/ Navigation system)	A
   OK (w/o Navigation system with multi-display)	B
   NG	C

B → See step   4

C → REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

A → See step   3
