DCM Data Signal Circuit between Navigation ECU and DCM: Wiring Diagram

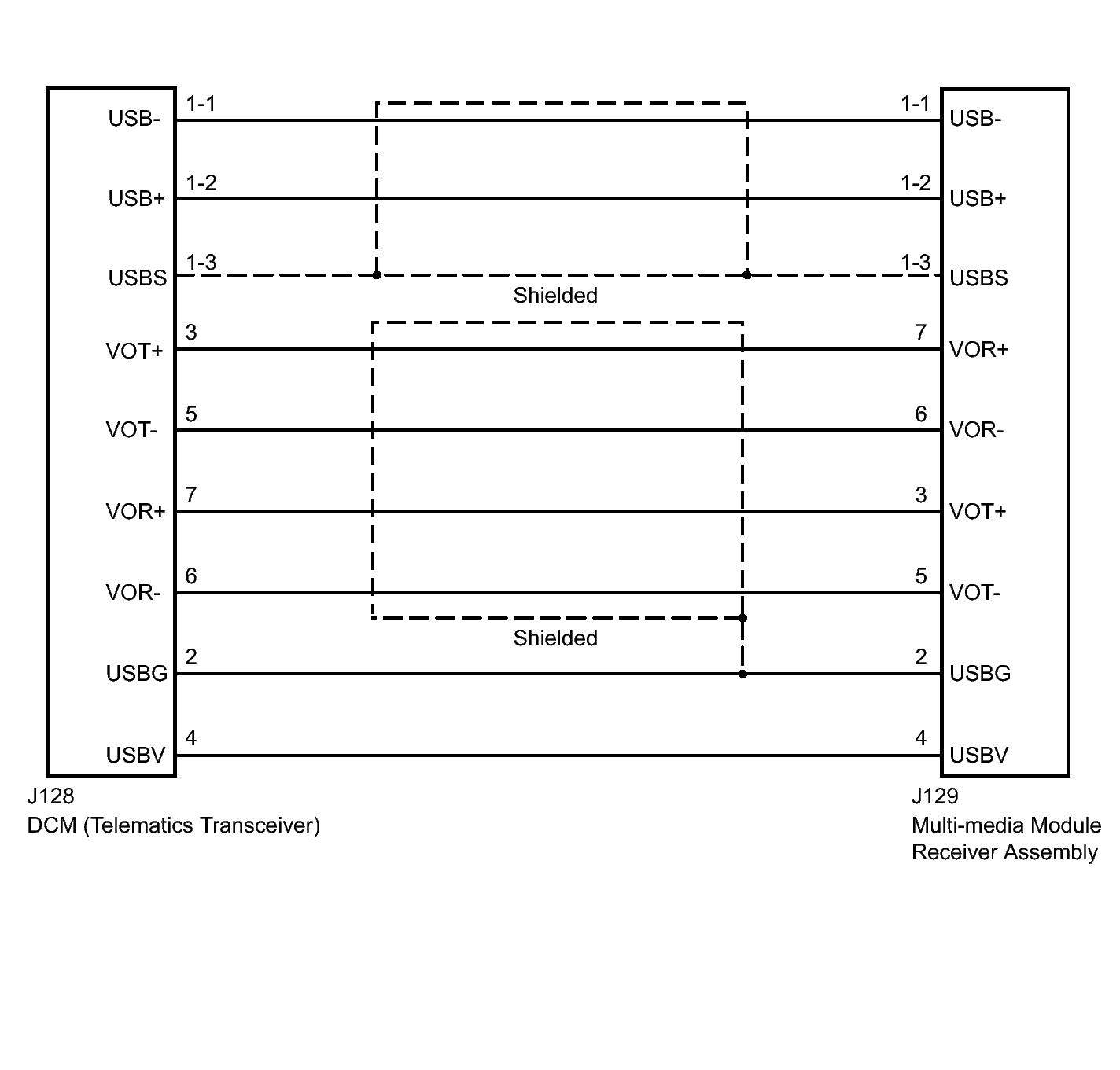

Fig 1: DCM Data Signal Circuit Between Navigation ECU And DCM Wiring Diagram
GTY396798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
