IS 350 Base, AWD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Infotainment
>>
Navigation System (Diagnostic Codes & Symptom Tests)
>>
Navigation System
>>
Circuit Tests
>>
Data Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Data Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter: Wiring Diagram

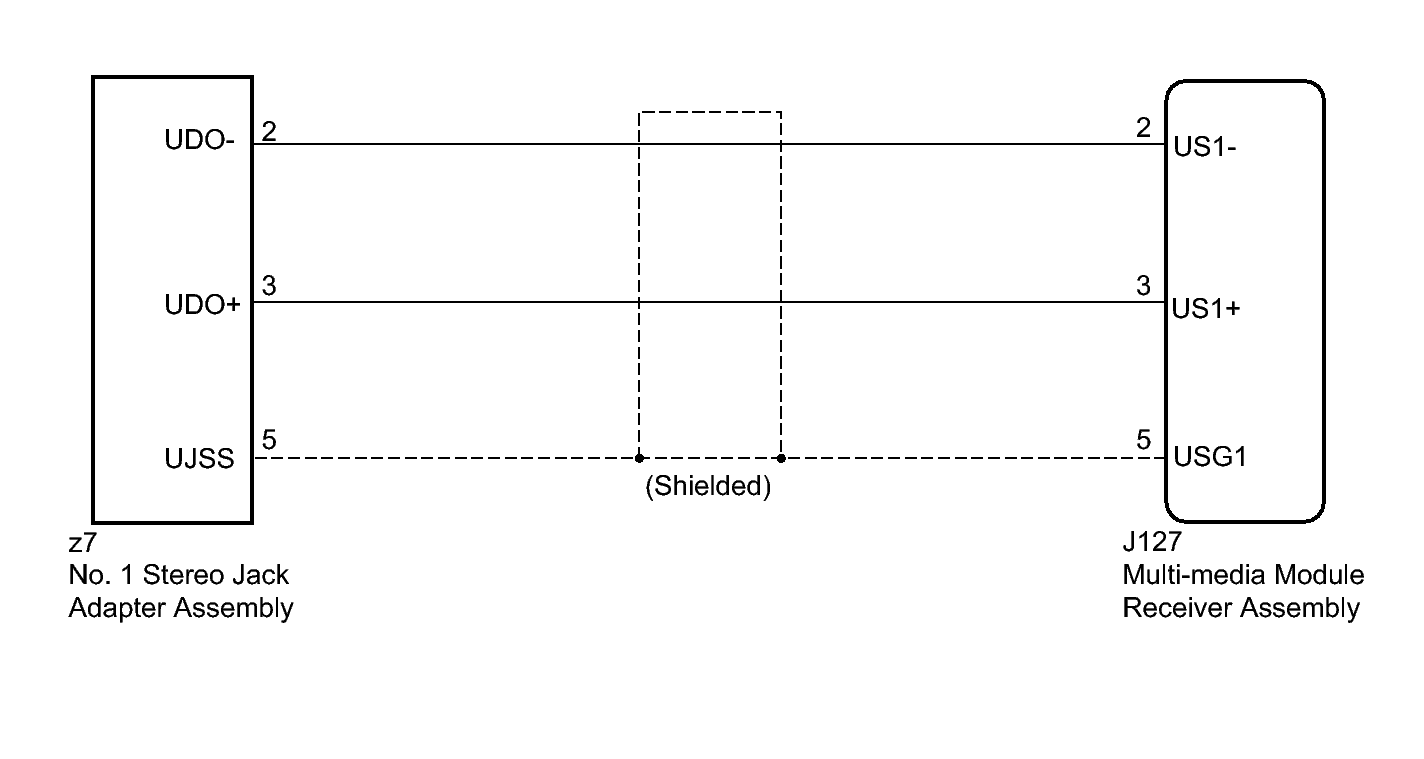

Fig 1: Data Signal Circuit Between Navigation Receiver Assembly And Stereo Jack Adapter Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
