Visual Mute Signal Circuit between Navigation Receiver Assembly and Multi-display: Wiring Diagram

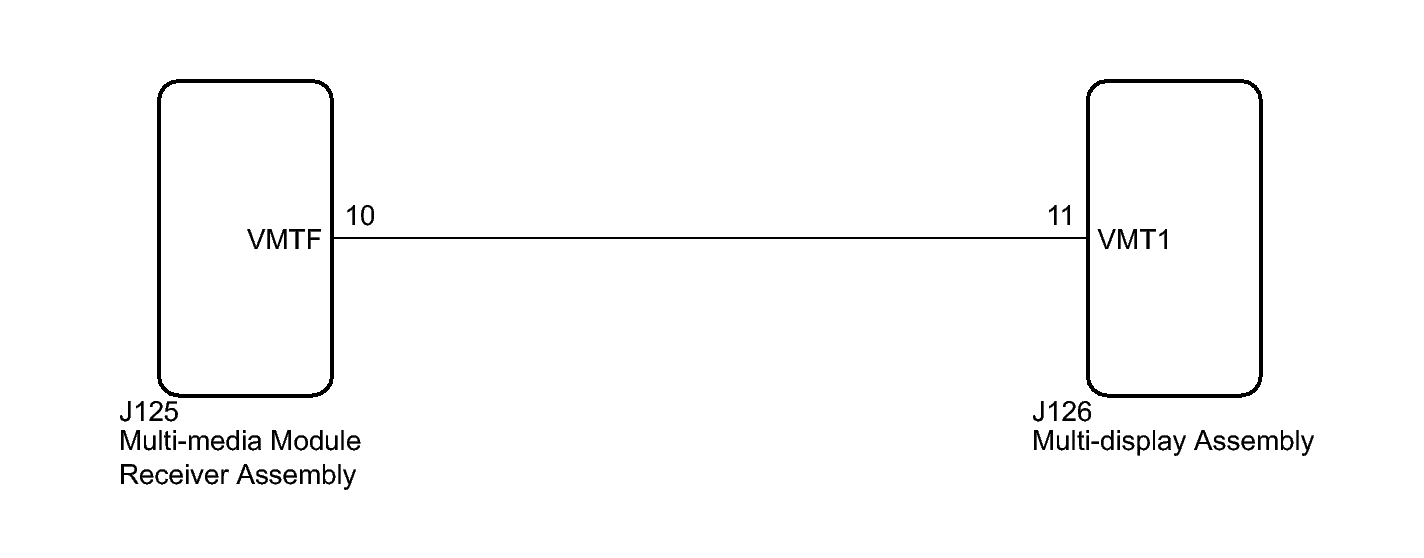

Fig 1: Visual Mute Signal Circuit Between Radio Receiver And Multi-Display Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
