FRONT POWER SEAT CONTROL SYSTEM (w/o Seat Position Memory System)
>>
System Diagram [08/2012 - ]
>>
System Diagram [08/2012 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [08/2012 - ]

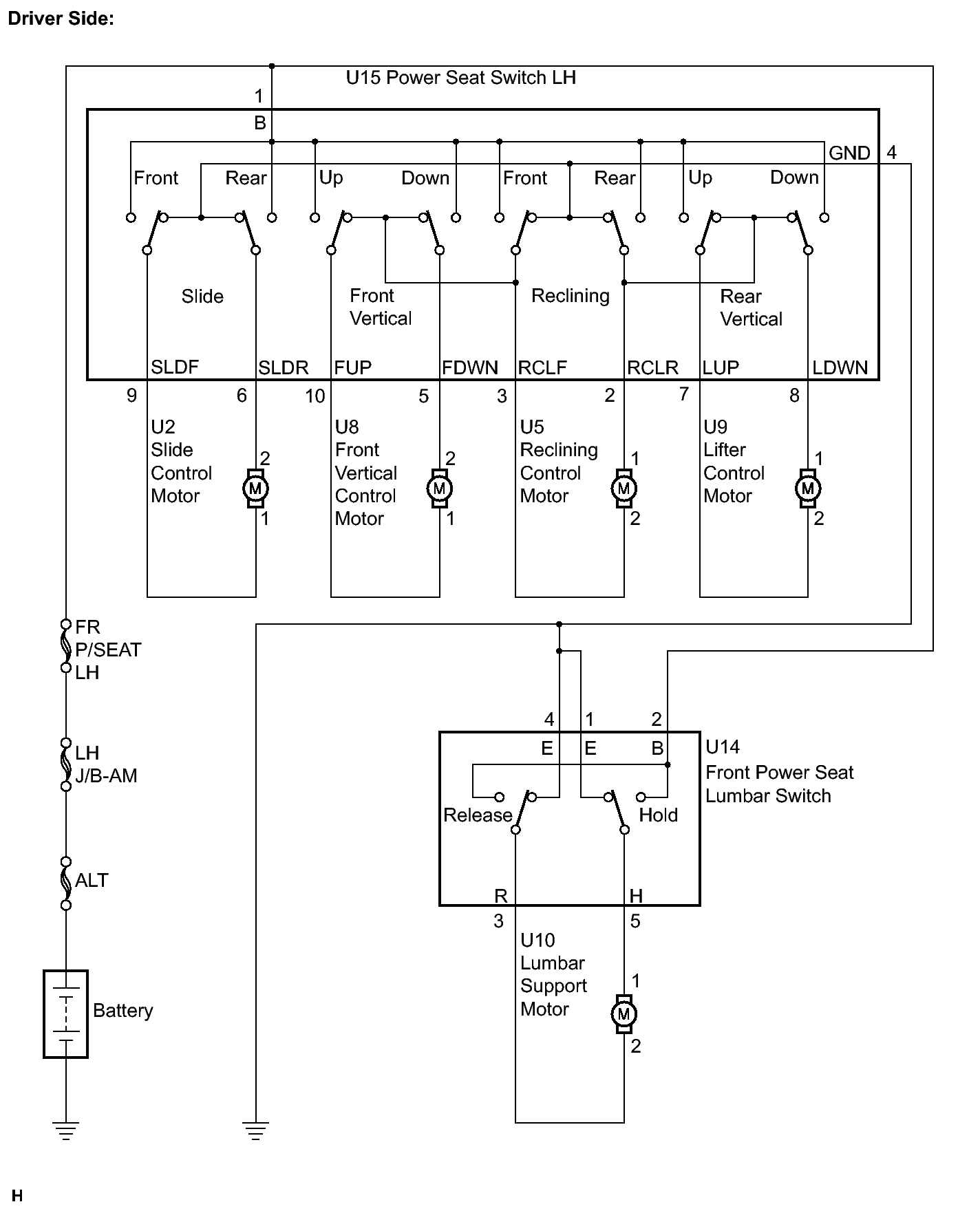

Fig 1: Front Power Seat Control System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

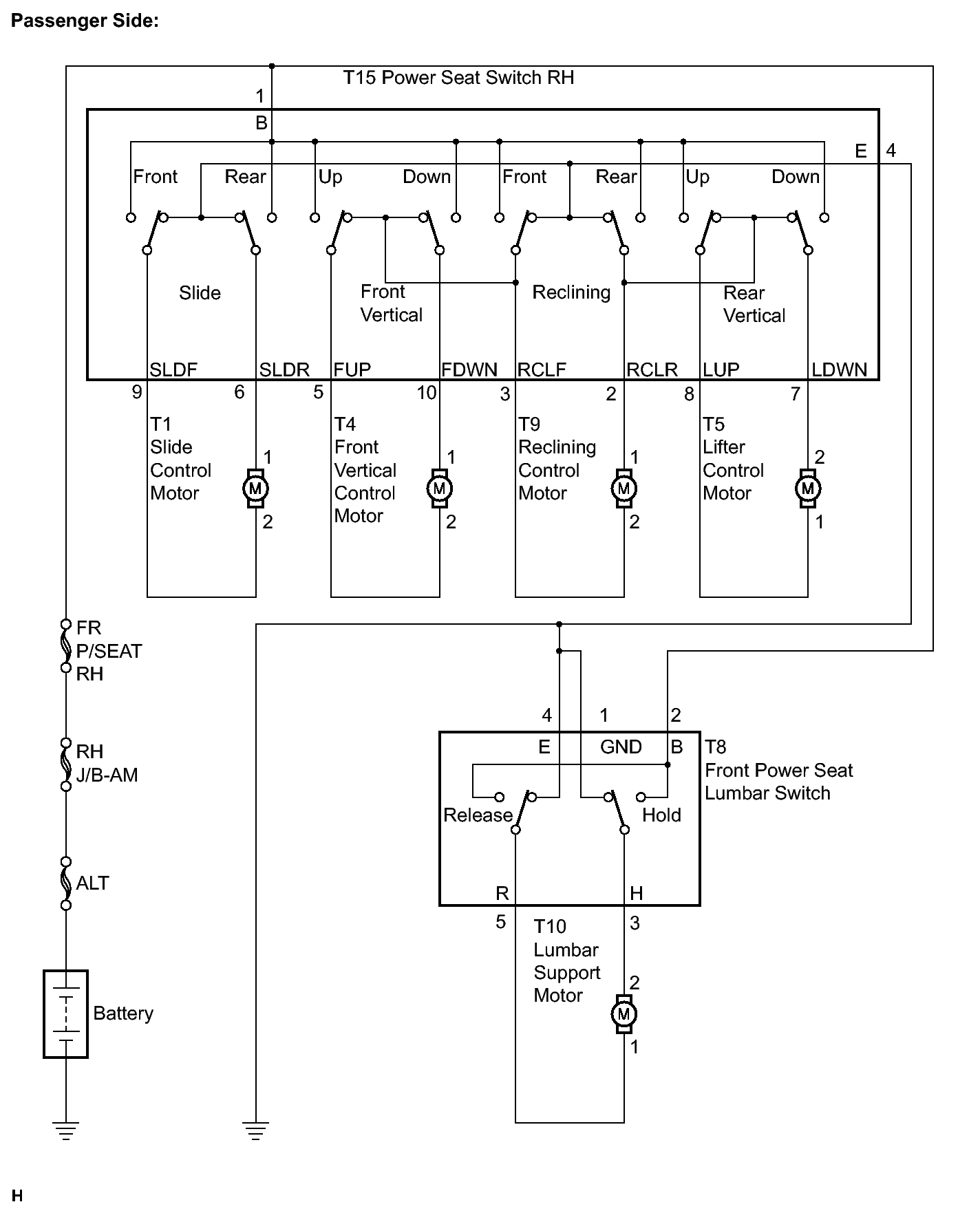

Fig 2: Front Power Seat Control System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
