Headlight Cleaner Motor and Relay Circuit: Wiring Diagram

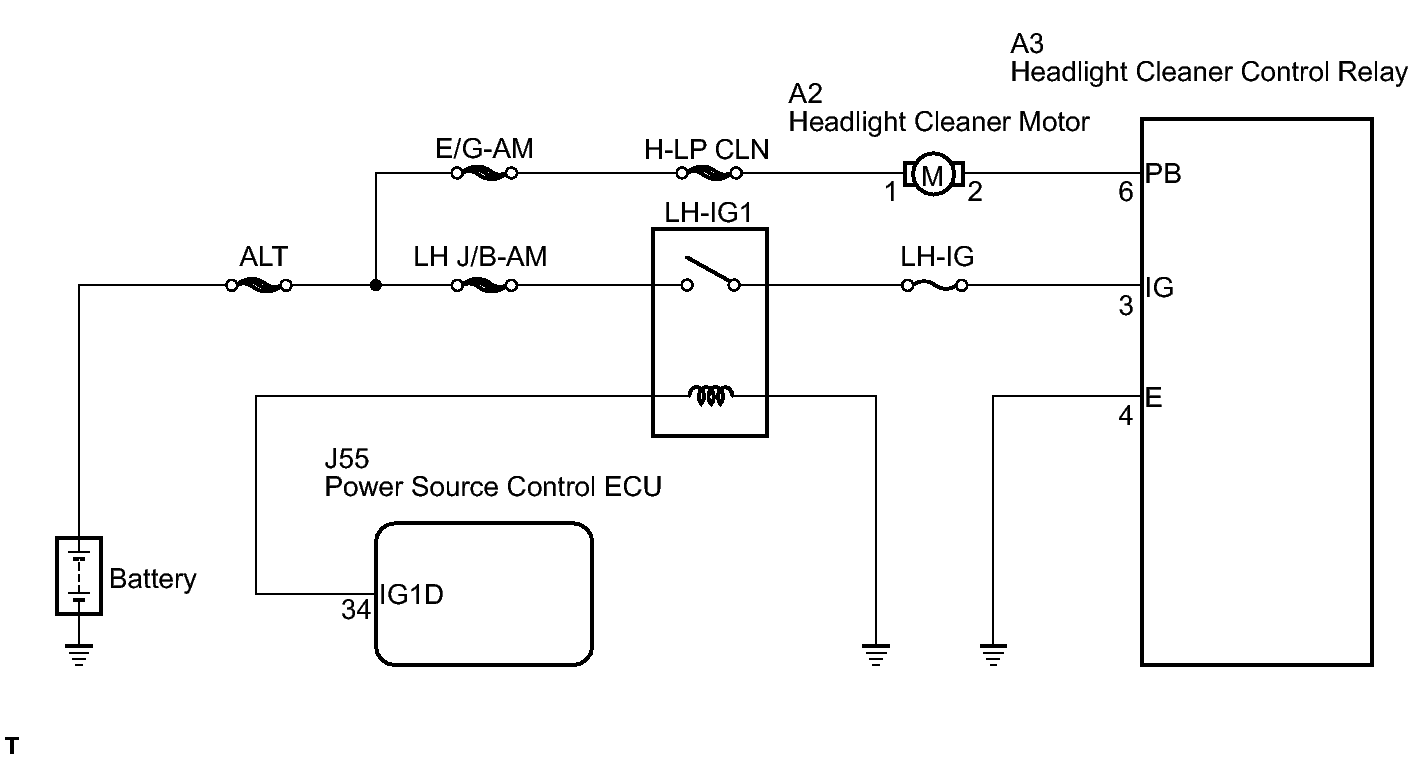

Fig 1: Headlight Cleaner Motor and Relay Circuit Diagram
GTY135910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
