Rear Power Window RH Auto Up / Down Function does not Operate with Rear Power Window Switch RH: Wiring Diagram

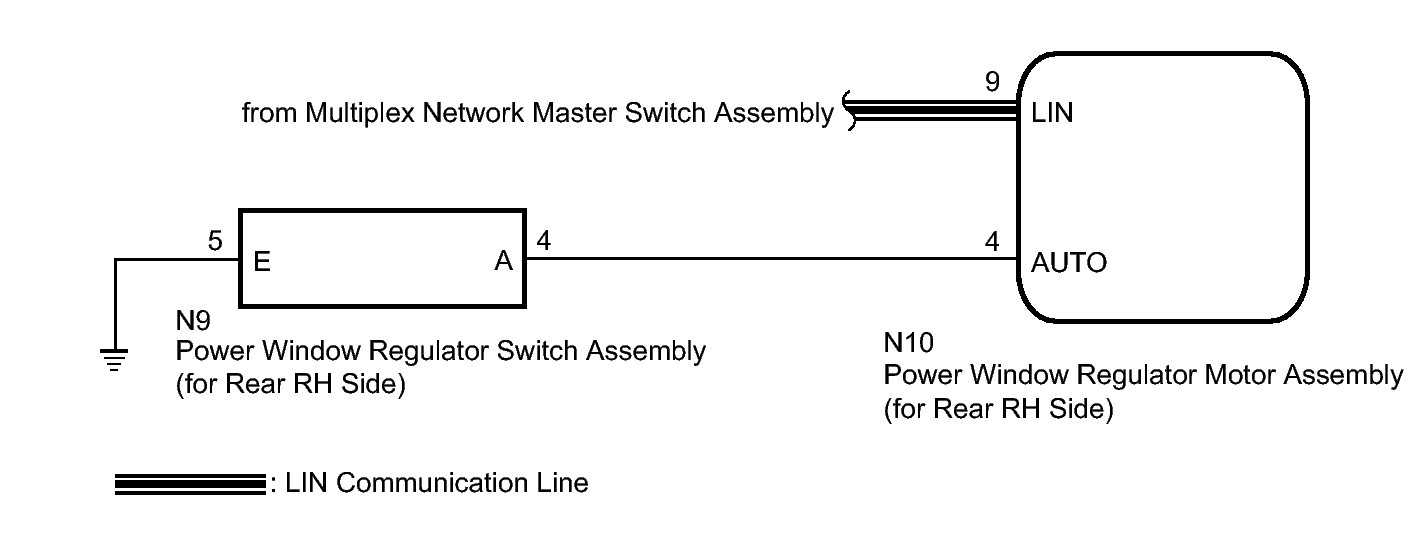

Fig 1: Rear RH Side Power Window Regulator Motor & Rear RH Side Power Window Switch - Wiring Diagram
GTY128612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
