Pattern Select Switch Power Mode Circuit: Wiring Diagram

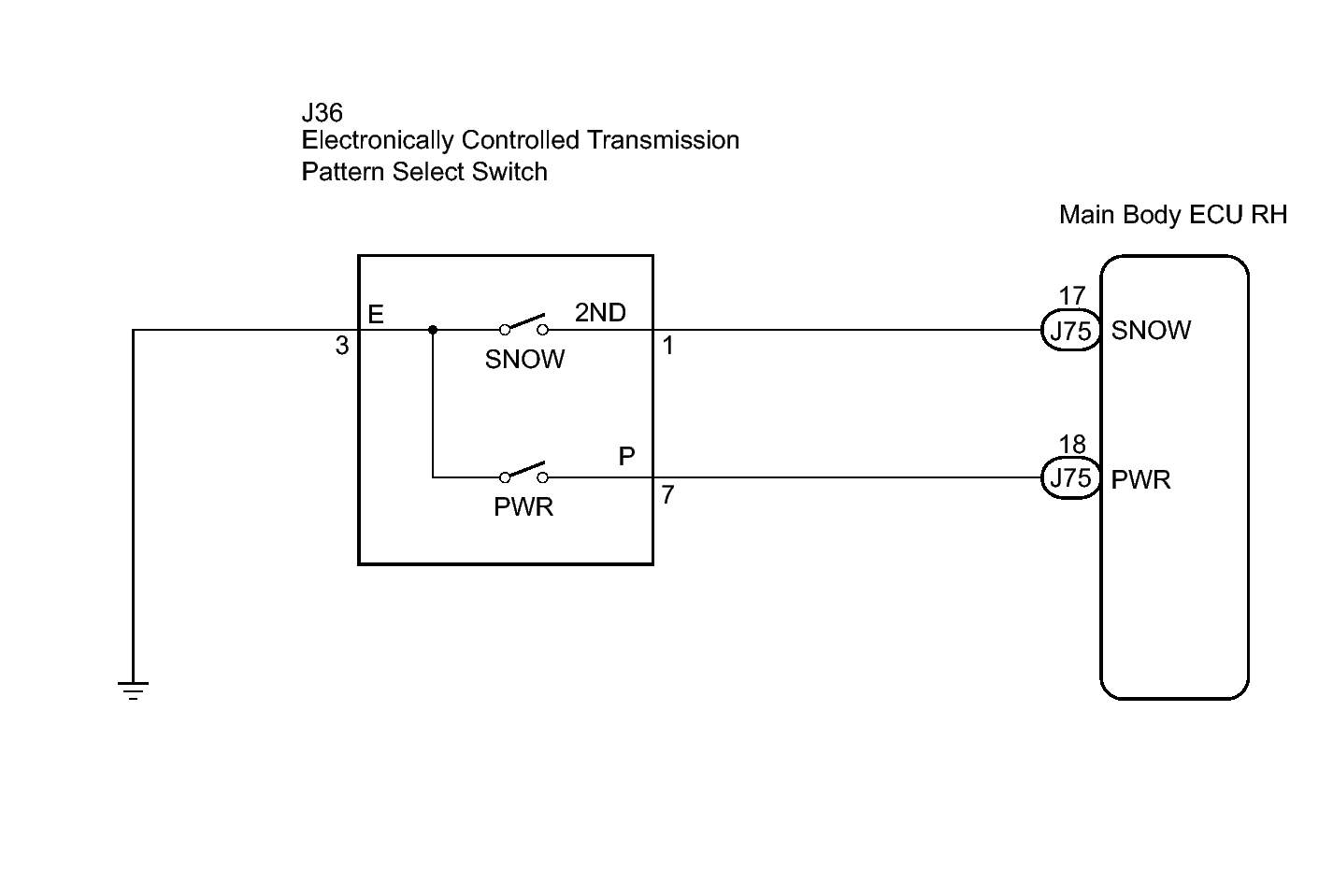

Fig 1: Pattern Select Switch Power Mode Circuit Diagram
GTY131215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
