DTC P0230: Fuel Pump Primary Circuit: Wiring Diagram

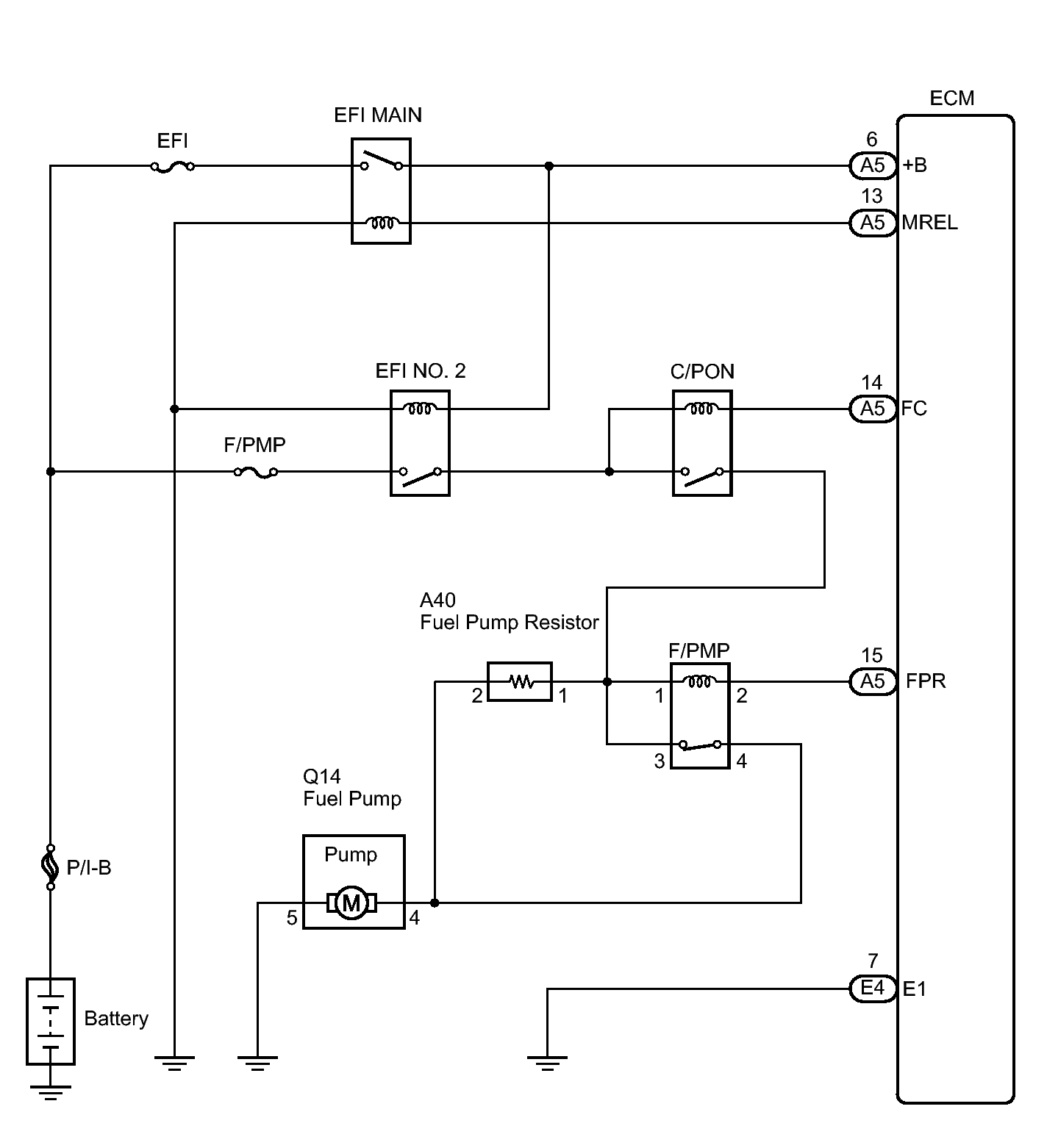

Fig 1: Fuel Pump Primary Circuit - Wiring Diagram
GTY286371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
