DTC P0112: Intake Air Temperature Circuit Low Input; DTC P0113: Intake Air Temperature Circuit High Input: Wiring Diagram

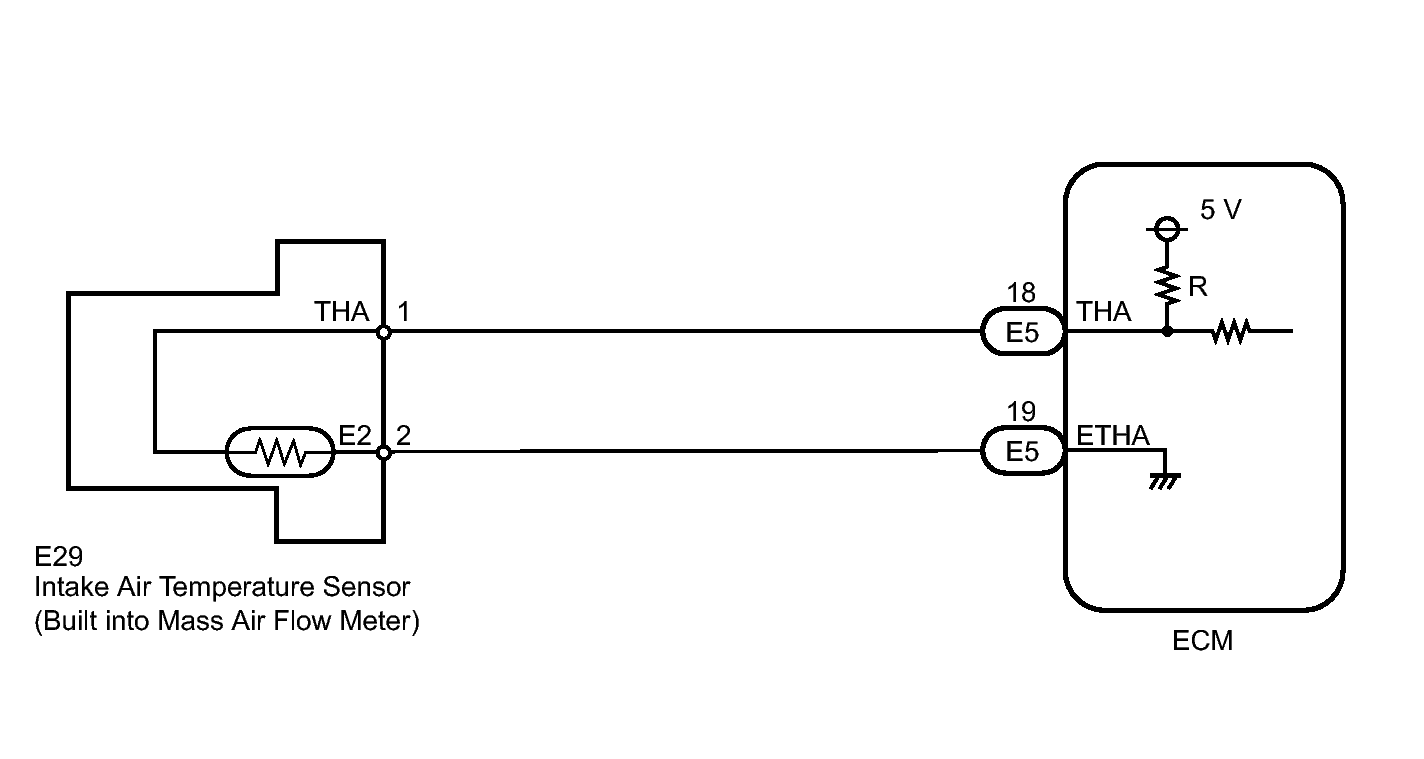

Fig 1: Intake Air Temperature Circuit - Wiring Diagram
GTY393727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
