Only Wireless Control Function is Inoperative: Procedure

1. Check that the transmitter's LED illuminates 3 times or more when the switch is pressed and held for 5 seconds.

   OK

   Transmitter's LED illuminates 3 times or more when switch is pressed and held for 5 seconds.

   RESULT



   Result	Proceed to
   NG	A
   OK	B

B → See step   3

A: Go to next step

1. Temporarily replace the transmitter battery with a new one. Refer to REPLACEMENT [09/2012 - ] .
2. Check that the doors can be locked and unlocked by using the transmitter LOCK/UNLOCK switch.

   OK

   Doors can be locked and unlocked with transmitter.

NG → See step   3

OK → END (TRANSMITTER BATTERY IS DEFECTIVE)

1. Temporarily replace the door control transmitter with a new one.
2. Check that the doors can be locked and unlocked by using the transmitter LOCK/UNLOCK switch.

   OK

   Doors can be locked and unlocked with transmitter.

NG → See step   4

OK → END (DOOR CONTROL TRANSMITTER IS DEFECTIVE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

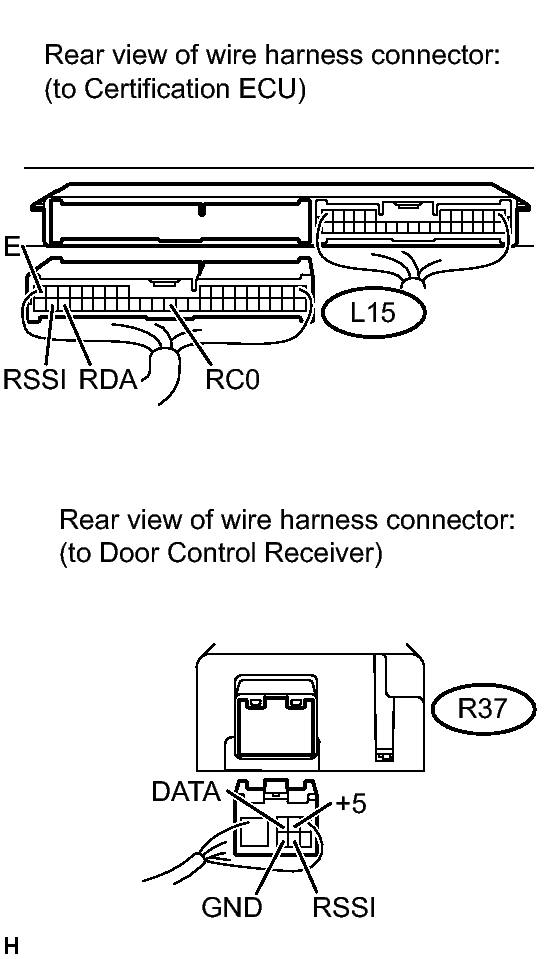

1. Disconnect the L15 ECU connector.
2. Disconnect the R37 receiver connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   L15-39 (RSSI) - R37-5 (RSSI)	Always	Below 1 Ω
   L15-38 (RDA) - R37-3 (DATA)
   L15-29 (RC0) - R37-2 (+5)
   L15-17 (E) - Body ground
   R37-6 (GND) - Body ground
   L15-39 (RSSI) or R37-5 (RSSI) - Body ground	Always	10 kΩ or higher
   L15-38 (RDA) or R37-3 (DATA) - Body ground
   L15-29 (RC0) or R37-2 (+5) - Body ground

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

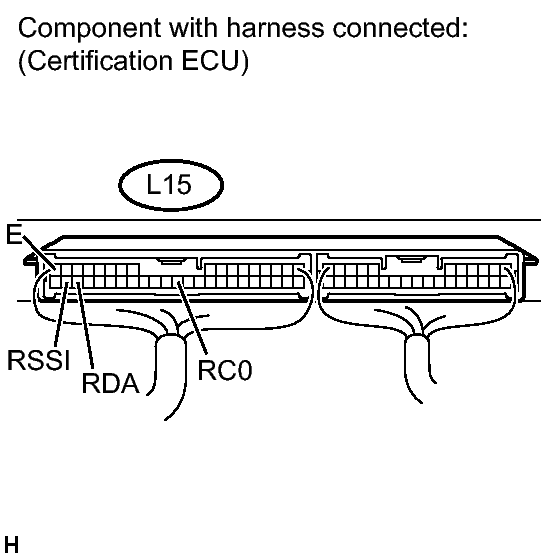

1. Disconnect the R37 receiver connector.
2. Measure the resistance and voltage according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   L15-17 (E) - Body ground	Always	Below 1 Ω

   Standard voltage

   Tester Connection	Switch Condition	Specified Condition
   L15-29 (RC0) - L15-17 (E)	Engine switch off, all doors closed and transmitter switch pressed	4.6 to 5.4 V
   L15-39 (RSSI) - L15-17 (E)	Engine switch off, all doors closed and transmitter switch not pressed	11 to 14 V
   	Engine switch off, all doors closed and transmitter switch pressed	Below 1 V
   L15-38 (RDA) - L15-17 (E)	Engine switch off, all doors closed and transmitter switch not pressed	11 to 14 V pulse generation at regular intervals
   	Engine switch off, all doors closed and transmitter switch pressed	Pulse generation

NG → REPLACE CERTIFICATION ECU

OK: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

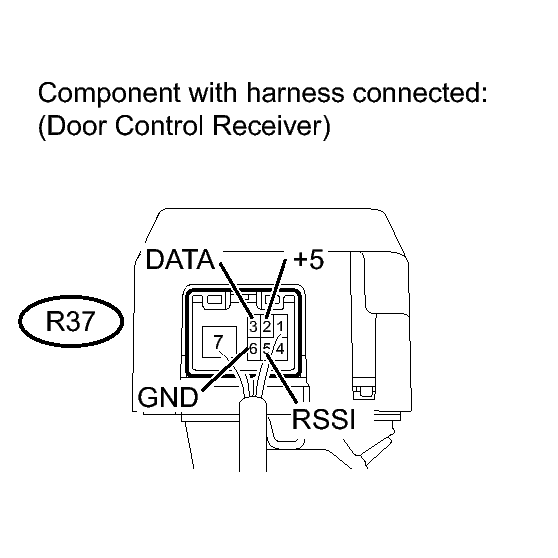

1. Measure the resistance and voltage according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   R37-6 (GND) - Body ground	Always	Below 1 Ω

   Standard voltage

   Tester Connection	Switch Condition	Specified Condition
   R37-2 (+5) - R37-6 (GND)	Engine switch off, all doors closed and transmitter switch pressed	4.5 to 5.4 V
   R37-5 (RSSI) - R37-6 (GND)	Engine switch off, all doors closed and transmitter switch not pressed	11 to 14 V
   	Engine switch off, all doors closed and transmitter switch pressed	Below 1 V
   R37-3 (DATA) - R37-6 (GND)	Engine switch off, all doors closed and transmitter switch not pressed	11 to 14 V pulse generation at regular intervals
   	Engine switch off, all doors closed and transmitter switch pressed	Pulse generation

NG → See step   12

OK: Go to next step

1. Visually inspect the entire window glass antenna wire's lines for breaks.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Using the tester, check that the window glass antenna wire's lines do not have continuity breaks.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • Wrap a piece of tin foil around the tip of the negative (-) tester probe as shown in the illustration. Press the foil against the wire's lines with your finger without damaging the wire, and inspect the wire.
   • If foreign matter on the glass needs to be cleaned, use a soft, dry cloth to wipe the glass along the wire's lines without damaging the wire.
   • Do not use standard detergents or glass cleaners.
   1. Move the tin foil wrapped probe along the wire's lines, and check for line breaks.

      OK

      Based on visual inspection and tester inspection, wire line breaks are not present.

NG → See step   13

OK: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

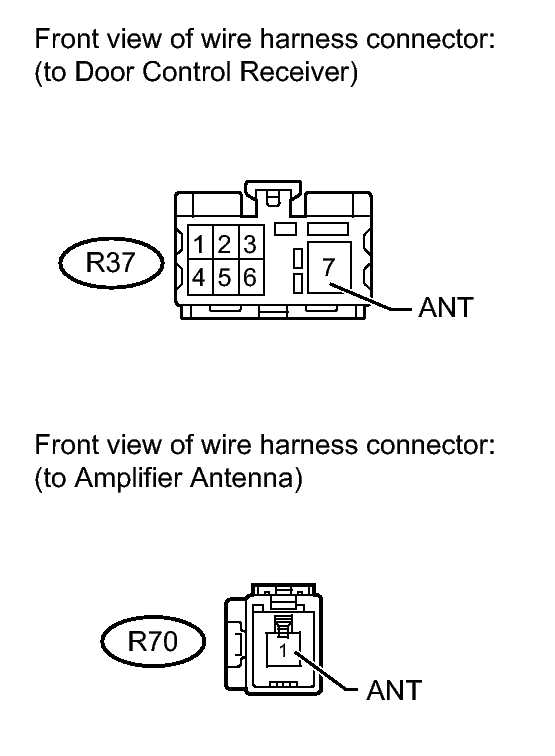

1. Disconnect the R37 receiver connector.
2. Disconnect the R70 antenna connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   R37-7 (ANT) - R70-1 (ANT)	Always	Below 1 Ω
   R37-7 (ANT) or R70-1 (ANT) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Temporarily replace the amplifier antenna with a new one. Refer to REMOVAL [09/2012 - ] .
2. Check that the doors can be locked and unlocked by using the transmitter LOCK/UNLOCK switch.

   OK

   Doors can be locked and unlocked with transmitter.

NG → See step   10

OK → END (AMPLIFIER ANTENNA IS DEFECTIVE)

1. Temporarily replace the door control receiver with a new one. Refer to REMOVAL [09/2012 - ] .
2. Check that the doors can be locked and unlocked by using the transmitter LOCK/UNLOCK switch.

   OK

   Doors can be locked and unlocked with transmitter.

NG → See step   11

OK → END (DOOR CONTROL RECEIVER IS DEFECTIVE)

1. Temporarily replace the certification ECU with a new one.
2. Check that the doors can be locked and unlocked by using the transmitter LOCK/UNLOCK switch.

   OK

   Doors can be locked and unlocked with transmitter.

NG → REPLACE MAIN BODY ECU (DRIVER SIDE JUNCTION BLOCK)

OK → END (CERTIFICATION ECU IS DEFECTIVE)
