Pattern Select Switch 2nd Start Mode Circuit: Procedure

  1. DRIVING TEST

    HINT:

    The driving test should be performed on a paved road (nonskid road).

    1. Start the engine.
    2. Turn the 2ND switch off (normal drive mode).
    3. Confirm vehicle response by driving from a parked position to fully depressing the accelerator pedal.
    4. Turn the 2ND switch on and perform the same check as above.

      When driving the vehicle with the 2ND switch on and off, check that there is a difference in acceleration.

      OK

      There is a difference in acceleration.

    NG → See step   2

    OK → See step   7

  2. INSPECT NO. 1 PATTERN SELECT SWITCH ASSEMBLY (2ND)
    1. Remove the No. 1 pattern select switch assembly. Refer to REMOVAL [01/2012 - ] .

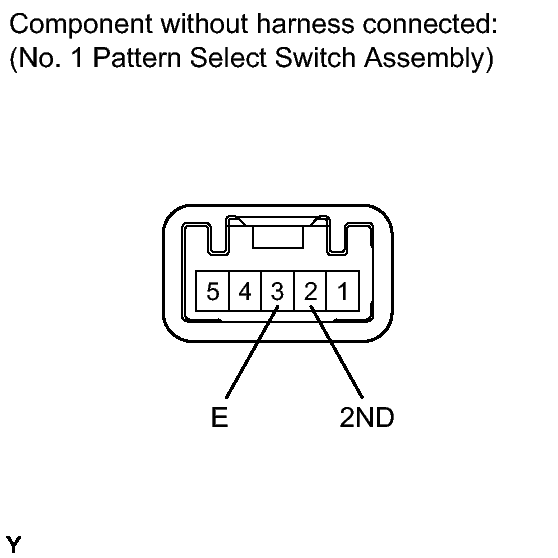

      GTY108969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      2 (2ND) - 3 (E) Pattern select switch (2ND) and held pressed Below 1 Ω
      2 (2ND) - 3 (E) Pattern select switch (2ND) released 10 kΩ or higher

    NG → See step   6

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (NO. 1 PATTERN SELECT SWITCH ASSEMBLY - BODY GROUND)
    1. Disconnect the V5 No. 1 pattern select switch assembly connector.

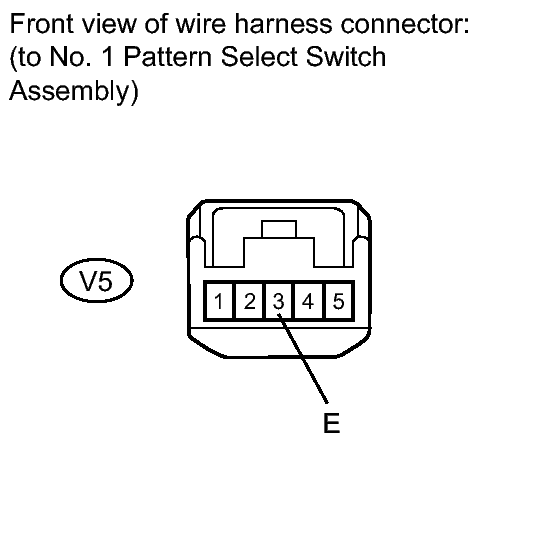

      GTY149107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      V5-3 (E) - Body ground Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (NO. 1 PATTERN SELECT SWITCH ASSEMBLY - ECM)

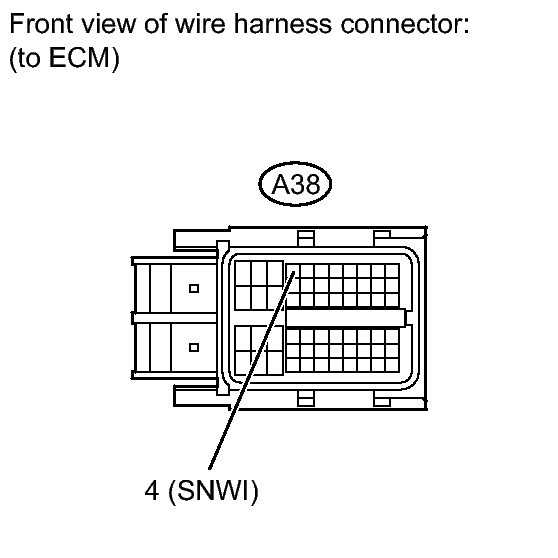

    GTY127487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A38 ECM connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      A38-4 (SNWI) - Body ground Pattern select switch (2ND) pressed and held Below 1 Ω
      A38-4 (SNWI) - Body ground Pattern select switch (2ND) released 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   5

  5. PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [01/2012 - ]
  6. REPLACE NO. 1 PATTERN SELECT SWITCH ASSEMBLY. Refer to  REMOVAL [01/2012 - ]
  7. PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [01/2012 - ]
