Back Door Entry Unlock Function does not Operate: Procedure
- READ VALUE USING TECHSTREAM (ENTRY BACK DOOR OPEN FUNCTION)
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Body Electrical / Smart Access / Data List.
- Read the Data List according to the display on the Techstream.SMART ACCESS (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))
Tester Display Measurement Item/Range Normal Condition Diagnostic Note B-Dr Opening Operation Back door opening Operation / Long, Twice, OFF Customization status displayed - Result
Result Proceed to Customize setting is LONG or TWICE. A Customize setting is OFF. B
B → See step 9
A: Go to next step
- CHECK POWER DOOR LOCK CONTROL SYSTEM
- When the door control switch on the master switch assembly is operated, check that the doors unlock and lock according to switch operation. Refer to OPERATION CHECK [03/2012 - ]
.
OK
Door locks operate normally.
NG → See step 8
OK: Go to next step
- When the door control switch on the master switch assembly is operated, check that the doors unlock and lock according to switch operation. Refer to OPERATION CHECK [03/2012 - ]
.
- READ VALUE USING TECHSTREAM (BACK DOOR OPENER SWITCH)
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Body Electrical / Smart Access / Data List.
- Read the Data List according to the display on the Techstream.SMART ACCESS (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))
Tester Display Measurement Item/Range Normal Condition Diagnostic Note Tr/B-Door Unlock SW Back door opener switch assembly (opener switch) / ON or OFF ON: Back door opener switch assembly (opener switch) pushed
OFF: Back door opener switch assembly (opener switch) not pushed- OK
On the Techstream screen, the display changes between ON and OFF as shown in the chart above.
NG → See step 4
OK → See step 6
- INSPECT BACK DOOR OPENER SWITCH ASSEMBLY
- Remove the back door opener switch assembly. Refer to REMOVAL [03/2012 - ]
.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

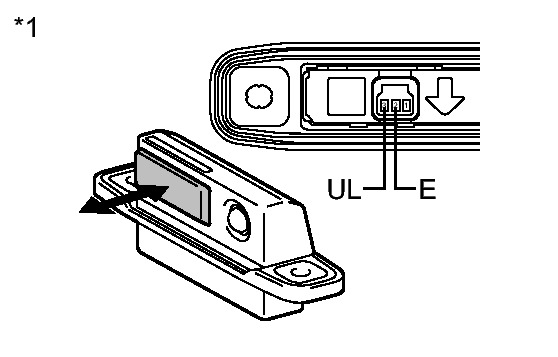

Tester Connection Switch Position Specified Condition 2 (E) - 3 (UL) Back door opener switch assembly (opener switch) not pushed (OFF) 10 kΩ or higher 2 (E) - 3 (UL) Back door opener switch assembly (opener switch) pushed (ON) Below 1 Ω TEXT IN ILLUSTRATION*1 Component without harness connected
(Back Door Opener Switch Assembly)
NG → See step 7
OK: Go to next step
- Remove the back door opener switch assembly. Refer to REMOVAL [03/2012 - ]
.
- CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - BACK DOOR OPENER SWITCH)
- Disconnect the certification ECU (smart key ECU Assembly) connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

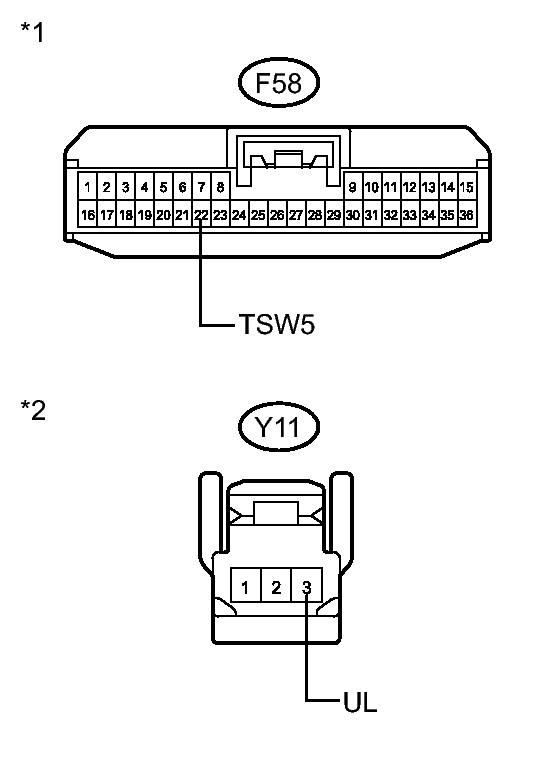

Tester Connection Condition Specified Condition F58-22 (TSW5) - Y11-3 (UL) Always Below 1 Ω F58-22 (TSW5) - Body ground Always 10 kΩ or higher Y11-3 (UL) - Body ground Always 10 kΩ or higher TEXT IN ILLUSTRATION*1 Front view of wire harness connector
(to Certification ECU (Smart Key ECU Assembly))*2 Front view of wire harness connector
(to Back Door Opener Switch Assembly)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 10
- Disconnect the certification ECU (smart key ECU Assembly) connector.
- REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to REMOVAL [03/2012 - 07/2012]
- REPLACE BACK DOOR OPENER SWITCH ASSEMBLY. Refer to REMOVAL [03/2012 - ]
- GO TO POWER DOOR LOCK CONTROL SYSTEM (Proceed to Problem Symptoms Table). Refer to PROBLEM SYMPTOMS TABLE [03/2012 - ]
- PERFORM CUSTOMIZE SETTING (Proceed to Customize Parameters). Refer to CUSTOMIZE PARAMETERS [03/2012 - ]
- REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to REMOVAL [03/2012 - 07/2012]
