Distance Control Switch Circuit: Procedure

1. Remove the steering pad. Refer to REMOVAL [03/2012 - 07/2012] .
2. Disconnect the spiral cable sub-assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1

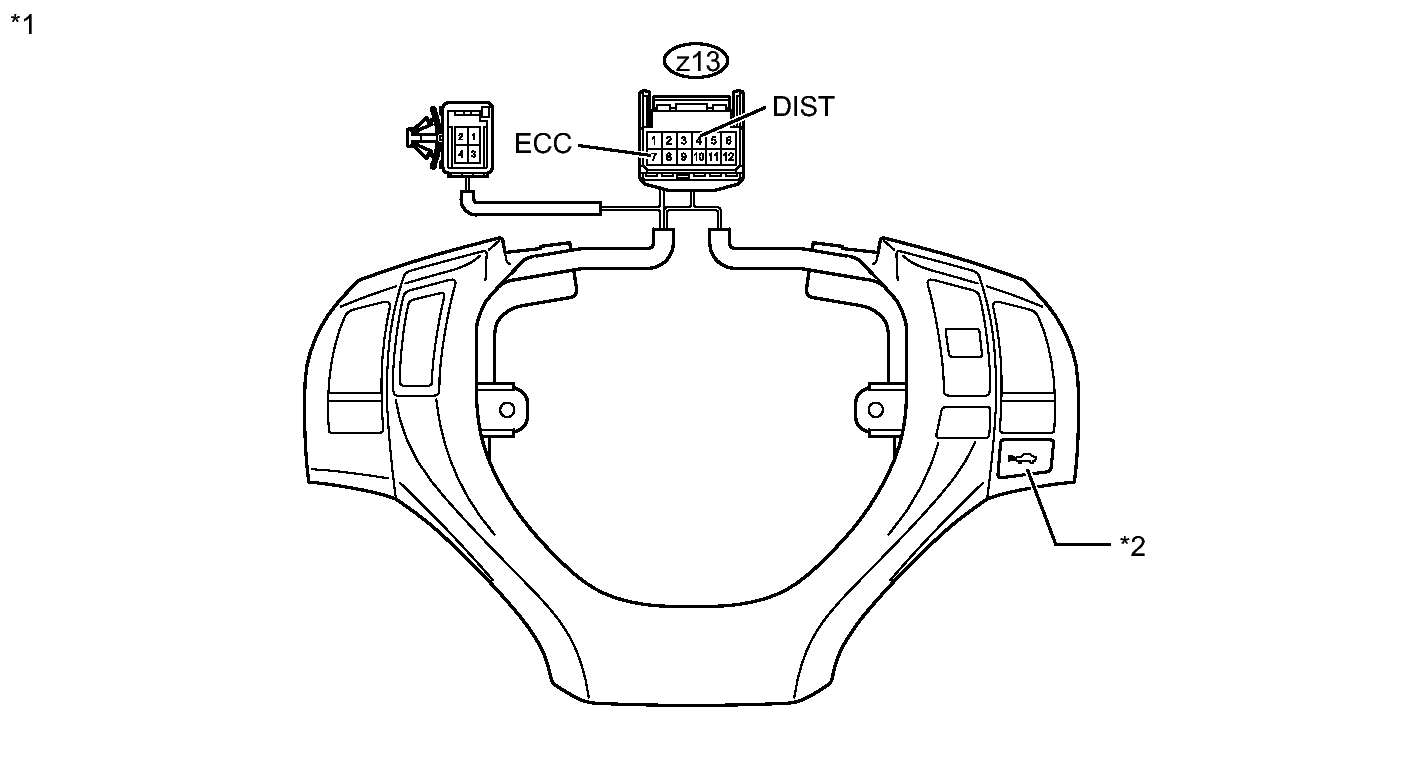

   Component without harness connected (Steering Pad Switch Assembly)

   *2

   Distance Control Switch

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   z13-4 (DIST) - z13-7 (ECC)	Distance control switch ON	Below 2.5 Ω
   	Distance control switch OFF	10 kΩ or higher

4. Reinstall the steering pad. Refer to INSTALLATION [03/2012 - 07/2012] .

NG → See step   7

OK: Go to next step

HINT:

• Removal. Refer to REMOVAL [03/2012 - 07/2012]
• Installation. Refer to INSTALLATION [03/2012 - 07/2012]

1. Remove the spiral cable sub-assembly. Refer to REMOVAL [03/2012 - 07/2012] .
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1

   Component without harness connected (Spiral Cable Sub-assembly)

   -

   -

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   z13-4 (DIST) - F98-12 (DIST)	The spiral cable sub-assembly position is center	Below 1 Ω
   	The spiral cable sub-assembly position is 2.5 rotations to the left
   	The spiral cable sub-assembly position is 2.5 rotations to the right
   z13-7 (ECC) - F98-2 (ECC)	The spiral cable sub-assembly position is center	Below 1 Ω
   	The spiral cable sub-assembly position is 2.5 rotations to the left
   	The spiral cable sub-assembly position is 2.5 rotations to the right

   HINT:

   The spiral cable sub-assembly makes a maximum of approximately 5 rotations.

3. Install the spiral cable sub-assembly. Refer to INSTALLATION [03/2012 - 07/2012] .

NG → See step   5

OK: Go to next step

1. Disconnect the driving support ECU connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F98-12 (DIST) - C1-7 (MODE)	Always	Below 1 Ω
   F98-12 (DIST) - Body ground	Always	10 kΩ or higher
   F98-2 (ECC) - Body ground	Always	Below 1 Ω

3. Reconnect the driving support ECU connector.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Turn the engine switch on (IG).
2. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   C1-7 (MODE) - Body ground	Distance control switch ON	0 to 2 V
   	Distance control switch OFF	11 to 14 V

   TEXT IN ILLUSTRATION



   *1	Component without harness connected (Driving Support ECU)

NG → See step   8

OK → See step   6
