Vehicle Speed Signal Circuit between Radio Receiver and Combination Meter (03/2012 - 07/2012): Wiring Diagram

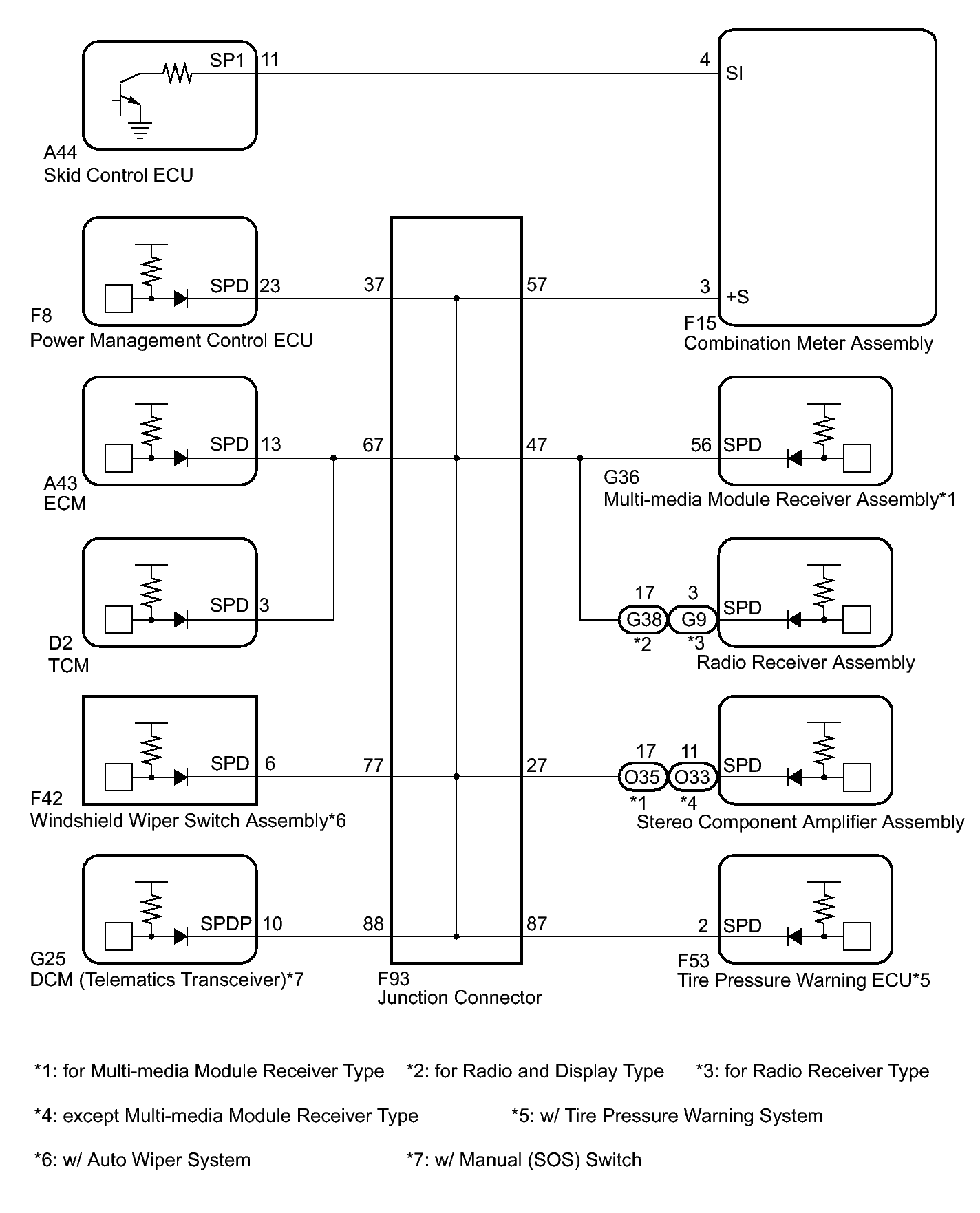

Fig 1: Vehicle Speed Signal Circuit Wiring Diagram
GTY417983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
