DCM Data Signal Circuit between Navigation ECU and DCM: Wiring Diagram

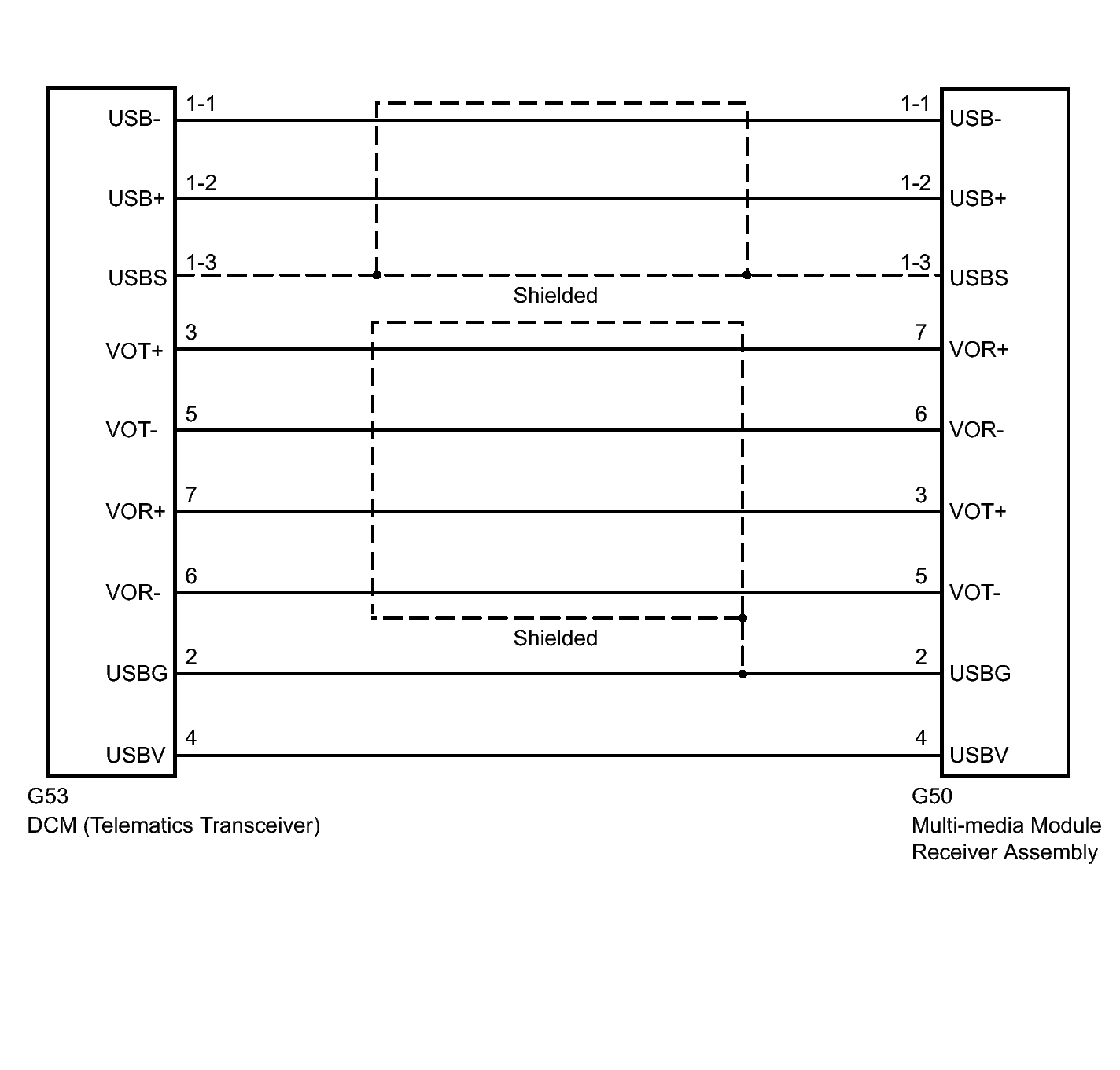

Fig 1: DCM Wiring Diagram
GTY396804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
