Data Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter: Procedure

1. Disconnect the G52 multi-media module receiver assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the U13 No. 1 stereo jack adapter assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G52-2 (US1-) - U13-2 (UDO-)	Always	Below 1 Ω
   G52-3 (US1+) - U13-3 (UDO+)	Always	Below 1 Ω
   G52-5 (USG1) - U13-5 (UJSS)	Always	Below 1 Ω
   G52-2 (US1-) - Body ground	Always	10 kΩ or higher
   G52-3 (US1+) - Body ground	Always	10 kΩ or higher
   G52-5 (USG1) - Body ground	Always	10 kΩ or higher

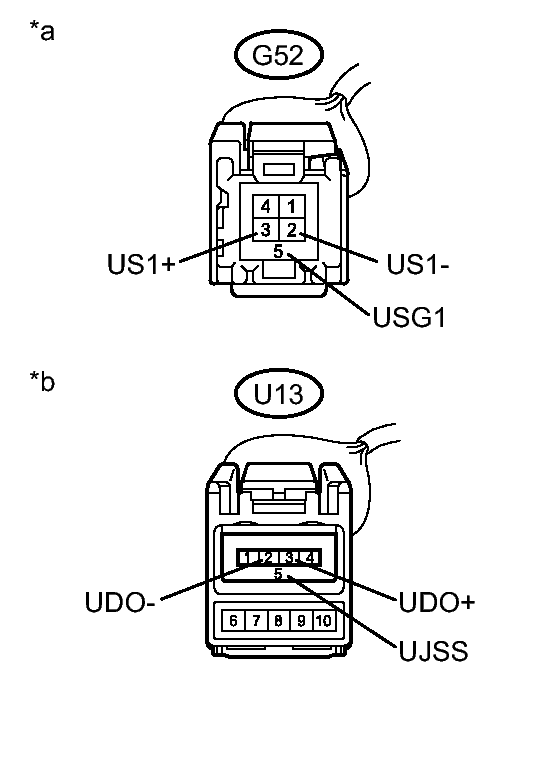

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Multi-media Module Receiver Assembly)
   *b	Front view of wire harness connector (to No. 1 Stereo Jack Adapter Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   2
