Microphone Circuit between Microphone and Navigation Receiver Assembly: Wiring Diagram

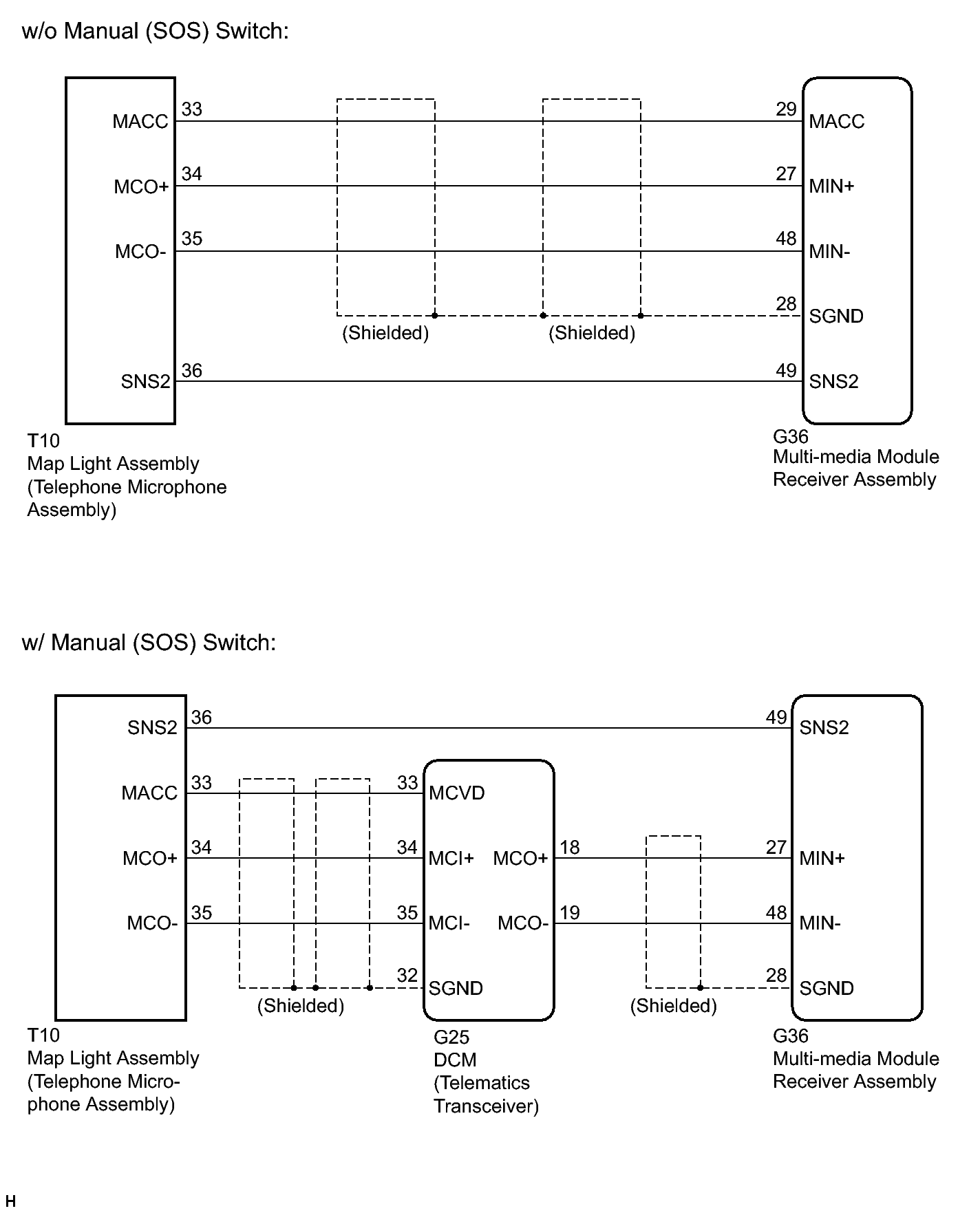

Fig 1: Multi-Media Module Receiver Assembly Wiring Diagram
GTY418756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
