Sound Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter: Wiring Diagram

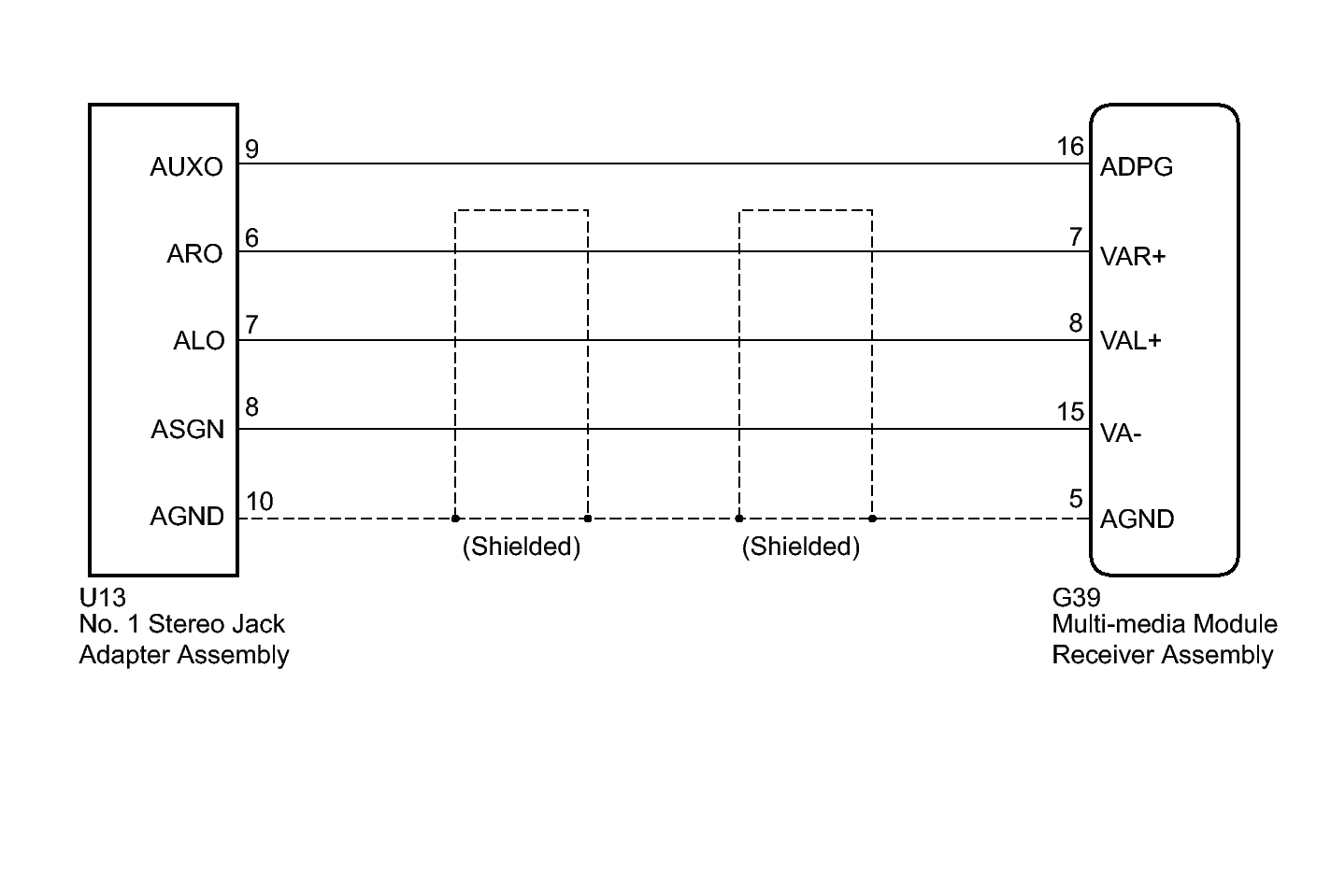

Fig 1: No. 1 Stereo Jack Adapter Assembly Wiring Diagram
GTY404339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
