Steering Pad Switch Circuit: Procedure
- INSPECT MULTI-MEDIA MODULE RECEIVER ASSEMBLY
- Disconnect the G36 multi-media module receiver assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition G36-30 (SW1) - G36-32 (SWG) No switch pushed 95 to 105 kΩ Seek+ switch pushed Below 2.5 Ω Seek- switch pushed 313 to 345 Ω Volume+ switch pushed 950 to 1050 Ω Volume- switch pushed 2955 to 3265 Ω G36-31 (SW2) - G36-32 (SWG) No switch pushed 95 to 105 kΩ MODE switch pushed Below 2.5 Ω Voice switch pushed 2955 to 3265 Ω On hook switch pushed 313 to 345 Ω Off hook switch pushed 950 to 1050 Ω
NG → See step 2
OK → See step 4
- INSPECT STEERING PAD SWITCH ASSEMBLY
- Disconnect the z13 steering pad switch assembly connector.
- Measure the resistance according to the values in the table below.
Standard Resistance

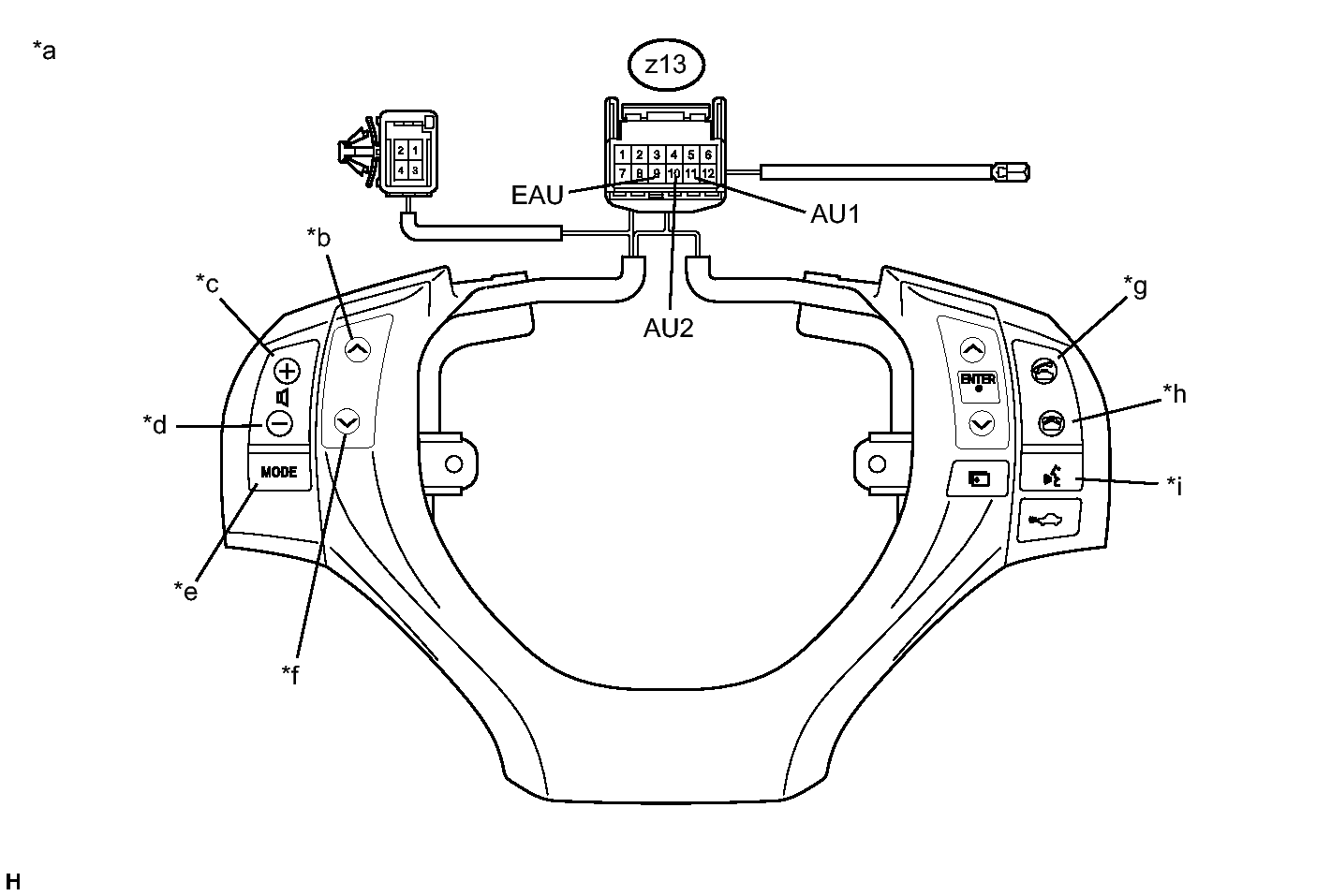

Tester Connection Condition Specified Condition z13-11 (AU1) - z13-9 (EAU) No switch pushed 95 to 105 kΩ Seek+ switch pushed Below 2.5 Ω Seek- switch pushed 313 to 345 Ω Volume+ switch pushed 950 to 1050 Ω Volume- switch pushed 2955 to 3265 Ω z13-10 (AU2) - z13-9 (EAU) No switch pushed 95 to 105 kΩ MODE switch pushed Below 2.5 Ω Voice switch pushed 2955 to 3265 Ω On hook switch pushed 313 to 345 Ω Off hook switch pushed 950 to 1050 Ω TEXT IN ILLUSTRATION*a Component without harness connected
(Steering Pad Switch Assembly)*b Seek+ *c Volume+ *d Volume- *e MODE *f Seek- *g Off hook *h On hook *i Voice - -
NG → See step 6
OK: Go to next step
- INSPECT SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
- Disconnect the z13 steering pad switch assembly connector.
- Disconnect the F98 spiral cable with sensor sub-assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition z13-9 (EAU) - F98-4 (EAU) Center Below 1 Ω 2.5 rotations to the left 2.5 rotations to the right z13-11 (AU1) - F98-6 (AU1) Center Below 1 Ω 2.5 rotations to the left 2.5 rotations to the right z13-10 (AU2) - F98-5 (AU2) Center Below 1 Ω 2.5 rotations to the left 2.5 rotations to the right - After setting the spiral cable with sensor sub-assembly to the center position, rotate the spiral cable with sensor sub-assembly 2.5 times clockwise. Then while rotating the spiral cable with sensor sub-assembly 5 times counterclockwise, measure the resistance as shown in the table below.
Standard Resistance
Tester Connection Condition Specified Condition z13-9 (EAU) - F98-4 (EAU) Always Below 1 Ω z13-11 (AU1) - F98-6 (AU1) Always Below 1 Ω z13-10 (AU2) - F98-5 (AU2) Always Below 1 Ω NOTE:- The spiral cable with sensor sub-assembly is an important part of the SRS airbag system. Incorrect removal or installation of the spiral cable with sensor sub-assembly may prevent the airbag from deploying. Refer to the information shown in the brackets.
- As the spiral cable with sensor sub-assembly may break, do not rotate the spiral cable with sensor sub-assembly more than the specified amount.
HINT:
- Removal. Refer to REMOVAL [03/2012 - 07/2012]
- Installation. Refer to INSTALLATION [03/2012 - 07/2012]

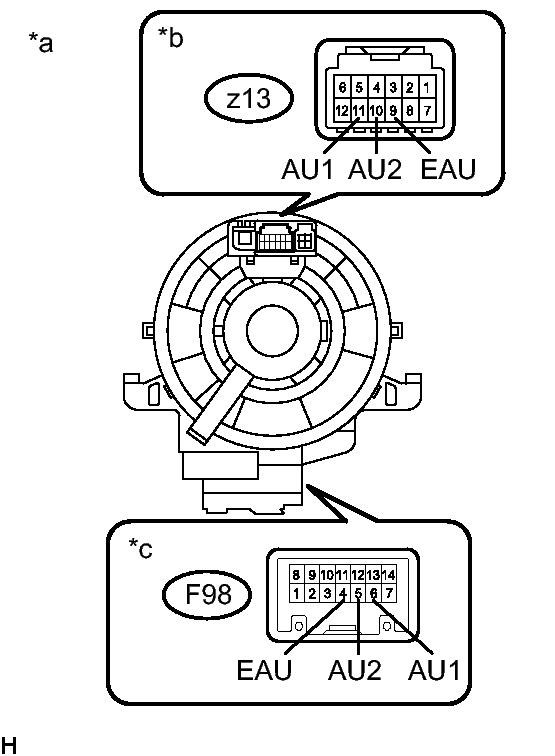

TEXT IN ILLUSTRATION*a Component without harness connected
(Spiral Cable with Sensor Sub-assembly)*b Steering Pad Switch Assembly Side *c Vehicle Side
NG → See step 5
OK → REPAIR OR REPLACE HARNESS OR CONNECTOR (SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY - MULTI-MEDIA MODULE RECEIVER ASSEMBLY)
- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [03/2012 - 07/2012]
- REPLACE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY. Refer to REMOVAL [03/2012 - 07/2012]
- REPLACE STEERING PAD SWITCH ASSEMBLY. Refer to REMOVAL [03/2012 - 07/2012]
- INSPECT MULTI-MEDIA MODULE RECEIVER ASSEMBLY
- Disconnect the G36 multi-media module receiver assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition G36-30 (SW1) - G36-32 (SWG) No switch pushed 95 to 105 kΩ Seek+ switch pushed Below 2.5 Ω Seek- switch pushed 313 to 345 Ω Volume+ switch pushed 950 to 1050 Ω Volume- switch pushed 2955 to 3265 Ω G36-31 (SW2) - G36-32 (SWG) No switch pushed 95 to 105 kΩ MODE switch pushed Below 2.5 Ω Voice switch pushed 2955 to 3265 Ω On hook switch pushed 313 to 345 Ω Off hook switch pushed 950 to 1050 Ω
NG → See step 2
OK → See step 4
- INSPECT STEERING PAD SWITCH ASSEMBLY
- Disconnect the z13 steering pad switch assembly connector.
- Measure the resistance according to the values in the table below.
Standard Resistance
Tester Connection Condition Specified Condition z13-11 (AU1) - z13-9 (EAU) No switch pushed 95 to 105 kΩ Seek+ switch pushed Below 2.5 Ω Seek- switch pushed 313 to 345 Ω Volume+ switch pushed 950 to 1050 Ω Volume- switch pushed 2955 to 3265 Ω z13-10 (AU2) - z13-9 (EAU) No switch pushed 95 to 105 kΩ MODE switch pushed Below 2.5 Ω Voice switch pushed 2955 to 3265 Ω On hook switch pushed 313 to 345 Ω Off hook switch pushed 950 to 1050 Ω TEXT IN ILLUSTRATION*a Component without harness connected
(Steering Pad Switch Assembly)*b Seek+ *c Volume+ *d Volume- *e MODE *f Seek- *g Off hook *h On hook *i Voice - -
NG → See step 6
OK: Go to next step
- INSPECT SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
- Disconnect the z13 steering pad switch assembly connector.
- Disconnect the F98 spiral cable with sensor sub-assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition z13-9 (EAU) - F98-4 (EAU) Center Below 1 Ω 2.5 rotations to the left 2.5 rotations to the right z13-11 (AU1) - F98-6 (AU1) Center Below 1 Ω 2.5 rotations to the left 2.5 rotations to the right z13-10 (AU2) - F98-5 (AU2) Center Below 1 Ω 2.5 rotations to the left 2.5 rotations to the right - After setting the spiral cable with sensor sub-assembly to the center position, rotate the spiral cable with sensor sub-assembly 2.5 times clockwise. Then while rotating the spiral cable with sensor sub-assembly 5 times counterclockwise, measure the resistance as shown in the table below.
Standard Resistance
Tester Connection Condition Specified Condition z13-9 (EAU) - F98-4 (EAU) Always Below 1 Ω z13-11 (AU1) - F98-6 (AU1) Always Below 1 Ω z13-10 (AU2) - F98-5 (AU2) Always Below 1 Ω NOTE:- The spiral cable with sensor sub-assembly is an important part of the SRS airbag system. Incorrect removal or installation of the spiral cable with sensor sub-assembly may prevent the airbag from deploying. Refer to the information shown in the brackets.
- As the spiral cable with sensor sub-assembly may break, do not rotate the spiral cable with sensor sub-assembly more than the specified amount.
HINT:
- Removal. Refer to REMOVAL [07/2012 - ]
- Installation. Refer to INSTALLATION [07/2012 - ]
TEXT IN ILLUSTRATION*a Component without harness connected
(Spiral Cable with Sensor Sub-assembly)*b Steering Pad Switch Assembly Side *c Vehicle Side
NG → See step 5
OK → REPAIR OR REPLACE HARNESS OR CONNECTOR (SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY - MULTI-MEDIA MODULE RECEIVER ASSEMBLY)
- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [07/2012 - ]
- REPLACE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY. Refer to REMOVAL [07/2012 - ]
- REPLACE STEERING PAD SWITCH ASSEMBLY. Refer to REMOVAL [07/2012 - ]
