Visual Mute Signal Circuit between Navigation ECU and Multi-display: Wiring Diagram

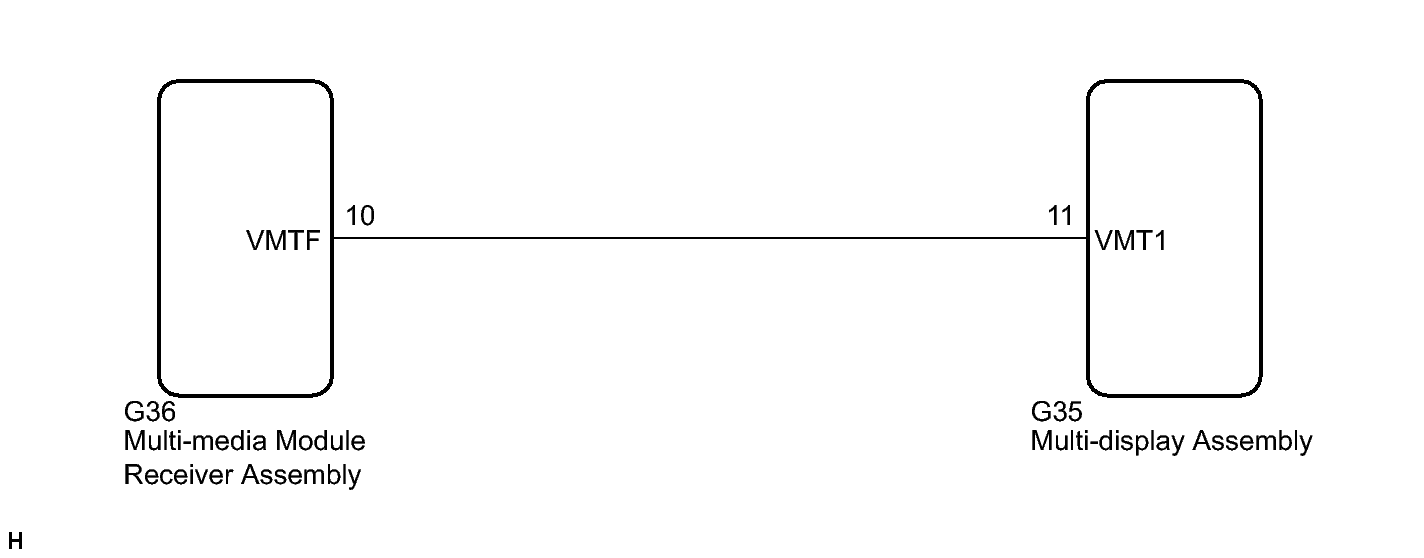

Fig 1: Multi-Media Module Receiver Assembly & Multi-Display Assembly Wiring Diagram
GTY405520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
