Power Seat Power Easy Access System Function does not Operate: Wiring Diagram

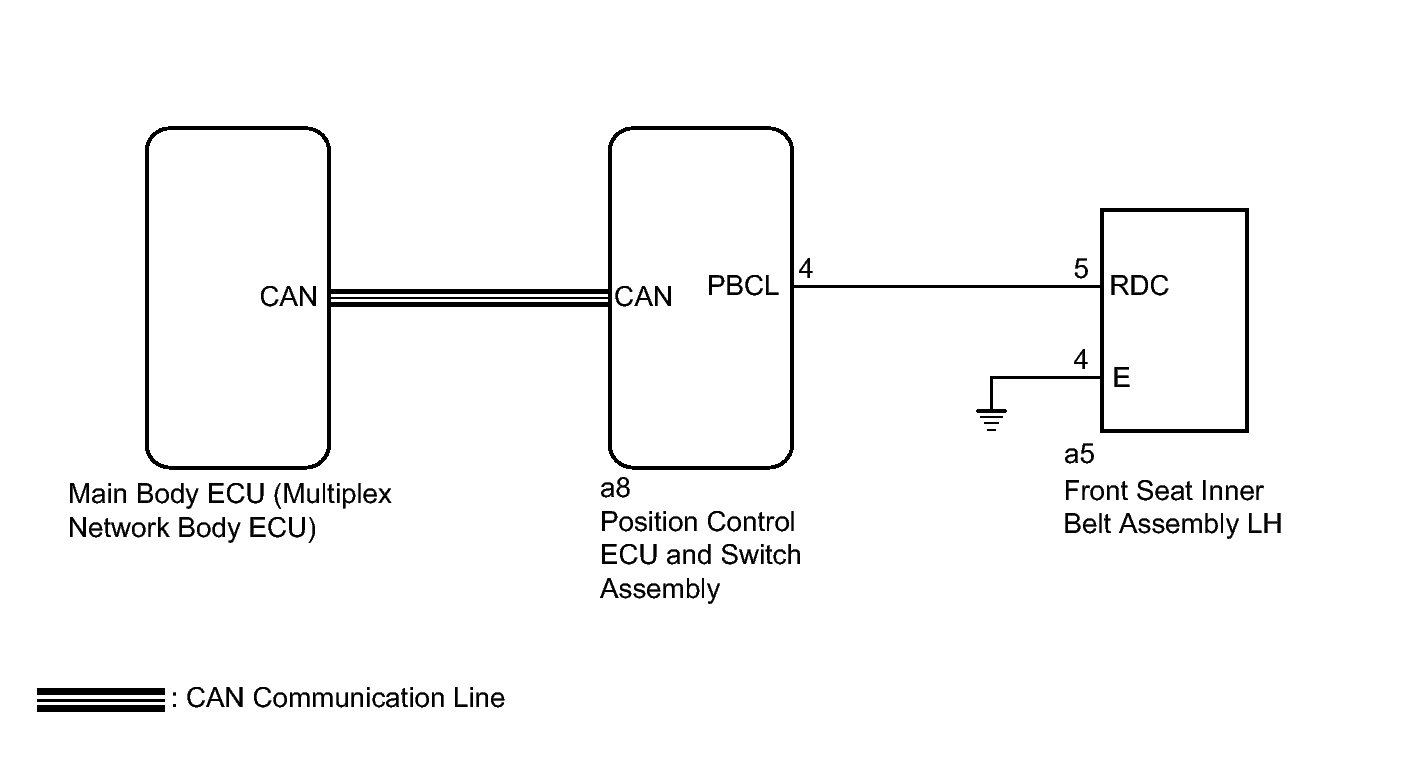

Fig 1: Power Seat Easy Access System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
