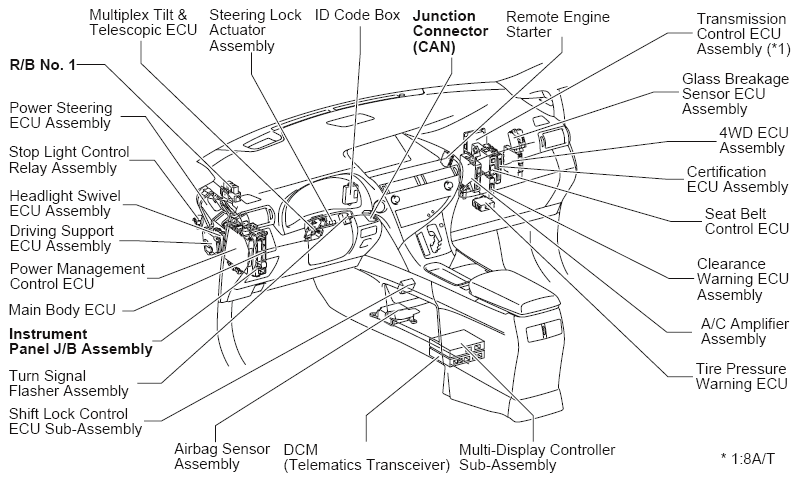

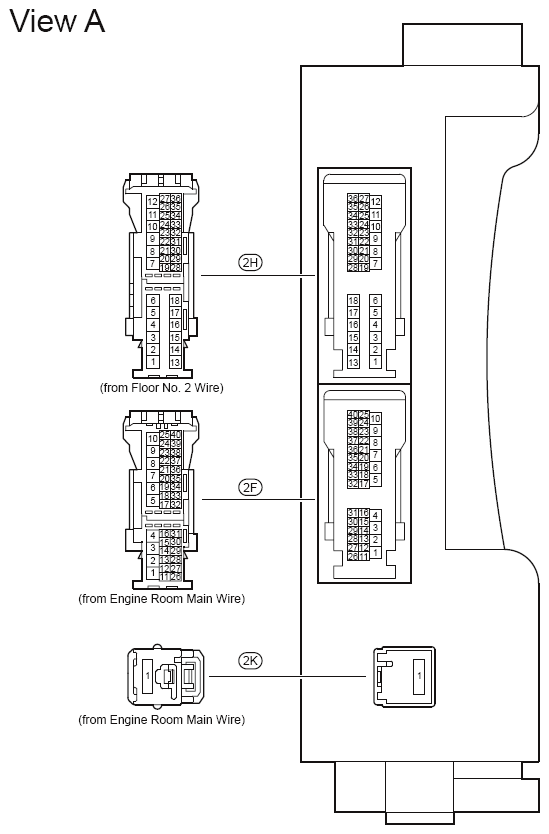

Instrument Panel Junction Block Assembly - Cowl Side Panel LH: Notes
For additional information, refer to Figure.

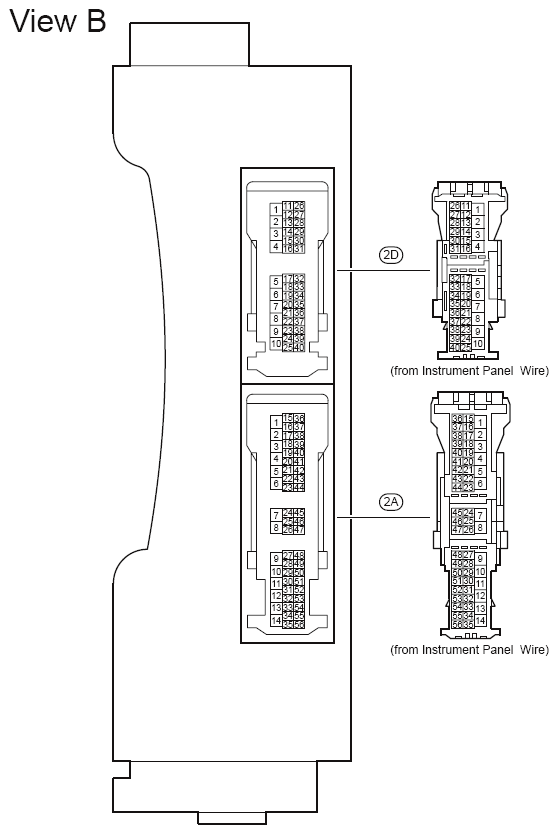

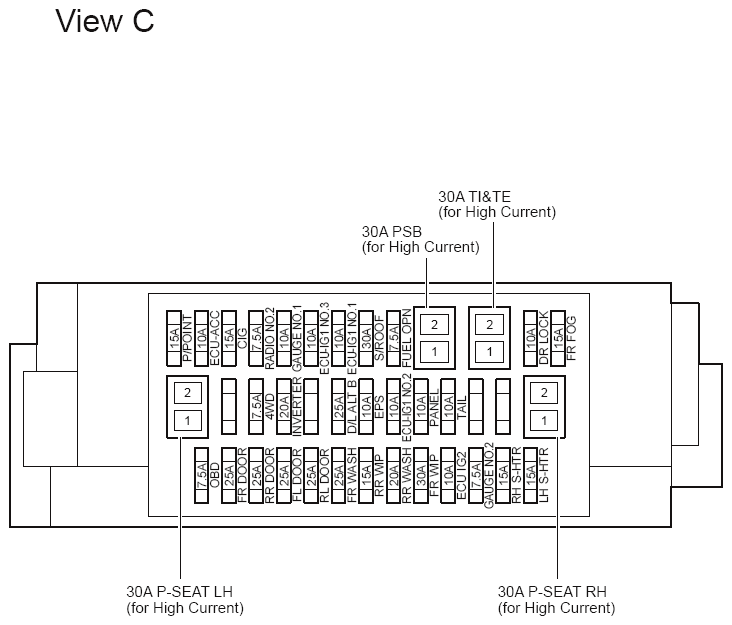

Instrument Panel J/B Fuse Identification Legend
| Fuse | System | |
|---|---|---|
| 7.5A | 4WD | 4WD |
| 7.5A | FUEL OPN | Fuel Lid Opener |
| 7.5A | GAUGE NO. 2 | 4WD |
| Blind Spot Monitor System | ||
| Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC and VSC) | ||
| Charging | ||
| Combination Meter | ||
| Cruise Control | ||
| Dynamic Radar Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator and Engine Control | ||
| Engine Immobiliser System, Remote Engine Starter System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| EPS | ||
| Front Fog Light | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Illumination | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Pre-Collision System | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| SRS | ||
| Taillight | ||
| Tire Pressure Warning System | ||
| Turn Signal and Hazard Warning Light | ||
| 7.5A | OBD | Data Link Connector 3 |
| 7.5A | RADIO NO. 2 | Audio System (Radio&Display Receiver Type) and Parking Assist (Rear View Monitor) (Radio&Display Receiver Type) |
| Audio System (Radio Receiver Type) | ||
| LEXUS ENFORM or Safety Connect | ||
| 10A | ECU IG2 | Cruise Control |
| Dynamic Radar Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator and Engine Control | ||
| Engine Immobiliser System, Remote Engine Starter System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| LEXUS ENFORM or Safety Connect | ||
| Seat Belt Warning | ||
| SRS | ||
| 10A | ECU-ACC | 4WD |
| Air Conditioning | ||
| Audio System (Navigation Receiver Type), LEXUS Navigation System and Parking Assist (Back Guide Monitor or Rear View Monitor) (Navigation Receiver Type) | ||
| Audio System (Radio&Display Receiver Type) and Parking Assist (Rear View Monitor) (Radio&Display Receiver Type) | ||
| Audio System (Radio Receiver Type) | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC and VSC) | ||
| Combination Meter | ||
| Door Lock Control | ||
| Engine Immobiliser System, Remote Engine Starter System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| Front Fog Light | ||
| Front Wiper and Washer (w/Auto Wiper System) | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Headlight Cleaner | ||
| Illumination | ||
| Interior Light | ||
| LEXUS ENFORM or Safety Connect | ||
| Power Back Door | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Remote Control Mirror | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| Taillight | ||
| Theft Deterrent | ||
| 10A | ECU-IG1 NO. 1 | 4WD |
| Air Conditioning | ||
| Audio System (Radio Receiver Type) | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC and VSC) | ||
| Combination Meter | ||
| Cruise Control | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator and Engine Control | ||
| Engine Immobiliser System, Remote Engine Starter System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| Front Fog Light | ||
| Front Wiper and Washer (w/Auto Wiper System) | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Headlight Cleaner | ||
| Illumination | ||
| Interior Light | ||
| LEXUS ENFORM or Safety Connect | ||
| Power Back Door | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Pre-Collision System | ||
| Remote Control Mirror | ||
| Shift Lock | ||
| Sliding Roof | ||
| Taillight | ||
| Theft Deterrent | ||
| Tire Pressure Warning System | ||
| 10A | ECU-IG1 NO. 2 | 4WD |
| Electric Tension Reducer | ||
| Parking Assist (Intuitive Parking Assist) | ||
| 10A | ECU-IG1 NO. 3 | Air Conditioning |
| Automatic Glare-Resistant EC Mirror with Compass | ||
| Climate Control Seat | ||
| Engine Immobiliser System, Remote Engine Starter System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| Front Window Deicer | ||
| Front Wiper and Washer (w/Auto Wiper System) | ||
| Garage Door Opener | ||
| Interior Light | ||
| Mirror Heater and Rear Window Defogger | ||
| Parking Assist (Rear View Monitor) (Inner Rear View Mirror Type) | ||
| Power Outlet | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Power Tilt and Power Telescopic | ||
| Remote Control Mirror | ||
| Seat Heater | ||
| Sliding Roof | ||
| Theft Deterrent | ||
| 10A | EPS | EPS |
| 10A | GAUGE NO. 1 | Air Conditioning |
| Audio System (Navigation Receiver Type), LEXUS Navigation System and Parking Assist (Back Guide Monitor or Rear View Monitor) (Navigation Receiver Type) | ||
| Audio System (Radio&Display Receiver Type) and Parking Assist (Rear View Monitor) (Radio&Display Receiver Type) | ||
| Audio System (Radio Receiver Type) | ||
| Blind Spot Monitor System | ||
| Charging | ||
| Combination Meter | ||
| Heated Steering Wheel System | ||
| Seat Belt Warning | ||
| Trailer Towing | ||
| Turn Signal and Hazard Warning Light | ||
| 10A | PANEL | Illumination |
| 10A | TAIL | Front Fog Light |
| Taillight | ||
| Trailer Towing | ||
| 15A | CIG | Power Outlet |
| 15A | FR FOG | Front Fog Light |
| 15A | LH S-HTR | Climate Control Seat |
| Seat Heater | ||
| 15A | P/POINT | Power Outlet |
| 15A | RH S-HTR | Climate Control Seat |
| Seat Heater | ||
| 15A | RR WIP | Rear Wiper and Washer |
| 20A | INVERTER | Power Outlet |
| 20A | RR WASH | Rear Wiper and Washer |
| 25A | D/L ALT B | 4WD |
| Air Conditioning | ||
| Audio System (Radio Receiver Type) | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Brake Control System (Vehicle Dynamics Integrated Management/ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC and VSC) | ||
| Combination Meter | ||
| Door Lock Control | ||
| Engine Immobiliser System, Remote Engine Starter System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| Front Fog Light | ||
| Front Wiper and Washer (w/Auto Wiper System) | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Headlight Cleaner | ||
| Illumination | ||
| Interior Light | ||
| LEXUS ENFORM or Safety Connect | ||
| Power Back Door | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Remote Control Mirror | ||
| Sliding Roof | ||
| Taillight | ||
| Theft Deterrent | ||
| 25A | FL DOOR | Interior Light |
| Mirror Heater and Rear Window Defogger | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Remote Control Mirror | ||
| 25A | FR DOOR | Interior Light |
| Mirror Heater and Rear Window Defogger | ||
| 25A | FR DOOR | Power Window |
| Remote Control Mirror | ||
| 25A | FR WASH | Front Wiper and Washer (w/Auto Wiper System) |
| Front Wiper and Washer (w/o Auto Wiper System) | ||
| 25A | RL DOOR | Power Window |
| 25A | RR DOOR | Power Window |
| 30A | FR WIP | Front Wiper and Washer (w/Auto Wiper System) |
| Front Wiper and Washer (w/o Auto Wiper System) | ||
| 30A | PSB | Pre-Collision System |
| 30A | P-SEAT LH | Power Seat (Driver's Seat w/Seat Position Memory) |
| Power Seat (Driver's Seat w/o Seat Position Memory) | ||
| 30A | P-SEAT RH | Power Seat (Front Passenger's Seat) |
| 30A | S/ROOF | Sliding Roof |
| 30A | TI&TE | Power Tilt and Power Telescopic |
