ECM Power Source Circuit (03/2012 - 07/2012): Wiring Diagram

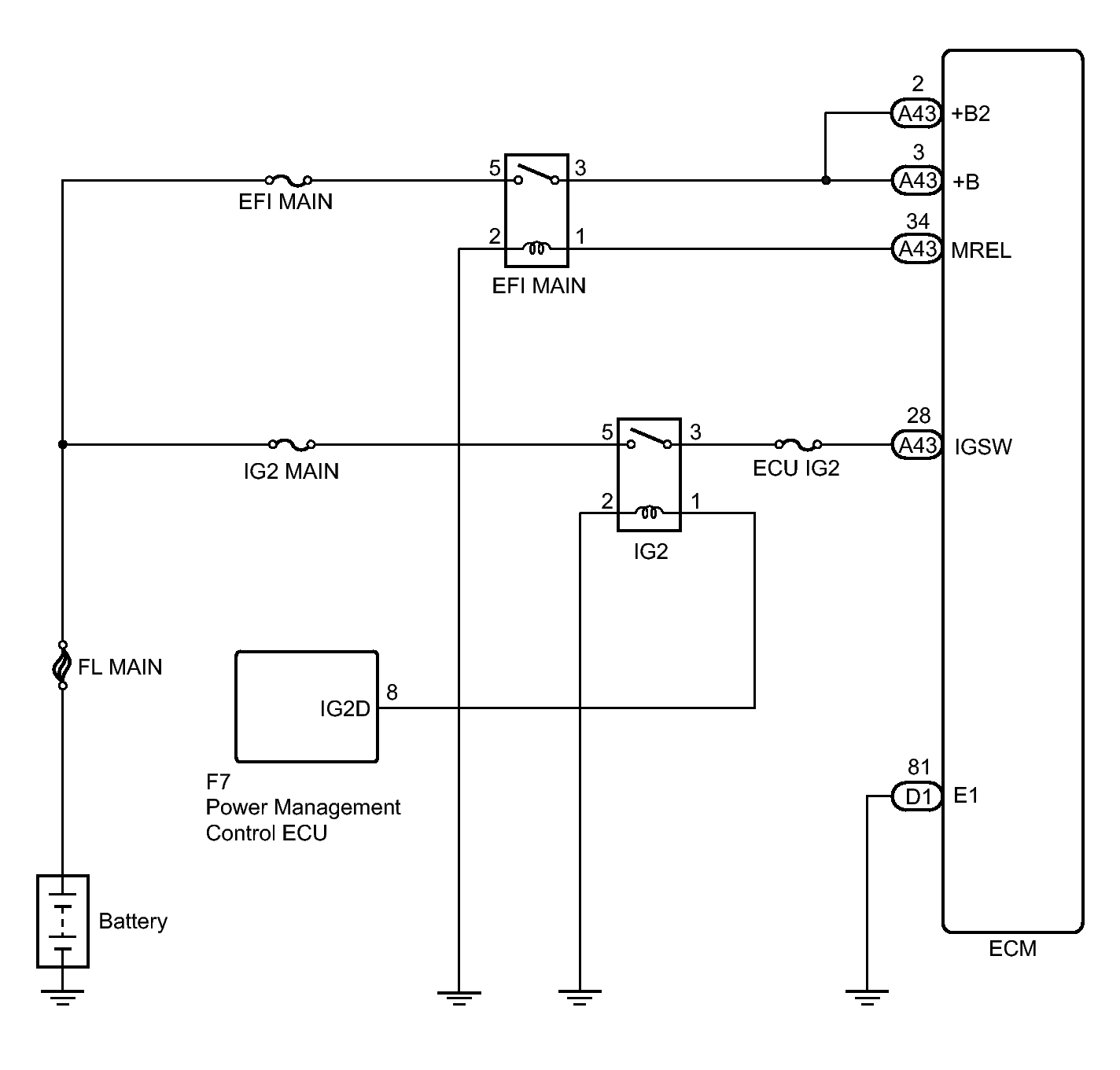

Fig 1: ECM Power Source Circuit Wiring Diagram
GTY403944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
