DTC B1781: Front Occupant Classification Sensor RH Circuit Malfunction (03/2012 - 07/2012): Wiring Diagram

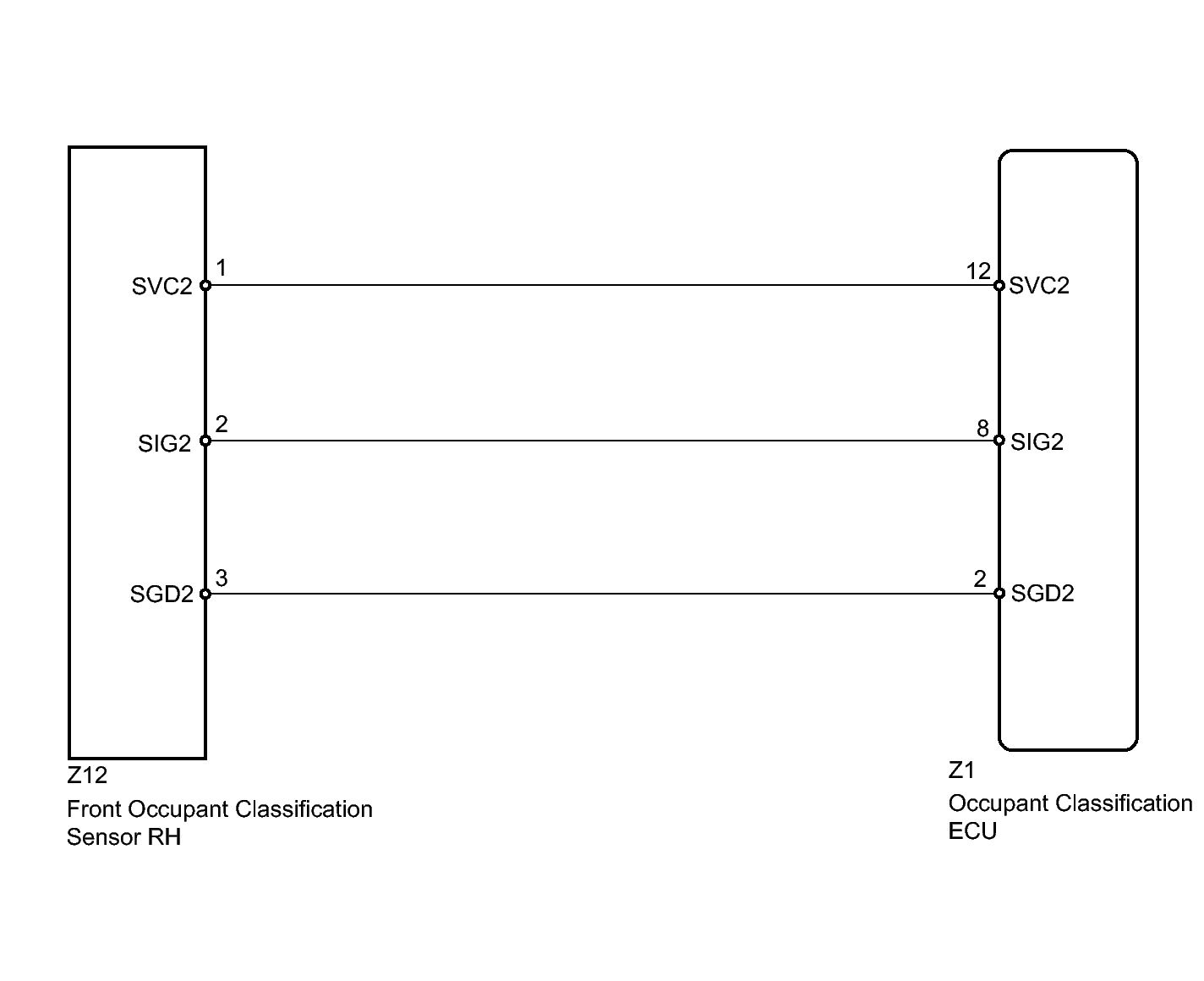

Fig 1: Front Occupant Classification Sensor RH Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
