DTC B1790: Center Airbag Sensor Assembly Communication Circuit Malfunction (03/2012 - 07/2012): Procedure

  1. CHECK CONNECTORS
    1. Turn the engine switch off.
    2. Disconnect the cable from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Check that the connectors are properly connected to the center airbag sensor assembly and occupant classification ECU. Also check that the connectors that link the front seat wire RH and floor wire are properly connected.

      OK

      The connectors are properly connected.

      HINT:

      If the connectors are not connected securely, reconnect the connectors and proceed to the next inspection.

    4. Disconnect the connectors from the center airbag sensor assembly and occupant classification ECU. Also disconnect the connectors that link the front seat wire RH and floor wire.
    5. Check that the terminals of connectors are not damaged.

      OK

      The terminals are not deformed or damaged.

    NG → REPLACE WIRE HARNESS

    OK: Go to next step

  2. CHECK OCCUPANT CLASSIFICATION SYSTEM CIRCUIT (SHORT TO B+)
    1. Connect the cable to the negative (-) battery terminal.
      GTY255493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the engine switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      Z4-8 (FSR+) - Body ground Engine switch on (IG) Below 1 V
      Z4-4 (FSR-) - Body ground Engine switch on (IG) Below 1 V
      TEXT IN ILLUSTRATION

      *1 Occupant Classification ECU
      *2 Center Airbag Sensor Assembly
      *3 Front view of wire harness connector
      (to Occupant Classification ECU)
      *4 Connector E

    NG → See step   11

    OK: Go to next step

  3. CHECK OCCUPANT CLASSIFICATION SYSTEM CIRCUIT (OPEN)
    1. Turn the engine switch off.

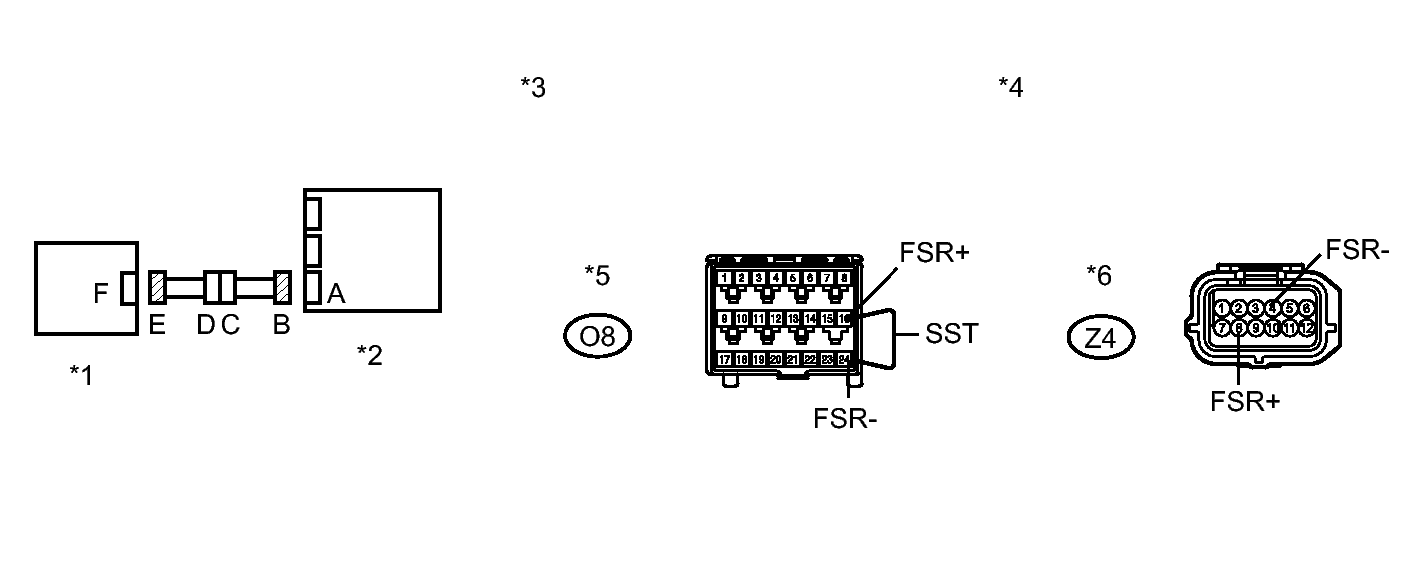

      GTY269139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the cable from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Using SST, connect terminals 16 (FSR+) and 24 (FSR-) of connector B.
      NOTE:

      Do not forcibly insert SST into the terminals of the connector when connecting.

      • SST: 09843-18040
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Z4-8 (FSR+) - Z4-4 (FSR-) Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Occupant Classification ECU *2 Center Airbag Sensor Assembly
      *3 Front view of wire harness connector
      (to Center Airbag Sensor Assembly)      		 *4 Front view of wire harness connector
      (to Occupant Classification ECU)
      *5 Connector B *6 Connector E

    NG → See step   12

    OK: Go to next step

  4. CHECK OCCUPANT CLASSIFICATION SYSTEM CIRCUIT (SHORT)
    1. Disconnect SST from connector B.

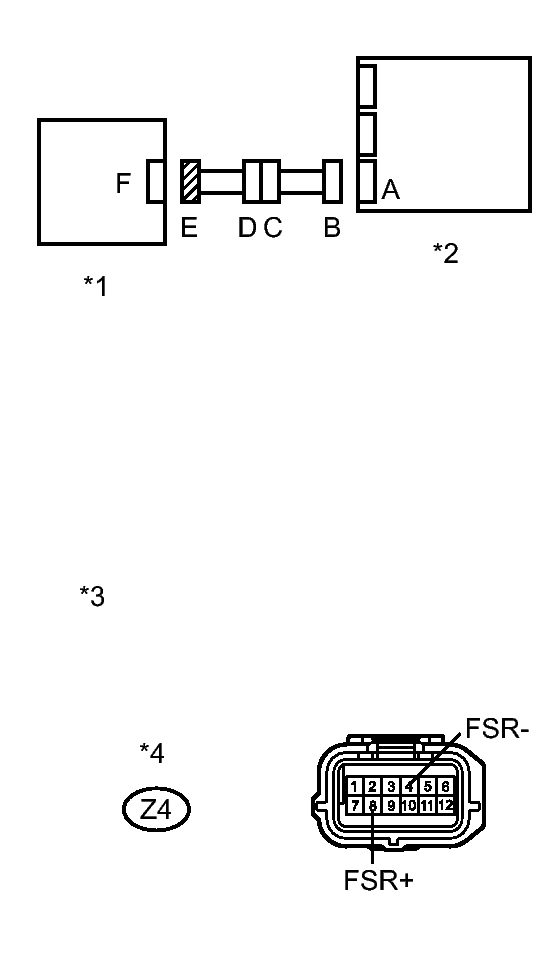

      GTY255210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Z4-8 (FSR+) - Z4-4 (FSR-) Always 1 MΩ or higher
      TEXT IN ILLUSTRATION

      *1 Occupant Classification ECU
      *2 Center Airbag Sensor Assembly
      *3 Front view of wire harness connector
      (to Occupant Classification ECU)
      *4 Connector E

    NG → See step   13

    OK: Go to next step

  5. CHECK OCCUPANT CLASSIFICATION SYSTEM CIRCUIT (SHORT TO GROUND)
    1. Measure the resistance according to the value(s) in the table below.
      GTY259101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      Z4-8 (FSR+) - Body ground Always 1 MΩ or higher
      Z4-4 (FSR-) - Body ground Always 1 MΩ or higher
      TEXT IN ILLUSTRATION

      *1 Occupant Classification ECU
      *2 Center Airbag Sensor Assembly
      *3 Front view of wire harness connector
      (to Occupant Classification ECU)
      *4 Connector E

    NG → See step   14

    OK: Go to next step

  6. RECHECK DTC
    1. Connect the connectors to the occupant classification ECU and center airbag sensor assembly.
    2. Connect the Techstream to the DLC3.
    3. Connect the cable to the negative (-) battery terminal.
    4. Turn the engine switch on (IG).
    5. Clear the DTCs stored in the occupant classification ECU. Refer to DTC CHECK / CLEAR [03/2012 - ] .
    6. Clear the DTCs stored in the center airbag sensor assembly. Refer to DTC CHECK / CLEAR [03/2012 - ] .
    7. Turn the engine switch off.
    8. Turn the engine switch on (IG).
    9. Using the Techstream, check for DTCs of the occupant classification ECU. Refer to DTC CHECK / CLEAR [03/2012 - ] .

      OK

      DTC B1790 is not output.

      HINT:

      Codes other than DTC B1790 may be output at this time, but they are not related to this check.

    NG → See step   7

    OK → See step   15

  7. REPLACE OCCUPANT CLASSIFICATION ECU
    1. Turn the engine switch off.
    2. Disconnect the cable from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Replace the occupant classification ECU. Refer to REMOVAL [03/2012 - ] .

      HINT:

      Perform the inspection using parts from a normal vehicle if possible.

    NEXT: Go to next step

  8. PERFORM ZERO POINT CALIBRATION
    1. Connect the cable to the negative (-) battery terminal.
    2. Connect the Techstream to the DLC3.
    3. Turn the engine switch on (IG).
    4. Using the Techstream, perform Zero Point Calibration. Refer to INITIALIZATION [03/2012 - ] .

      OK

      "Zero Point Calibration is complete." is displayed.

    NEXT: Go to next step

  9. PERFORM SENSITIVITY CHECK
    1. Using the Techstream, perform Sensitivity Check. Refer to INITIALIZATION [03/2012 - ] .

      Standard

      27 to 33 kg (59.5 to 72.8 lb)

    NEXT: Go to next step

  10. RECHECK DTC
    1. Turn the engine switch on (IG).
    2. Clear the DTCs stored in the occupant classification ECU. Refer to DTC CHECK / CLEAR [03/2012 - ] .
    3. Clear the DTCs stored in the center airbag sensor assembly. Refer to DTC CHECK / CLEAR [03/2012 - ] .
    4. Turn the engine switch off.
    5. Turn the engine switch on (IG).
    6. Using the Techstream, check for DTCs of the occupant classification ECU. Refer to DTC CHECK / CLEAR [03/2012 - ] .

      OK

      DTC B1790 is not output.

      HINT:

      Codes other than DTC B1790 may be output at this time, but they are not related to this check.

    NG → See step   16

    OK → END

  11. CHECK FLOOR WIRE (SHORT TO B+)
    1. Turn the engine switch off.
      GTY273891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the cable from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Disconnect the front seat wire RH connector from the floor wire.
    4. Connect the cable to the negative (-) battery terminal.
    5. Turn the engine switch on (IG).
    6. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      OZ2-1 (FSR+) - Body ground Engine switch on (IG) Below 1 V
      OZ2-4 (FSR-) - Body ground Engine switch on (IG) Below 1 V
      TEXT IN ILLUSTRATION

      *1 Front Seat Wire RH
      *2 Occupant Classification ECU
      *3 Center Airbag Sensor Assembly
      *4 Floor Wire
      *5 Front view of wire harness connector
      (to Front Seat Wire RH)
      *6 Connector C

    NG → REPLACE FLOOR WIRE

    OK → REPLACE FRONT SEAT WIRE RH

  12. CHECK FLOOR WIRE (OPEN)
    1. Disconnect the front seat wire RH connector from the floor wire.
      GTY275209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      SST has already been inserted into connector B.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      OZ2-1 (FSR+) - OZ2-4 (FSR-) Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Front Seat Wire RH *2 Occupant Classification ECU
      *3 Center Airbag Sensor Assembly *4 Floor Wire
      *5 Front view of wire harness connector
      (to Center Airbag Sensor Assembly)      		 *6 Front view of wire harness connector
      (to Front Seat Wire RH)
      *7 Connector B *8 Connector C

    NG → REPLACE FLOOR WIRE

    OK → REPLACE FRONT SEAT WIRE RH

  13. CHECK FLOOR WIRE (SHORT)
    1. Disconnect the front seat wire RH connector from the floor wire.

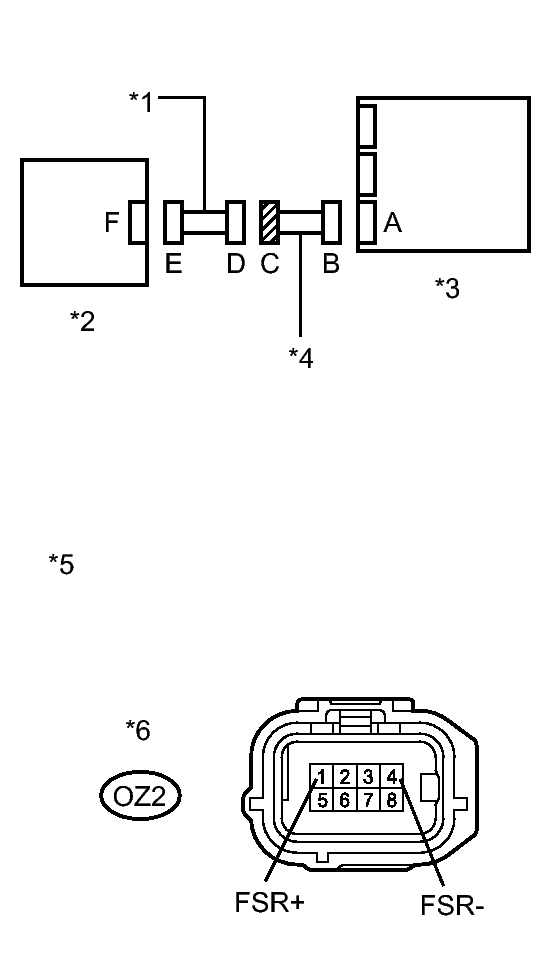

      GTY273683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      OZ2-1 (FSR+) - OZ2-4 (FSR-) Always 1 MΩ or higher
      TEXT IN ILLUSTRATION

      *1 Front Seat Wire RH
      *2 Occupant Classification ECU
      *3 Center Airbag Sensor Assembly
      *4 Floor Wire
      *5 Front view of wire harness connector
      (to Front Seat Wire RH)
      *6 Connector C

    NG → REPLACE FLOOR WIRE

    OK → REPLACE FRONT SEAT WIRE RH

  14. CHECK FLOOR WIRE (SHORT TO GROUND)
    1. Disconnect the front seat wire RH connector from the floor wire.

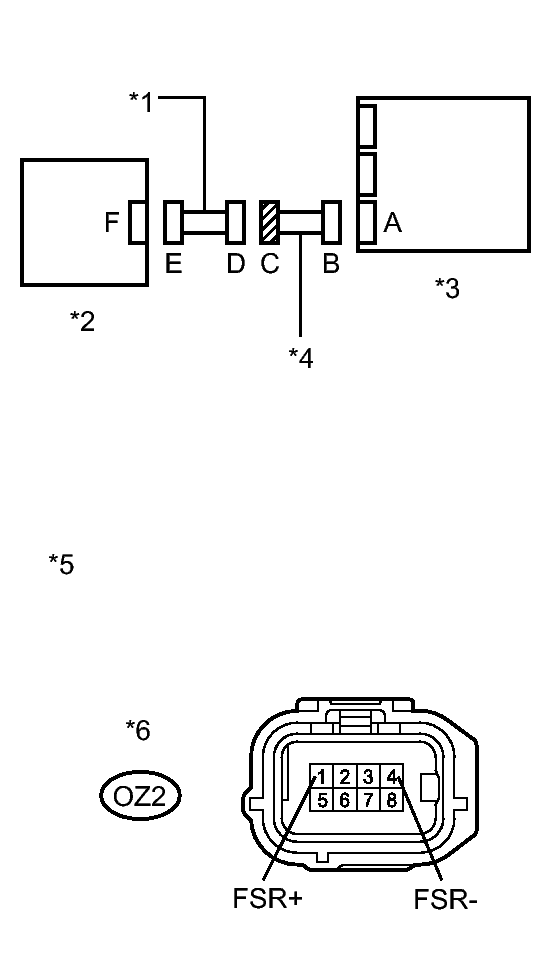

      GTY271653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      OZ2-1 (FSR+) - Body ground Always 1 MΩ or higher
      OZ2-4 (FSR-) - Body ground Always 1 MΩ or higher
      TEXT IN ILLUSTRATION

      *1 Front Seat Wire RH
      *2 Occupant Classification ECU
      *3 Center Airbag Sensor Assembly
      *4 Floor Wire
      *5 Front view of wire harness connector
      (to Front Seat Wire RH)
      *6 Connector C

    NG → REPLACE FLOOR WIRE

    OK → REPLACE FRONT SEAT WIRE RH

  15. USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [03/2012 - 07/2012]
  16. REPLACE CENTER AIRBAG SENSOR ASSEMBLY. Refer to  REMOVAL [03/2012 - 07/2012]
