Occupant Classification System (Diagnostic Codes & Symptom Tests)
>>
Occupant Classification System
>>
DTC B1793: Occupant Classification Sensor Power Supply Circuit Malfunction (03/2012 - 07/2012)
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC B1793: Occupant Classification Sensor Power Supply Circuit Malfunction (03/2012 - 07/2012): Wiring Diagram

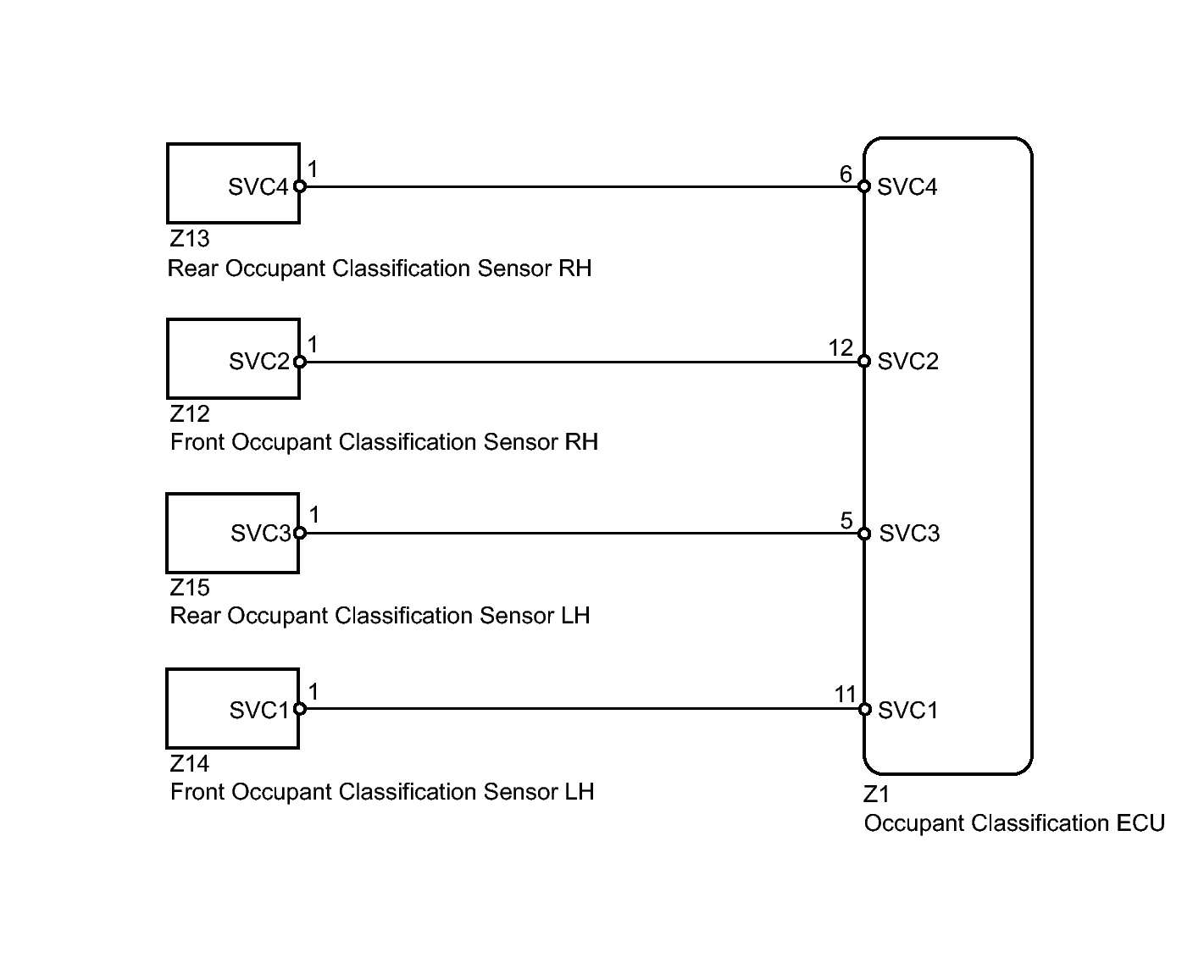

Fig 1: Occupant Classification Sensor Power Supply Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
