Reassembly [03/2012 - ]

1. Install the multiplex tilt and telescopic ECU with the bolt.

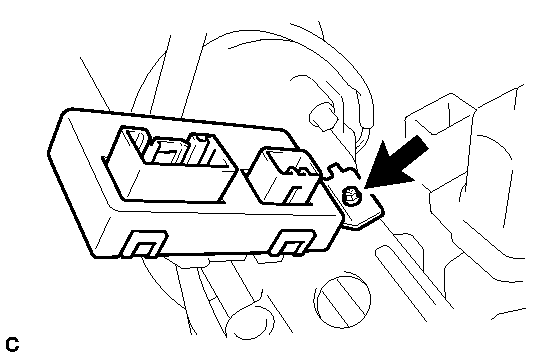

   Fig 1: Removing Bolt And Multiplex Tilt And Telescopic ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 2.8 N*m (29 kgf*cm, 25 in.*lbf)

2. Connect the connector to the multiplex tilt and telescopic ECU.

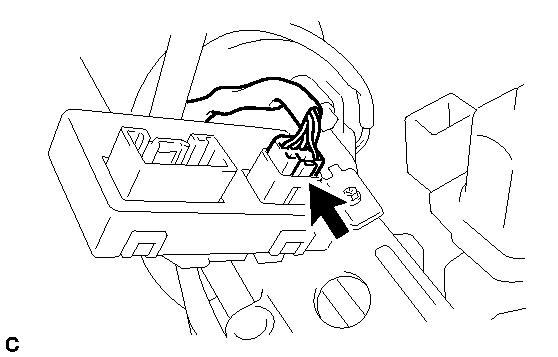

   Fig 2: Disconnecting Connector From Multiplex Tilt And Telescopic ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When replacing the steering lock actuator assembly, perform key registration. Refer to REGISTRATION [03/2012 - ] .

1. Temporarily install the steering lock actuator assembly with 2 new tapered-head bolts.

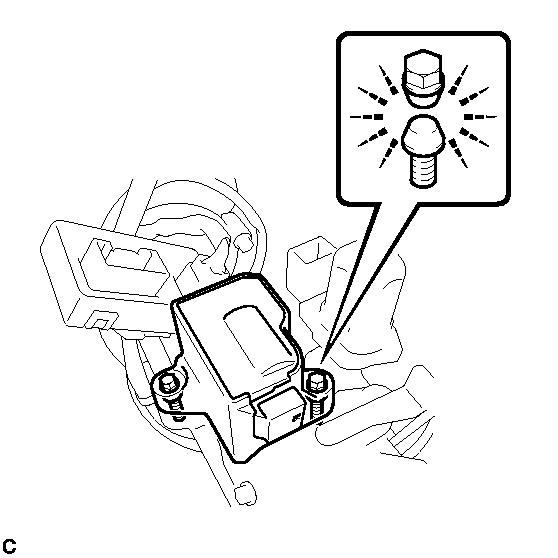

   Fig 3: Installing Steering Lock Actuator Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Tighten the 2 tapered-head bolts until the bolt heads break off.
