RX 350 Base, AWD
>>
Repair and Diagnosis (Single Page)
>>
Transmission
>>
Transfer Case
>>
Active Torque Control 4WD System (Diagnostic Codes & Circuit Tests)
>>
Active Torque Control 4WD System
>>
Circuit Tests
>>
AWD Control Switch Circuit
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
AWD Control Switch Circuit: Wiring Diagram

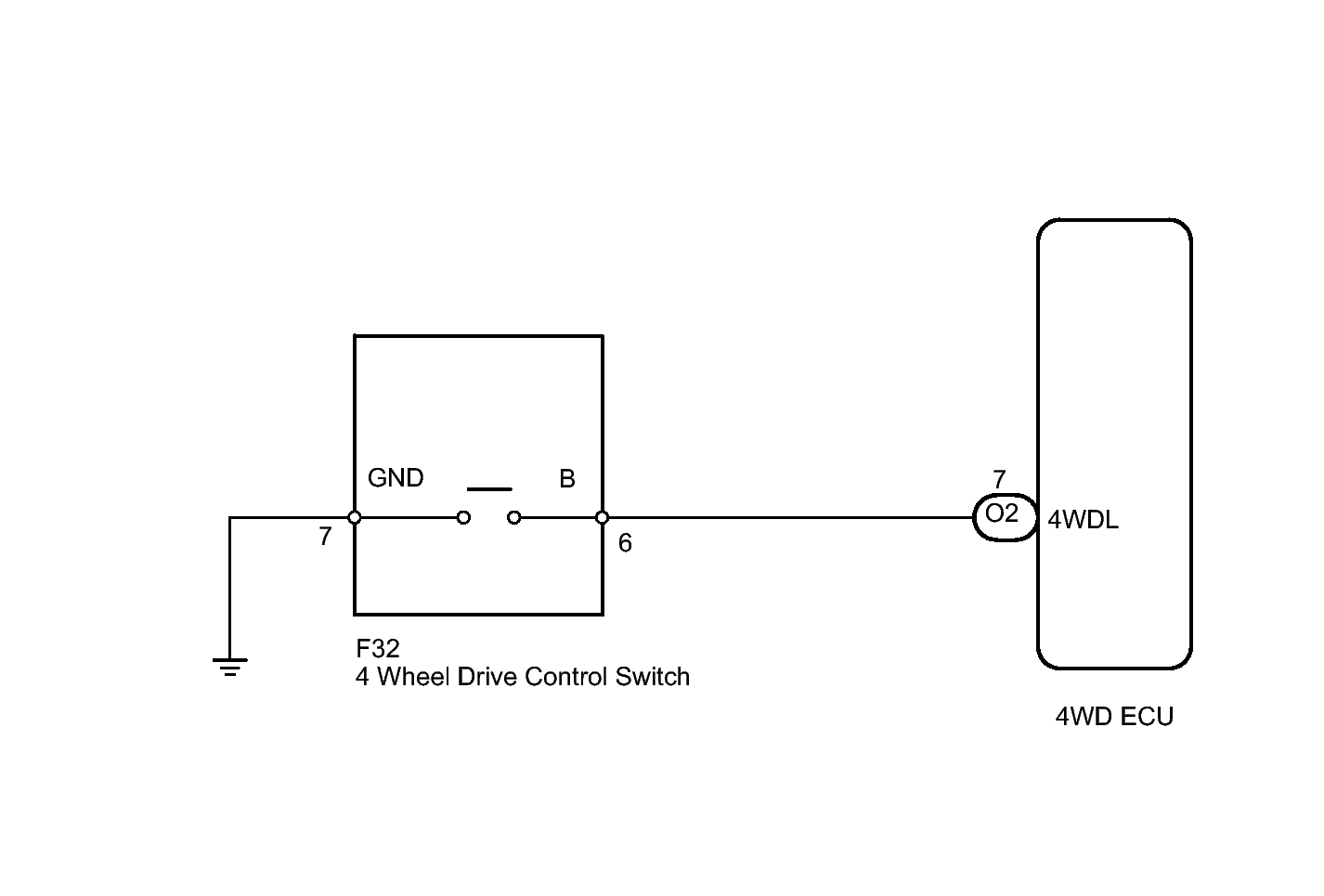

Fig 1: AWD Control Switch Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
