Steering Pad Switch Circuit (03/2012 - 07/2012): Wiring Diagram

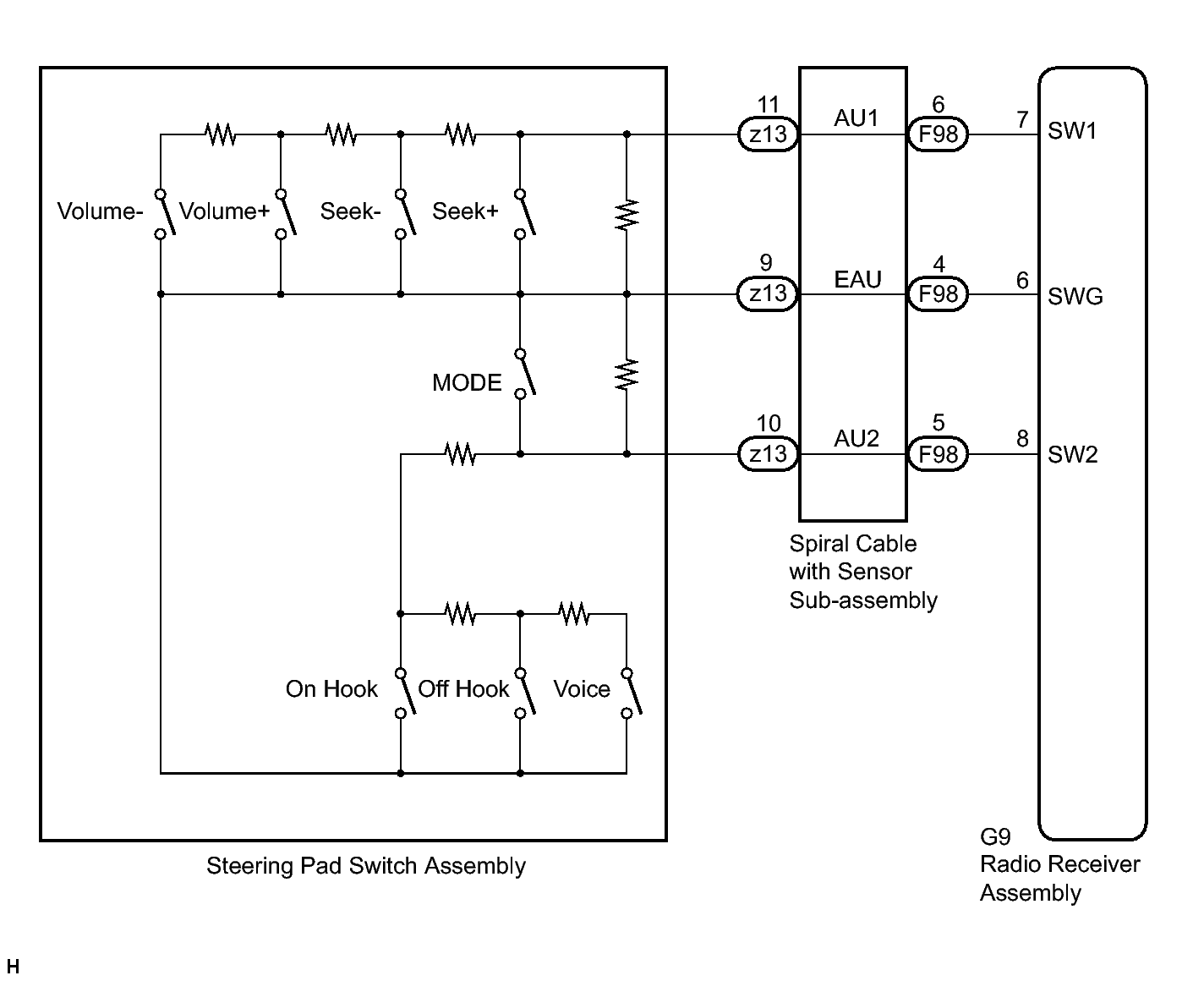

Fig 1: Steering Pad Switch Assembly Wiring Diagram
GTY414098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
