Terminals Of Ecu [08/2013 - ]
- CHECK POWER MANAGEMENT CONTROL ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

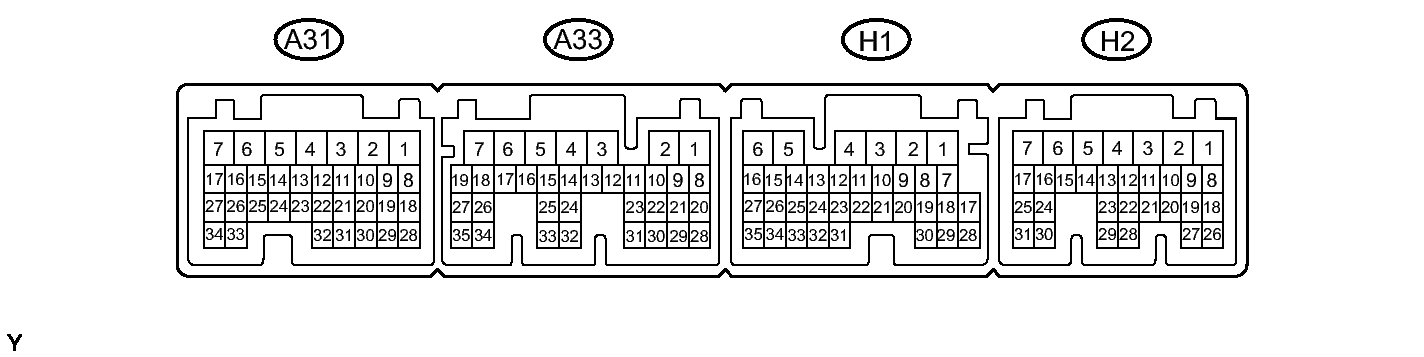

- Disconnect the A33, H1 and H2 power management control ECU connectors.
- Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
Tester Connection Input/Output Wiring Color Terminal Description Condition Specified Condition Related Data List Item A33-2 (IG2D) - Body ground Output R - Body ground IG2 signal 20°C (68°F) Approximately 310.14 Ω IG2 Relay Monitor(Outside) A33-23 (STP) - Body ground Input W - Body ground Stop light switch signal Brake pedal depressed → Brake pedal released 9 V or higher → 1 V or less Stop Light Switch1 H1-1 (AM22) - Body ground Input P - Body ground Power source Power switch off 11 to 14 V - H2-7 (AM21) - Body ground Input LG - Body ground Power source Power switch off 11 to 14 V - H2-16 (SLP) - Body ground Input P - Body ground Steering lock position signal Always 10 kΩ or higher Steering Unlock Switch H1-5 (E01) - Body ground - W-B - Body ground Ground Always Below 1 Ω - H2-5 (E02) - Body ground - W-B - Body ground Ground Always Below 1 Ω - H1-6 (E1) - Body ground - BR - Body ground Ground Always Below 1 Ω - H2-4 (E12) - Body ground - BR - Body ground Ground Always Below 1 Ω - H2-17 (SSW2) - Body ground Input V - Body ground SSW2 contact signal
HINT:
Backup for SSW1. Behaves the same way as SSW1.Power switch pushed → Power switch not pushed Below 1 Ω → 10 kΩ or higher Start Switch2 H1-7 (SSW1) - Body ground Input LG - Body ground SSW1 contact signal Power switch pushed → Power switch not pushed Below 1 Ω → 10 kΩ or higher Start Switch1 H2-2 (IG1D) - Body ground Output G - Body ground IG1 signal 20°C (68°F) 91.28 to 136.93 Ω IG1 Relay Monitor(Outside) H2-1 (ACCD) - Body ground Output W - Body ground ACC signal 20°C (68°F) 125.95 to 188.93 Ω ACC Relay Monitor H1-14 (SPDI) - H1-6 (E1) Input V - BR Vehicle speed signal Always 30 kΩ or higher Vehicle Speed Signal H1-15 (P2) - H1-6 (E1) Input L - BR P position signal Shift lever in P → Shift lever not in P 40 kΩ or higher → 200 Ω or less Shift P Signal - Reconnect the A33, H1 and H2 power management control ECU connectors.
- Measure the voltage and check for pulses according to the value(s) in the table below.
Tester Connection Input/Output Wiring Color Terminal Description Condition Specified Condition Related Data List Item A33-2 (IG2D) - H1-6 (E1) Output R - BR IG2 signal Power switch on (ACC) → Power switch on (IG) 1 V or less → 9 V or higher IG2 Relay Monitor(Outside) H2-16 (SLP) - H1-6 (E1) Input P - BR Steering lock position signal Steering locked → Steering unlocked*1 11 to 14 V → 1.2 V or less Steering Unlock Switch H2-6 (SLR+) - H1-6 (E1) Output L - BR Steering lock motor operation command signal (Steering lock motor operation permission signal sent from the certification ECU (smart key ECU assembly)) Steering lock motor stopped → Steering lock motor operating → Steering lock motor stopped*2 Pulse generation (See waveform 1) - H1-15 (P2) - H1-6 (E1) Input L - BR P position signal Shift lever in P → Shift lever not in P 9 V or higher → 1.5 V or less Shift P Signal H2-17 (SSW2) - H1-6 (E1) Input V - BR SSW2 contact signal
HINT:
Backup for SSW1. Behaves the same way as SSW1.Power switch not pushed → Power switch pushed 9 V or higher → 1 V or less Start Switch2 H1-7 (SSW1) - H1-6 (E1) Input LG - BR SSW1 contact signal Power switch not pushed → Power switch pushed 9 V or higher → 1 V or less Start Switch1 H2-1 (ACCD) - H1-6 (E1) Output W - BR ACC signal Power switch off → Power switch on (ACC) 1 V or less → 8.5 V or higher ACC Relay Monitor H2-2 (IG1D) - H1-6 (E1) Output G - BR IG1 signal Power switch on (ACC) → Power switch on (IG) 1 V or less → 9 V or higher IG1 Relay Monitor(Outside) H1-14 (SPDI) - H1-6 (E1) Input V - BR Vehicle speed signal Vehicle being driven at approx. 5 km/h (3 mph) Pulse generation
(See waveform 2)Vehicle Speed Signal HINT:
- *1: When the power switch is turned off with the shift lever in P and any of the doors are opened or closed, the steering will be locked. When the power switch is turned on (ACC) or on (IG), the steering will be unlocked.
- *2: When all of the following conditions are met, open any of the doors to operate the steering lock motor.
- The shift lever is in P.
- The power switch is off.
- While the electrical key transmitter sub-assembly is being carried, the power switch is turned on (IG) and the steering is unlocked.
- Using an oscilloscope, check the waveform of the ECU.
- Waveform 1
Item Content Tester Connection H2-6 (SLR+) - H1-6 (E1) Tool Setting 2 V/DIV., 200 ms./DIV. Condition Steering lock motor stopped →
Steering lock motor operating →
Steering lock motor stoppedTEXT IN ILLUSTRATION*a Steering lock motor not operating *b Steering lock motor operating HINT:
When all of the following conditions are met, open any of the doors to operate the steering lock motor.
- The shift lever is in P.
- The power switch is off.
- While the electrical key transmitter sub-assembly is being carried, the power switch is turned on (IG) and the steering is unlocked.
- Waveform 2
Item Content Tester Connection H1-14 (SPDI) - H1-6 (E1) Tool Setting 5 V/DIV., 20 ms./DIV. Condition Power switch on (IG), vehicle being driven at approx. 5 km/h (3 mph) HINT:
The wavelength becomes shorter as the vehicle speed increases.
- Waveform 1
