DCM Data Signal Circuit between Navigation ECU and DCM [09/2013 - ]: Wiring Diagram

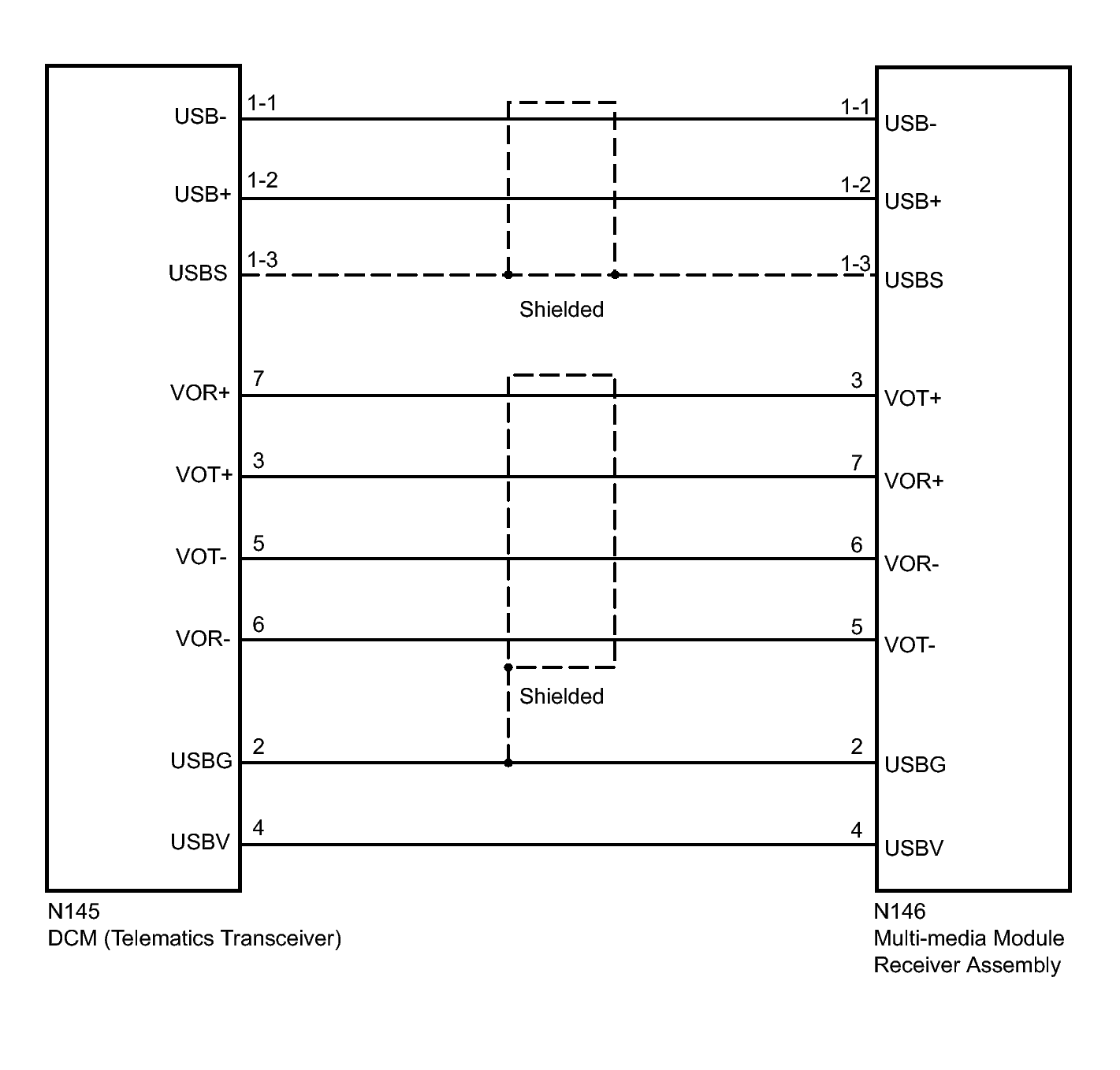

Fig 1: DCM Data Signal Wiring Diagram
GTY417900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
