Pattern Select Switch Snow Mode Circuit [09/2013 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Pattern Select Switch Snow Mode Circuit [09/2013 - ]: Wiring Diagram

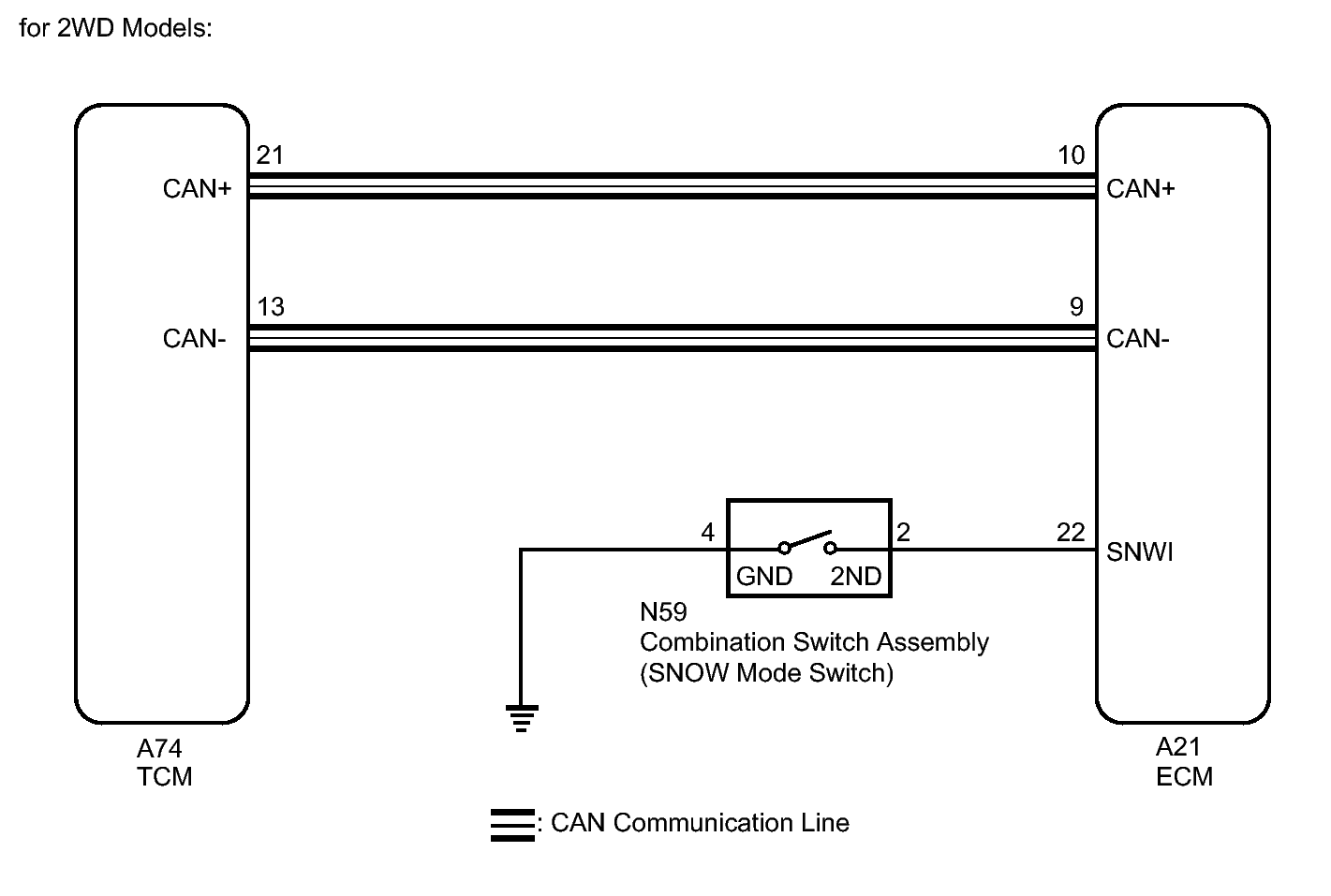

Fig 1: Snow Mode Switch Wiring Diagram (2WD)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Snow Mode Switch Wiring Diagram (AWD)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
