Display Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter [08/2013 - ]: Wiring Diagram

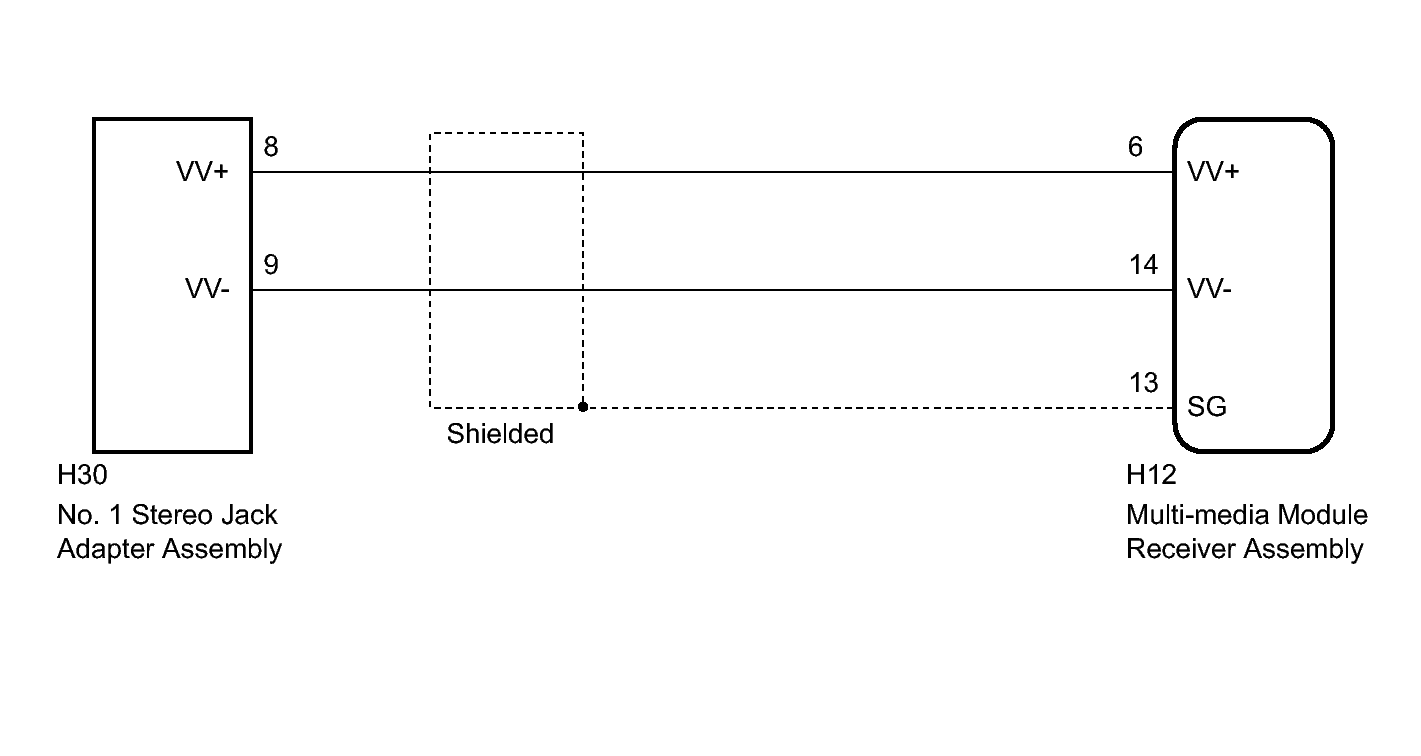

Fig 1: No. 1 Stereo Jack Adapter Wiring Diagram
GTY464947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
