Sound Signal Circuit between Navigation Receiver Assembly and Stereo Component Amplifier [08/2013 - ]: Wiring Diagram

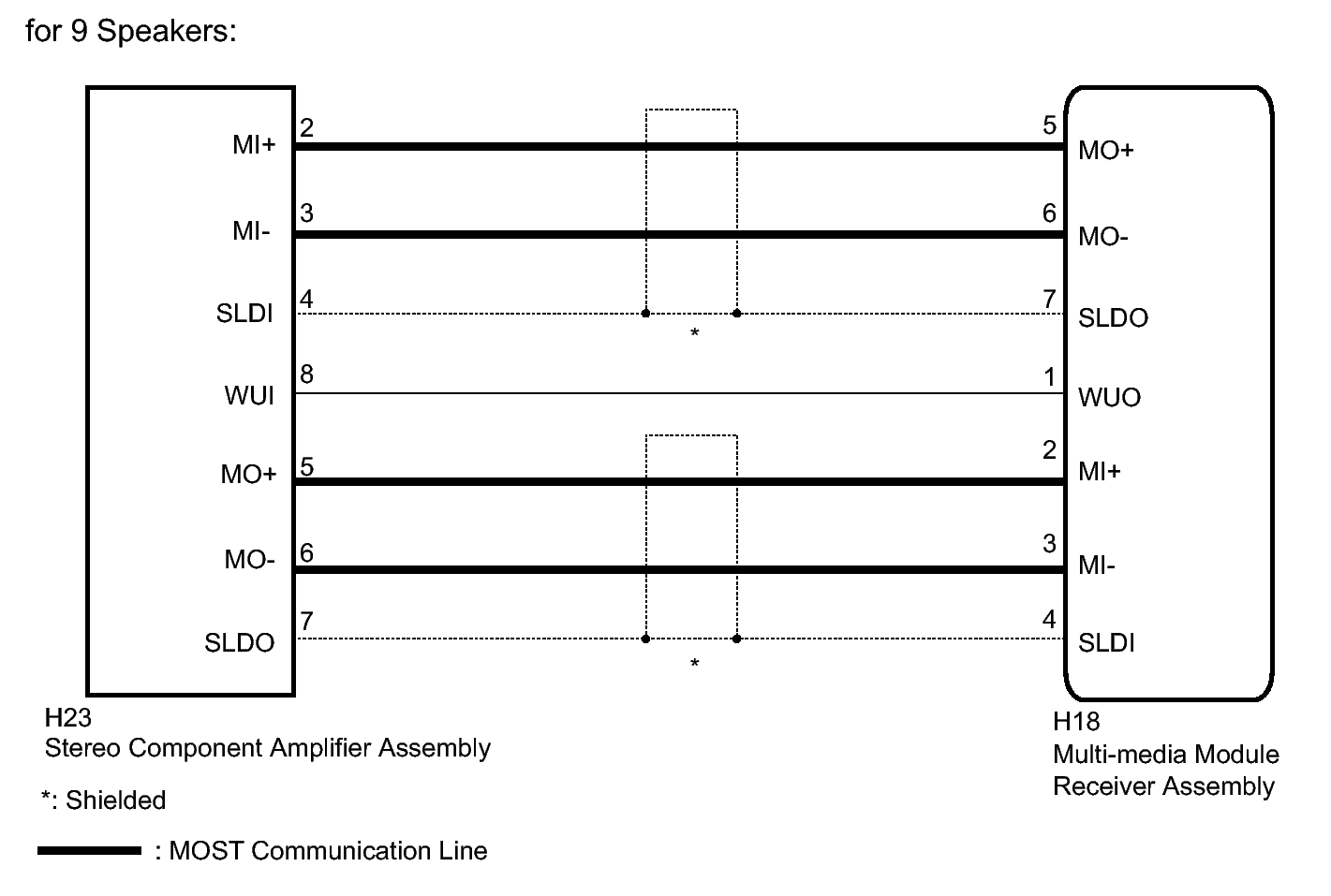

Fig 1: Stereo Component Amplifier Wiring Diagram (For 9 Speakers)
GTY464329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

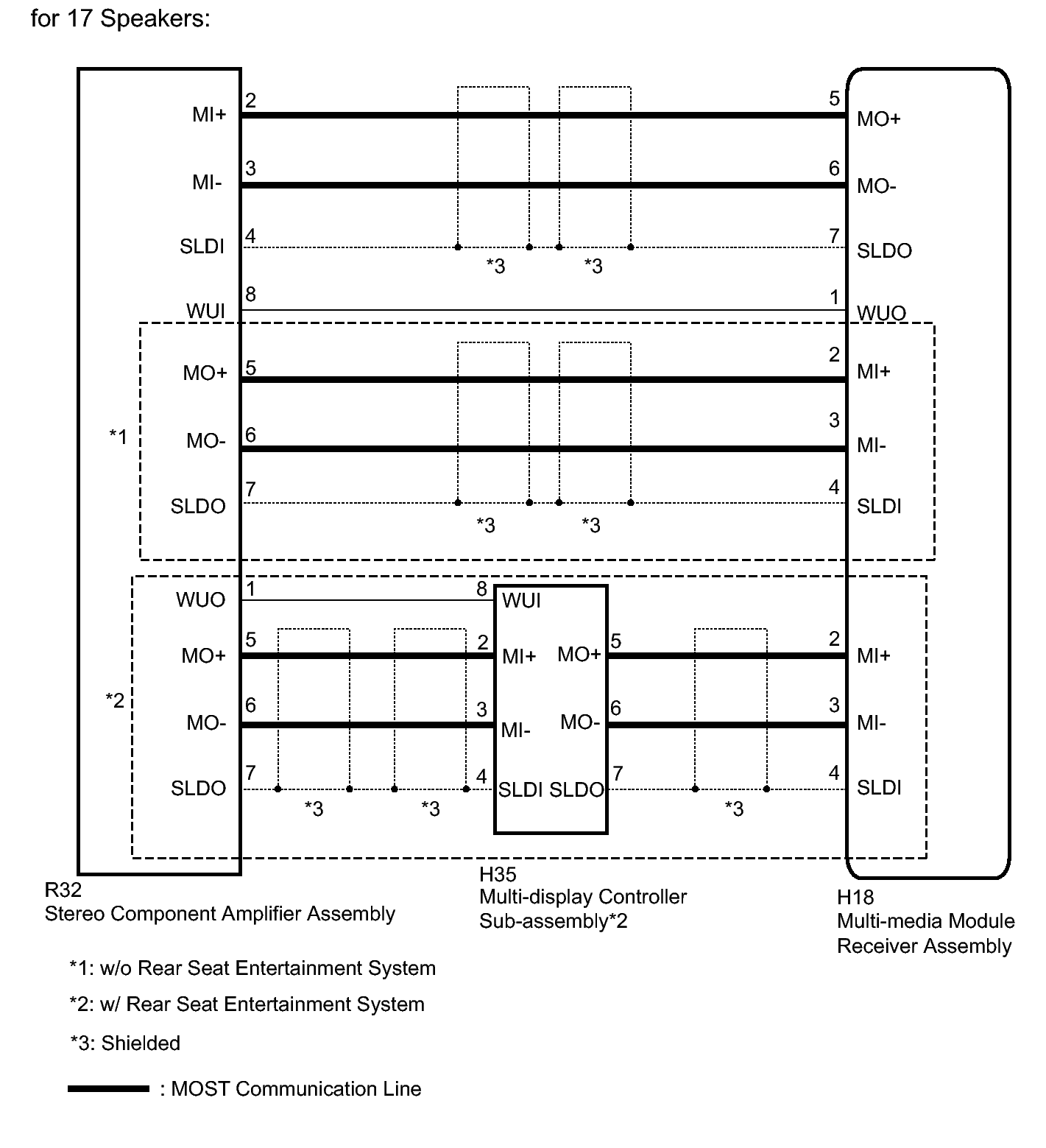

Fig 2: Stereo Component Amplifier Wiring Diagram (For 17 Speakers)
GTY469938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
