Components [04/2013 - 09/2020]

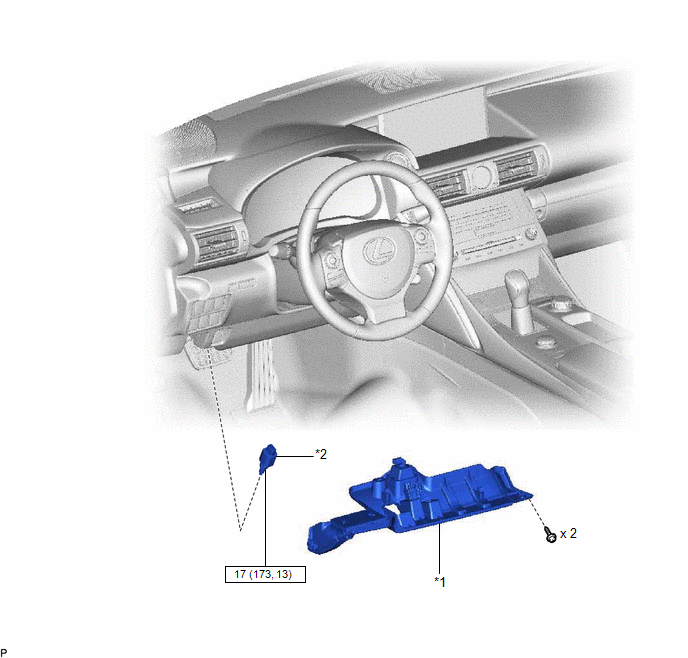

Fig 1: Stop Light Switch Replacement Components With Torque Specifications [04/2013 - 09/2020]
GTY459633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY *2 STOP LIGHT SWITCH ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -
