Inspection [04/2013 - ]: Procedure

  1. INSPECT STEERING HEATER SWITCH (REFRESHING SEAT SWITCH)
    1. Remove the steering heater switch (refreshing seat switch).

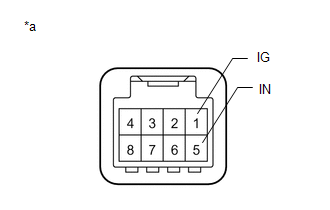

      GTY458635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected (Steering Heater Switch (Refreshing Seat Switch))

      Refer to REMOVAL [04/2013 - 09/2020] , or refer to REMOVAL [09/2020 - ]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 (IG) - 5 (IN) Steering heater switch (refreshing seat switch) is pushed Below 200 Ω
      1 (IG) - 5 (IN) Steering heater switch (refreshing seat switch) is not pushed 10 kΩ or higher
