Operation Check [10/2016 - 09/2020]

  1. MALFUNCTION DISPLAY (MULTI-INFORMATION DISPLAY)
    1. Open circuit indication
      1. If there is an open circuit between a No. 1 ultrasonic sensor or No. 2 ultrasonic sensor and the clearance warning ECU assembly or a sensor is malfunctioning, the malfunction is displayed as shown in the illustration.
        GTY469941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        If a sensor has an open circuit, check for DTCs and troubleshoot according to each inspection procedure.

        Refer to DTC CHECK / CLEAR [04/2013 - 09/2020]

    2. Frozen indication
      1. If a sensor is covered with foreign matter, such as mud or snow, the affected sensor is displayed as shown in the illustration.

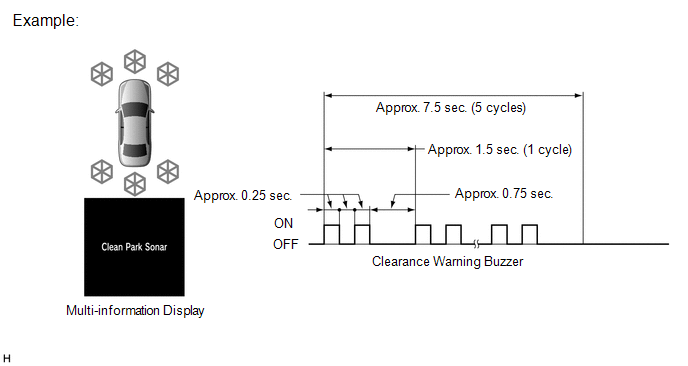

        GTY466007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        • If a frozen indication is displayed, read Precaution for Intuitive Parking Assist System first and confirm that the sensor is not covered with foreign matter.

          Refer to PRECAUTION [10/2016 - 09/2020]

        • Check for DTCs and troubleshoot according to each inspection procedure after confirming that the sensor is not covered with foreign matter.

          Refer to DTC CHECK / CLEAR [04/2013 - 09/2020]

  2. MALFUNCTION DISPLAY (MULTI-DISPLAY)
    1. Open circuit indication
      1. If there is an open circuit between the No. 1 ultrasonic sensor or No. 2 ultrasonic sensor and the clearance warning ECU assembly or a sensor is malfunctioning, the malfunction is displayed as shown in the illustration.

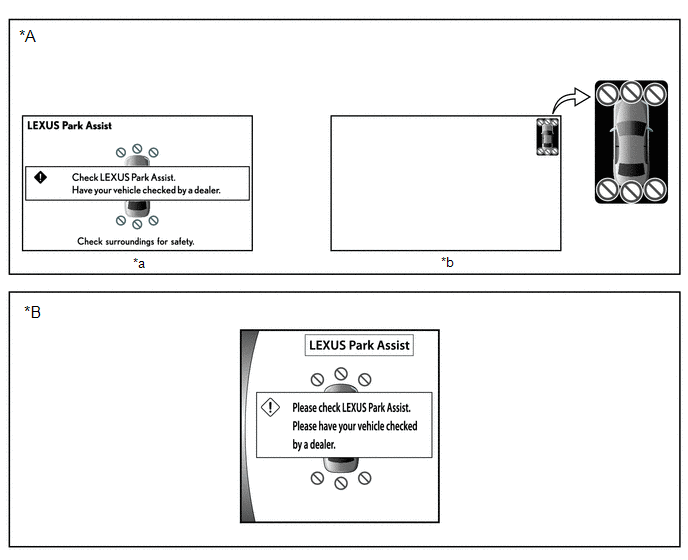

        GTY652678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for 7 Inch Display *B for 10.3 Inch Display
        *a When the shift lever is not in P or R *b When the shift lever is in R

        HINT:

        If a sensor has an open circuit, check for DTCs and troubleshoot according to each inspection procedure.

        Refer to DTC CHECK / CLEAR [04/2013 - 09/2020]

    2. Frozen indication
      1. If a sensor is covered with foreign matter, such as mud or snow, the affected sensor is displayed as shown in the illustration.

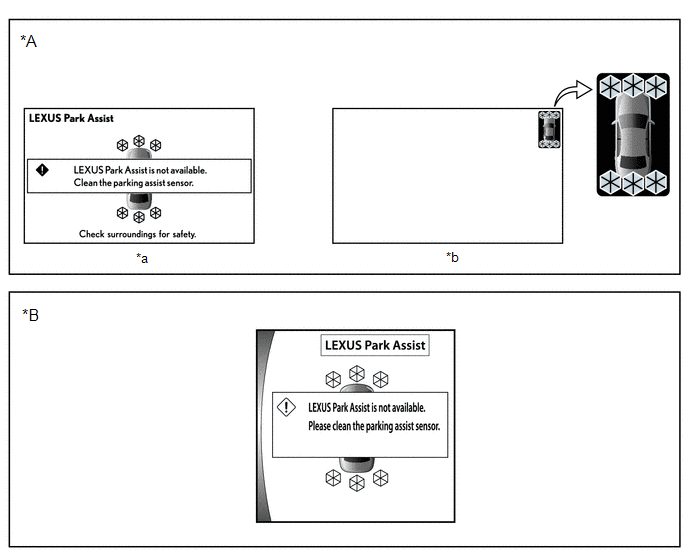

        GTY667954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for 7 Inch Display *B for 10.3 Inch Display
        *a When the shift lever is not in P or R *b When the shift lever is in R

        HINT:

        • If a frozen indication is displayed, read Precaution for Intuitive Parking Assist System first and confirm that the sensor is not covered with foreign matter.

          Refer to PRECAUTION [10/2016 - 09/2020]

        • Check for DTCs and troubleshoot according to each inspection procedure after confirming that the sensor is not covered with foreign matter.

          Refer to DTC CHECK / CLEAR [04/2013 - 09/2020]

  3. DETECTION RANGE MEASUREMENT AND DISPLAY INSPECTION
    NOTE:

    The following measurement and inspection will be performed with the shift lever in a position other than P. Be sure to apply the parking lever and depress the brake pedal firmly to prevent the vehicle from moving.

    1. Turn the engine switch on (IG).
    2. Turn the back sonar or clearance sonar switch assembly on.
    3. Detection range measurement:
      1. Move the shift lever according to the table below.
        Measurement Area Shift Lever Position
        Front Corner In any position other than P
        Front Center In any position other than P or R
        Rear Corner R
        Rear Center
      2. Move a 60 mm (2.4 in.) diameter pole near each sensor to measure its detection range. When measuring the longest-range detection of the front center sonar and the rear center sonar, use a wall or equivalent.
        NOTE:

        These detection ranges are applicable when positioning the 60 mm (2.4 in.) diameter pole parallel or perpendicular to the ground. The detection range varies depending on the measuring method and type of obstacle (such as walls).

        HINT:

        Have an assistant move the pole.

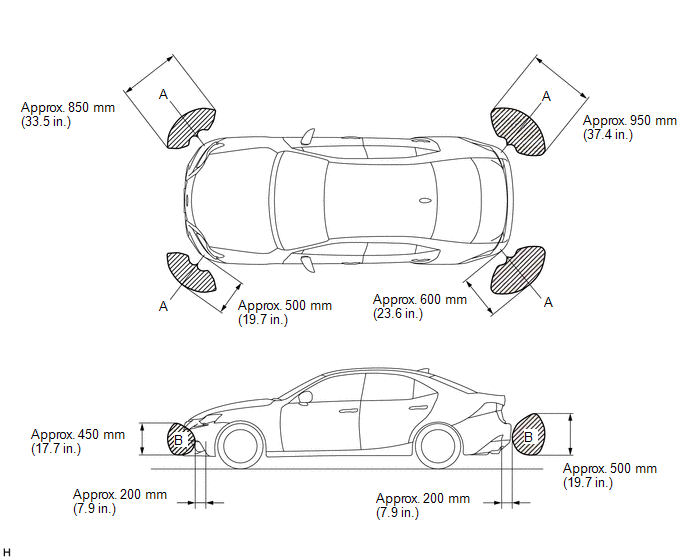

        Corner Sonar Detection Range

        GTY462051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        The No. 1 ultrasonic sensor side view detection range (hatched area labeled (B)) represents the cross section of the top view detection range (A). The hatched area (B) does not represent the entire side view detection range.

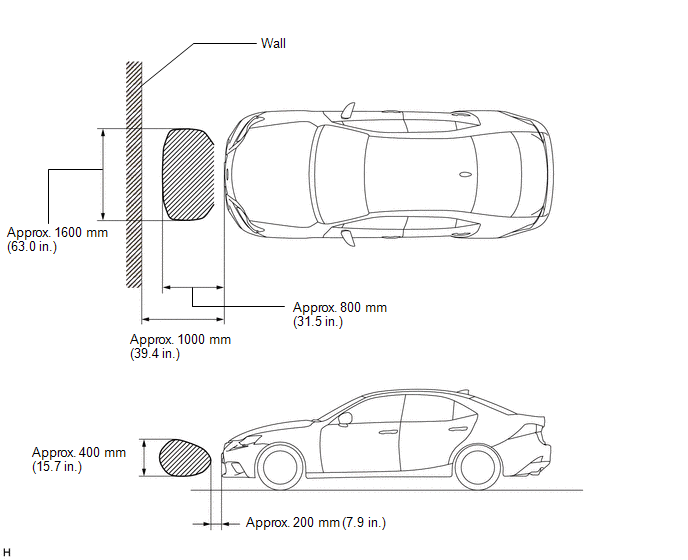

        Front Center Sonar Detection Range

        GTY468918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

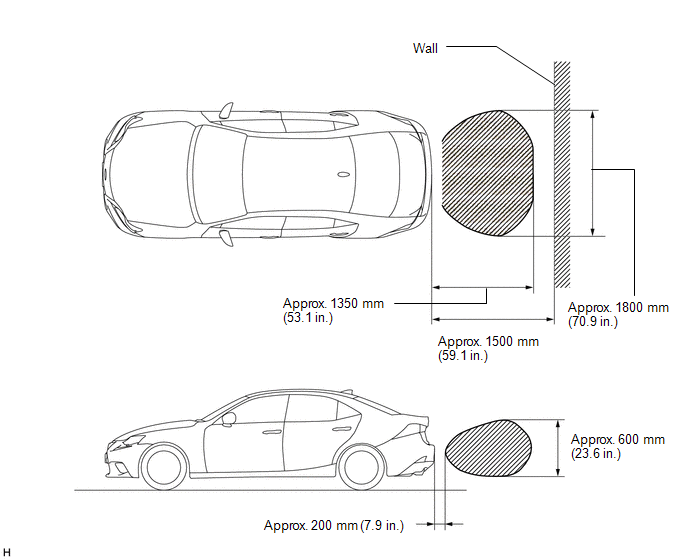

        Rear Center Sonar Detection Range

        GTY467435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Front corner sonar display and buzzer operation check
      1. When the No. 1 ultrasonic sensors (front corner sonar) have detected an obstacle, check the displays and check that the buzzer sounds.
        OPERATION CONDITION

        Engine Switch Back Sonar or Clearance Sonar Switch Assembly Shift Lever Position Vehicle Speed
        On (IG) On In any position other than P or R
        • Less than approximately 15 km/h (9 mph) if speed is increasing
        • Less than approximately 10 km/h (6 mph) if speed is decreasing
        On (IG) On R -

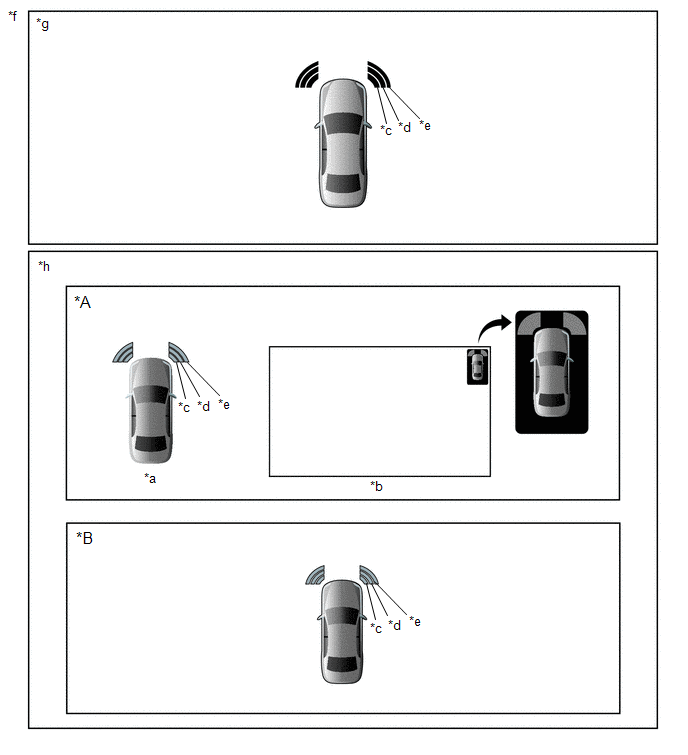

        GTY634980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for 7 Inch Display *B for 10.3 Inch Display
        *a When the shift lever is not in P or R *b When the shift lever is in R
        *c Close-range Detection *d Medium-range Detection
        *e Long-range Detection *f Example (Front Corner Sonar)
        *g Multi-information Display *h Multi-display
        GTY683091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard

        MULTI-INFORMATION DISPLAY AND BUZZER

        Detection Range During Judgment Obstacle
        Close-range detection
        Within approx. 300 +/- 50 mm (11.8 +/- 2.0 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (blinking)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 300 +/- 50 to 400 +/- 50 mm (11.8 +/- 2.0 to 15.7 +/- 2.0 in.)        		 Buzzer: Sounds intermittently (ON: 0.075 sec. / OFF: 0.075 sec.)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 400 +/- 50 to 500 +/- 50 mm (15.7 +/- 2.0 to 19.7 +/- 2.0 in.)        		 Buzzer: Sounds intermittently (ON: 0.15 sec. / OFF: 0.15 sec.)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole
        MULTI-DISPLAY AND BUZZER

        Detection Range During Judgment Obstacle
        Close-range detection
        Within approx. 300 +/- 50 mm (11.8 +/- 2.0 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (illuminated)*1
        Color of bars displayed: Red (illuminated)*2        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 300 +/- 50 to 400 +/- 50 mm (11.8 +/- 2.0 to 15.7 +/- 2.0 in.)        		 Buzzer: Sounds intermittently (ON: 0.075 sec. / OFF: 0.075 sec.)
        Number of bars displayed: 2 (illuminated)*1
        Color of bars displayed: Yellow (blinking)*2        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 400 +/- 50 to 500 +/- 50 mm (15.7 +/- 2.0 to 19.7 +/- 2.0 in.)        		 Buzzer: Sounds intermittently (ON: 0.15 sec. / OFF: 0.15 sec.)
        Number of bars displayed: 3 (illuminated)*1
        Color of bars displayed: Yellow (blinking)*2        		 60 mm (2.4 in.) diameter pole
        1. *1: When the shift lever is not in P or R
        2. *2: When the shift lever is in R

        HINT:

        Ultrasonic waves are used to measure the detection range; however, the detection range may vary depending on the ambient temperature.

    5. Front center sonar display and buzzer operation check
      1. When the No. 2 ultrasonic sensors (front center sonar) have detected an obstacle, check the display and check that the buzzer sounds.
        OPERATION CONDITION

        Engine Switch Back Sonar or Clearance Sonar Switch Assembly Shift Lever Position Vehicle Speed
        On (IG) On In any position other than P or R
        • Less than approximately 15 km/h (9 mph) if speed is increasing
        • Less than approximately 10 km/h (6 mph) if speed is decreasing

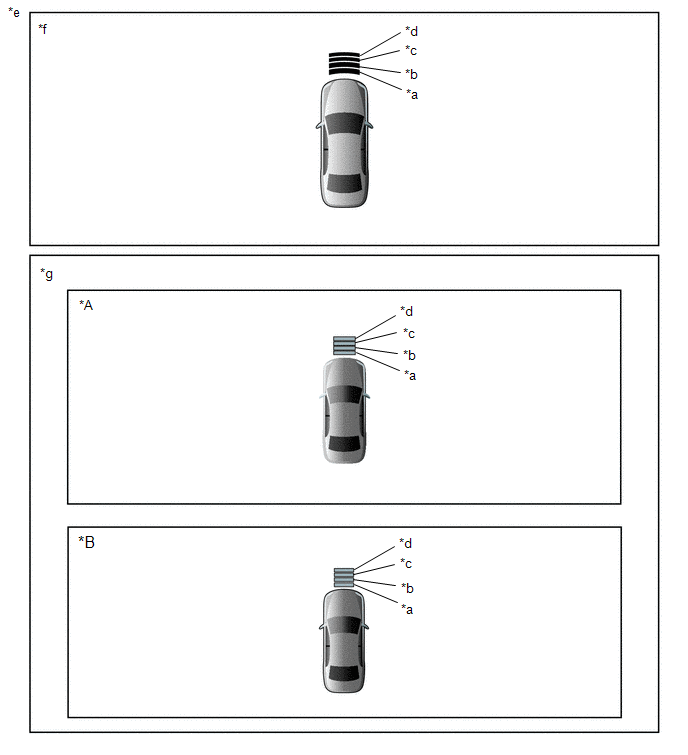

        GTY641423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for 7 Inch Display *B for 10.3 Inch Display
        *a Close-range Detection *b Medium-range Detection
        *c Long-range Detection *d Longest-range Detection
        *e Example (Front Center Sonar) *f Multi-information Display
        *g Multi-display - -
        GTY656271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard

        MULTI-INFORMATION DISPLAY AND BUZZER

        Detection Range During Detection Obstacle
        Close-range detection
        Within approx. 300 +/- 50 mm (11.8 +/- 2.0 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (blinking)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 300 +/- 50 to 400 +/- 50 mm (11.8 +/- 2.0 to 15.7 +/- 2.0 in.)        		 Buzzer: Sounds intermittently (ON: 0.075 sec. / OFF: 0.075 sec.)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 400 +/- 50 to 500 +/- 50 mm (15.7 +/- 2.0 to 19.7 +/- 2.0 in.)        		 Buzzer: Sounds intermittently (ON: 0.15 sec. / OFF: 0.15 sec.)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Longest-range detection
        From approx. 500 +/- 50 to 1000 +/- 100 mm (19.7 +/- 2.0 to 39.4 +/- 3.9 in.)        		 Buzzer: Sounds intermittently (ON: 0.15 sec. / OFF: 0.65 sec.)
        Number of bars displayed: 4 (illuminated)        		 Wall
        MULTI-DISPLAY AND BUZZER

        Detection Range During Detection Obstacle
        Close-range detection
        Within approx. 300 +/- 50 mm (11.8 +/- 2.0 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 300 +/- 50 to 400 +/- 50 mm (11.8 +/- 2.0 to 15.7 +/- 2.0 in.)        		 Buzzer: Sounds intermittently (ON: 0.075 sec. / OFF: 0.075 sec.)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 400 +/- 50 to 500 +/- 50 mm (15.7 +/- 2.0 to 19.7 +/- 2.0 in.)        		 Buzzer: Sounds intermittently (ON: 0.15 sec./ OFF: 0.15 sec.)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Longest-range detection
        From approx. 500 +/- 50 to 1000 +/- 100 mm (19.7 +/- 2.0 to 39.4 +/- 3.9 in.)        		 Buzzer: Sounds intermittently (ON: 0.15 sec. / OFF: 0.65 sec.)
        Number of bars displayed: 4 (illuminated)        		 Wall

        HINT:

        Ultrasonic waves are used to measure the detection range; however, the detection range may vary depending on the ambient temperature.

    6. Rear corner sonar display and buzzer operation check
      1. When the No. 1 ultrasonic sensors (rear corner sonar) have detected an obstacle, check the display and check that the buzzer sounds.
        OPERATION CONDITION

        Engine Switch Back Sonar or Clearance Sonar Switch Assembly Shift Lever Position Vehicle Speed
        On (IG) On R -

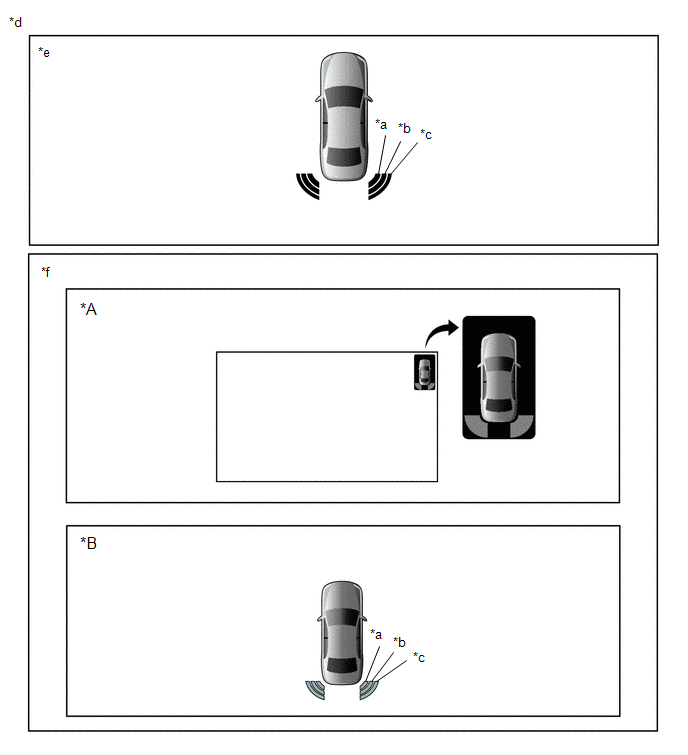

        GTY649217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for 7 Inch Display *B for 10.3 Inch Display
        *a Close-range Detection *b Medium-range Detection
        *c Long-range Detection *d Example (Rear Corner Sonar)
        *e Multi-information Display *f Multi-display
        GTY683091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard

        MULTI-INFORMATION DISPLAY AND BUZZER

        Detection Range During Judgment Obstacle
        Close-range detection
        Within approx. 300 +/- 50 mm (11.8 +/- 2.0 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (blinking)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 300 +/- 50 to 450 +/- 50 mm (11.8 +/- 2.0 to 17.7 +/- 2.0 in.)        		 Buzzer: Sounds intermittently (ON: 0.075 sec. / OFF: 0.075 sec.)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 450 +/- 50 to 600 +/- 50 mm (17.7 +/- 2.0 to 23.6 +/- 2.0 in.)        		 Buzzer: Sounds intermittently (ON: 0.15 sec. / OFF: 0.15 sec.)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole
        MULTI-DISPLAY AND BUZZER

        Detection Range During Detection Obstacle
        Close-range detection
        Within approx. 300 +/- 50 mm (11.8 +/- 2.0 in.)        		 Buzzer: Sounds continuously
        Color of bars displayed: Red (illuminated)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 300 +/- 50 to 400 +/- 50 mm (11.8 +/- 2.0 to 15.7 +/- 2.0 in.)        		 Buzzer: Sounds intermittently (ON: 0.075 sec. / OFF: 0.075 sec.)
        Color of bars displayed: Yellow (blinking)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 400 +/- 50 to 500 +/- 50 mm (15.7 +/- 2.0 to 19.7 +/- 2.0 in.)        		 Buzzer: Sounds intermittently (ON: 0.15 sec./ OFF: 0.15 sec.)
        Color of bars displayed: Yellow (blinking)        		 60 mm (2.4 in.) diameter pole

        HINT:

        Ultrasonic waves are used to measure the detection range; however, the detection range may vary depending on the ambient temperature.

    7. Rear center sonar display and buzzer operation check
      1. When the No. 1 ultrasonic sensors (rear center sonar) have detected an obstacle, check the display and check that the buzzer sounds.
        OPERATION CONDITION

        Engine Switch Back Sonar or Clearance Sonar Switch Assembly Shift Lever Position Vehicle Speed
        On (IG) On R -

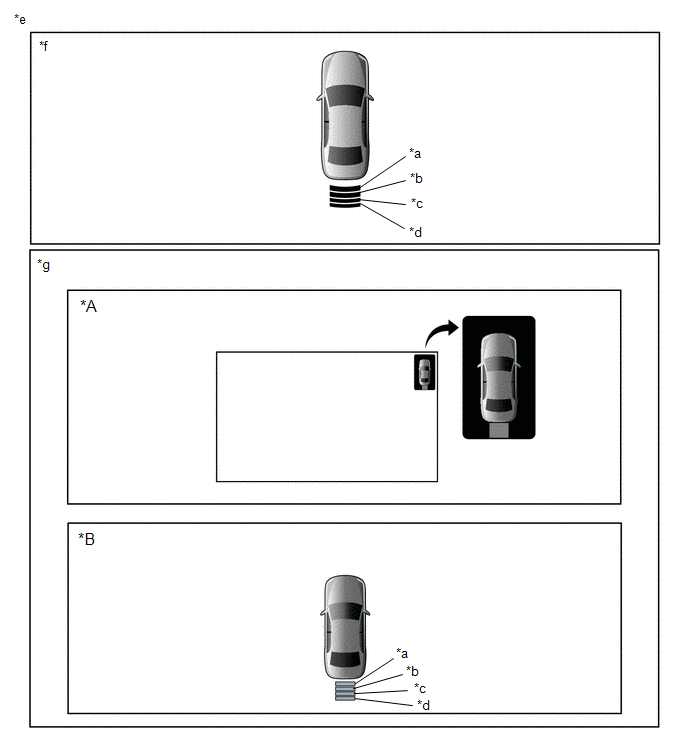

        GTY681906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for 7 Inch Display *B for 10.3 Inch Display
        *a Close-range Detection *b Medium-range Detection
        *c Long-range Detection *d Longest-range Detection
        *e Example (Rear Center Sonar) *f Multi-information Display
        *g Multi-display - -
        GTY656271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard

        MULTI-INFORMATION DISPLAY AND BUZZER

        Detection Range During Detection Obstacle
        Close-range detection
        Within approx. 350 +/- 50 mm (13.8 +/- 2.0 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (blinking)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 350 +/- 50 to 450 +/- 50 mm (13.8 +/- 2.0 to 17.7 +/- 2.0 in.)        		 Buzzer: Sounds intermittently (ON: 0.075 sec. / OFF: 0.075 sec.)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 450 +/- 50 to 600 +/- 100 mm (17.7 +/- 2.0 to 23.6 +/- 3.9 in.)        		 Buzzer: Sounds intermittently (ON: 0.15 sec. / OFF: 0.15 sec.)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Longest-range detection
        From approx. 600 +/- 100 to 1500 +/- 150 mm (23.6 +/- 3.9 to 59.1 +/- 5.9 in.)        		 Buzzer: Sounds intermittently (ON: 0.15 sec. / OFF: 0.65 sec.)
        Number of bars displayed: 4 (illuminated)        		 Wall
        MULTI-DISPLAY AND BUZZER

        Detection Range During Detection Obstacle
        Close-range detection
        Within approx. 350 +/- 50 mm (13.8 +/- 2.0 in.)        		 Buzzer: Sounds continuously
        Color of bars displayed: Red (illuminated)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 350 +/- 50 to 450 +/- 50 mm (13.8 +/- 2.0 to 17.7 +/- 2.0 in.)        		 Buzzer: Sounds intermittently (ON: 0.075 sec. / OFF: 0.075 sec.)
        Color of bars displayed: Yellow (blinking)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 450 +/- 50 to 600 +/- 100 mm (17.7 +/- 2.0 to 23.6 +/- 3.9 in.)        		 Buzzer: Sounds intermittently (ON: 0.15 sec./ OFF: 0.15 sec.)
        Color of bars displayed: Yellow (blinking)        		 60 mm (2.4 in.) diameter pole
        Longest-range detection
        From approx. 600 +/- 100 to 1500 +/- 150 mm (23.6 +/- 3.9 to 59.1 +/- 5.9 in.)        		 Buzzer: Sounds intermittently (ON: 0.15 sec. / OFF: 0.65 sec.)
        Color of bars displayed: Yellow (blinking)        		 Wall

        HINT:

        Ultrasonic waves are used to measure the detection range; however, the detection range may vary depending on the ambient temperature.

scientia non olet · About LEMON Manuals
