System Diagram [04/2013 - 09/2022]

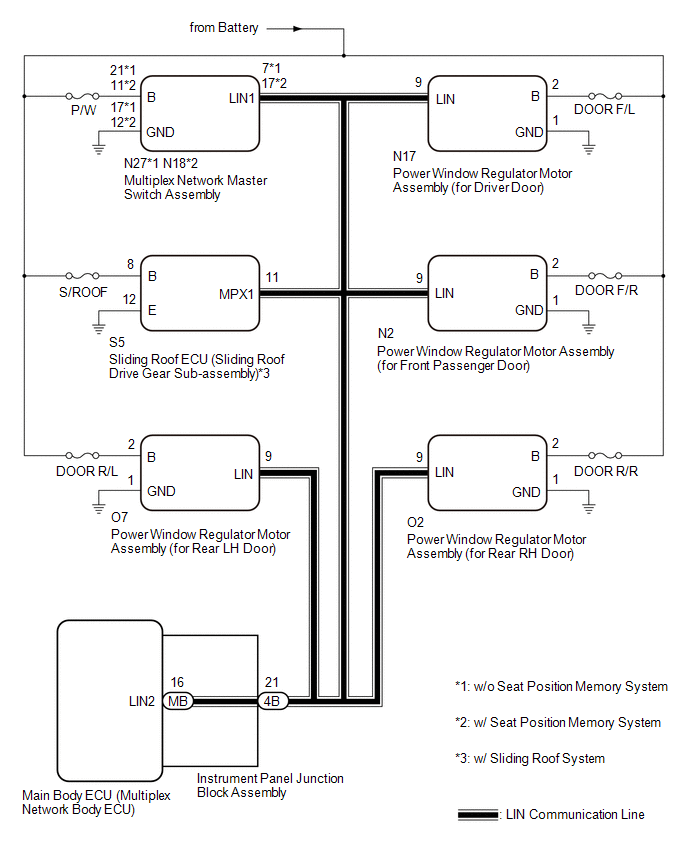

  1. DOOR BUS LINES
    GTY469867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

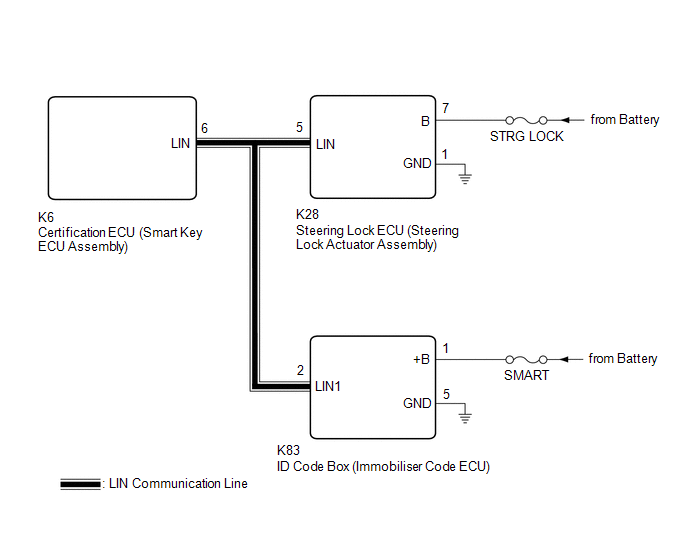

  2. CERTIFICATION BUS LINES
    GTY465654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
