Pre-Collision System - Diagnostics - Introduction
>>
Pre-Collision System
>>

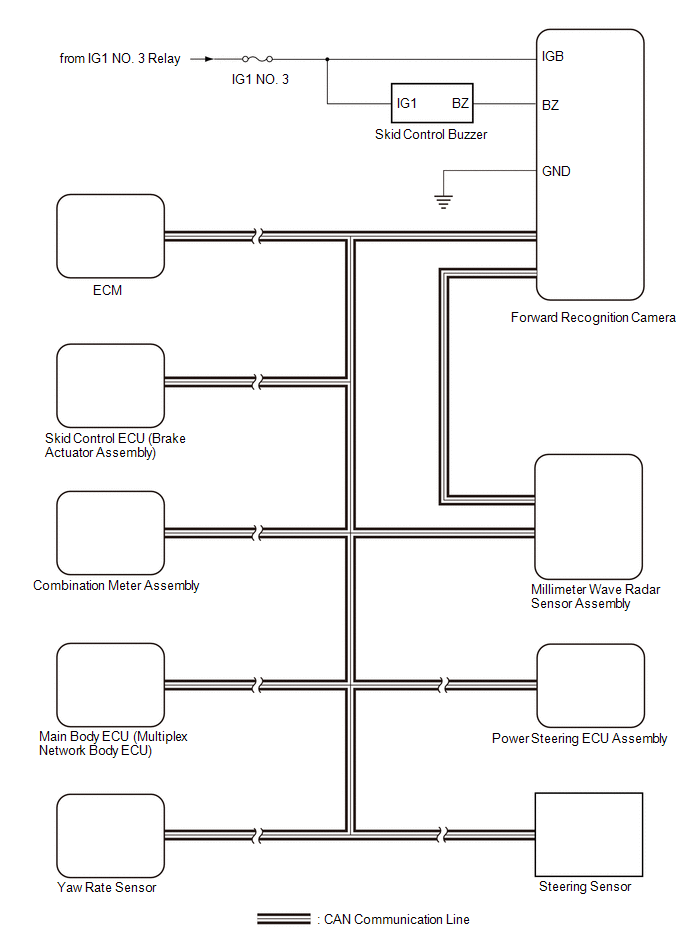

System Diagram [09/2020 - ]
>>
System Diagram [09/2020 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [09/2020 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
