Rear Side Switch Module LIN Communication Malfunction [09/2013 - ]: Procedure

1. Clear the DTC. Refer to DTC CHECK / CLEAR [09/2013 - ] .

NEXT: Go to next step

1. Check for DTC. Refer to DTC CHECK / CLEAR [09/2013 - ] .
   RESULT



   Result	Proceed to
   DTC U0211, U0246, U1130 and U1131 are output	A
   DTC U0211, U0246, U1130 or U1131 is output	B
   No DTC is output	C

B → See step   12

C → See step   13

A: Go to next step

1. Disconnect the r2*1 or S15*2 module switch connector.

   HINT:

   *1: except 4-Passenger with Ottoman

   *2: for 4-Passenger with Ottoman

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the f40 ECU connector.

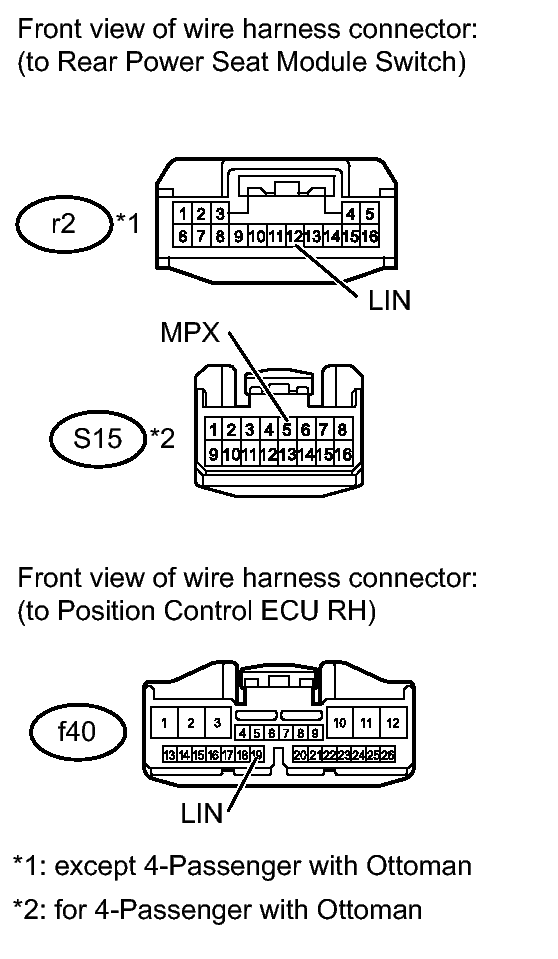

3. Measure the resistance and voltage according to the value(s) in the table below.

   Standard resistance

   EXCEPT 4-PASSENGER WITH OTTOMAN:



   Tester Connection	Condition	Specified Condition
   r2-12 (LIN) - f40-19 (LIN)	Always	Below 1 Ω
   r2-12 (LIN) or f40-19 (LIN) - Body ground	Always	10 kΩ or higher

   FOR 4-PASSENGER WITH OTTOMAN:



   Tester Connection	Condition	Specified Condition
   S15-5 (MPX) - f40-19 (LIN)	Always	Below 1 Ω
   S15-5 (MPX) or f40-19 (LIN) - Body ground	Always	10 kΩ or higher

   Standard voltage

   EXCEPT 4-PASSENGER WITH OTTOMAN:



   Tester Connection	Condition	Specified Condition
   r2-12 (LIN) or f40-19 (LIN) - Body ground	Always	Below 1 V

   FOR 4-PASSENGER WITH OTTOMAN:



   Tester Connection	Condition	Specified Condition
   S15-5 (MPX) or f40-19 (LIN) - Body ground	Always	Below 1 V

   RESULT



   Result	Proceed to
   OK (except Ottoman)	A
   OK (for Ottoman)	B
   NG	C

B → See step   15

C → See step   4

A → See step   14

1. Reconnect the r2*1 or S15*2 module switch connector.

   HINT:

   *1: except 4-Passenger with Ottoman

   *2: for 4-Passenger with Ottoman

2. Clear the DTC. Refer to DTC CHECK / CLEAR [09/2013 - ] .

NEXT: Go to next step

1. Disconnect the f37 ECU connector.
2. Recheck for DTC. Refer to DTC CHECK / CLEAR [09/2013 - ] .
   RESULT



   Result	Proceed to
   DTC U0211, U0246, U1130 and U113 are output	A
   DTC U0211 is output	B

B → REPLACE POSITION CONTROL ECU RH

A: Go to next step

1. Reconnect the f37 ECU connector.
2. Clear the DTC. Refer to DTC CHECK / CLEAR [09/2013 - ] .

NEXT: Go to next step

1. Disconnect the f40 ECU connector.
2. Recheck for DTC. Refer to DTC CHECK / CLEAR [09/2013 - ] .
   RESULT



   Result	Proceed to
   DTC U0211 and U0246 are output	A
   DTC U0211, U0246, U1130 and U1131 are output	B
   DTC U0246 is output	C

B → REPLACE POSITION CONTROL ECU LH

C → REPAIR OR REPLACE HARNESS OR CONNECTOR

A: Go to next step

1. Reconnect the f40 ECU connector.
2. Clear the DTC. Refer to DTC CHECK / CLEAR [09/2013 - ] .

NEXT: Go to next step

1. Disconnect the f8 ECU connector.
2. Recheck for DTC. Refer to DTC CHECK / CLEAR [09/2013 - ] .
   RESULT



   Result	Proceed to
   DTC U0211, U0246, U1130 and U1131 are output	A
   DTC U1130*2 is output	B

B → REPLACE REAR SEAT CLIMATE CONTROL ECU RH

A: Go to next step

1. Reconnect the f8 ECU connector.
2. Clear the DTC. Refer to DTC CHECK / CLEAR [09/2013 - ] .

NEXT: Go to next step

1. Disconnect the f28*1 or f13*2 ECU connector.

   HINT:

   *1: w/ Climate Control Seat System

   *2: w/ Seat Heater System

2. Recheck for DTC. Refer to DTC CHECK / CLEAR [09/2013 - ] .
   RESULT



   Result	Proceed to
   DTC U0211, U0246, U1130 and U1131 are output	A
   DTC U1131* is output	B

B → REPLACE REAR SEAT CLIMATE CONTROL ECU LH

A → REPAIR OR REPLACE HARNESS OR CONNECTOR
