Power Source Circuit [09/2013 - ]: Wiring Diagram

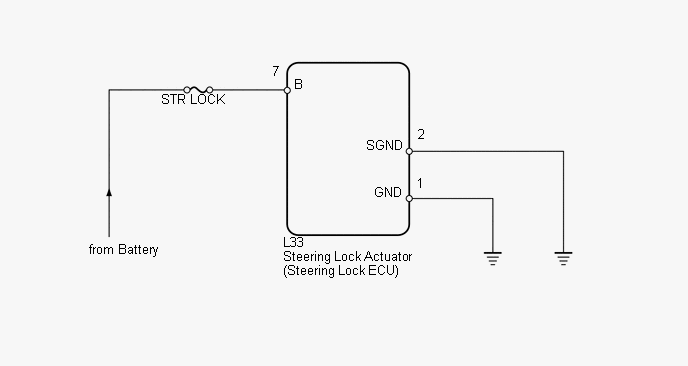

Fig 1: Steering Lock Actuator Wiring Diagram
GTY289370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
