Back Door Entry Lock Function does not Operate [08/2013 - ]: Procedure

1. When the door control switch of the master switch assembly is operated, check that the locked doors unlock.

   OK

   Door locks operate normally.

NG → See step   6

OK: Go to next step

1. When the power back door switch is operated, check that the power back door closes.

   OK

   Power back door is closes.

NG → See step   8

OK: Go to next step

1. Using the Techstream, read the Data List.
   SMART ACCESS



   Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
   Tr/B-Door Lock SW	Back door lock switch / ON or OFF	ON: Back door lock switch pushed OFF: Back door lock switch not pushed	-

   OK

   "ON" (switch is pushed) and "OFF" (switch is not pushed) appears on the screen.

NG → See step   4

OK → REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

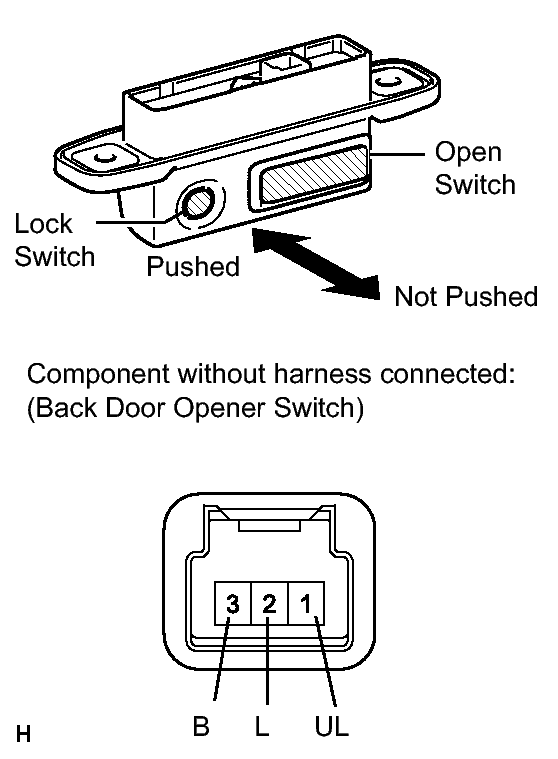

1. Remove the back door opener switch. Refer to REMOVAL [08/2013 - ] .

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   1 (UL) - 2 (L)	Lock switch pushed	Below 1 Ω
   1 (UL) - 2 (L)	Lock switch not pushed	10 kΩ or higher

NG → See step   7

OK: Go to next step

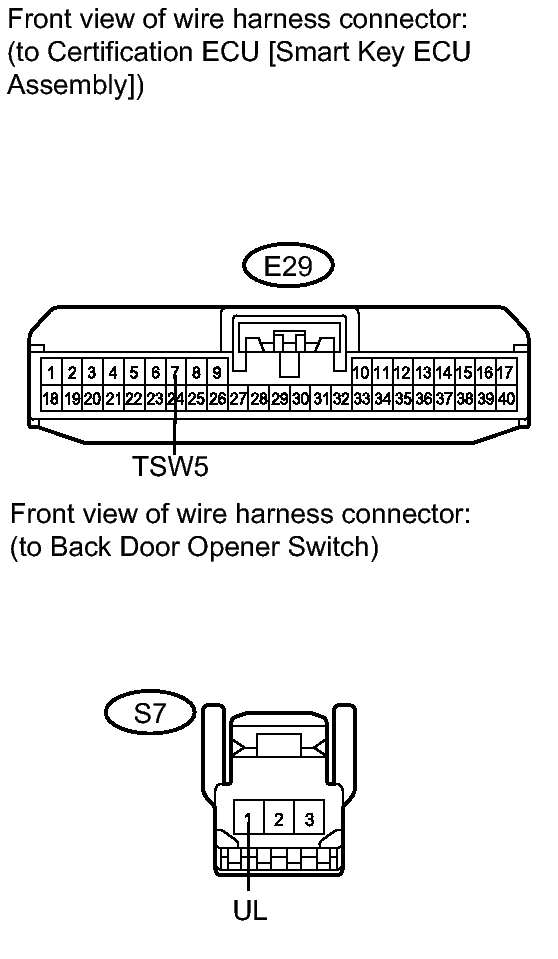

1. Disconnect the E29 ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the S7 switch connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   E29-7 (TSW5) - S7-1 (UL)	Always	Below 1 Ω
   E29-7 (TSW5) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
